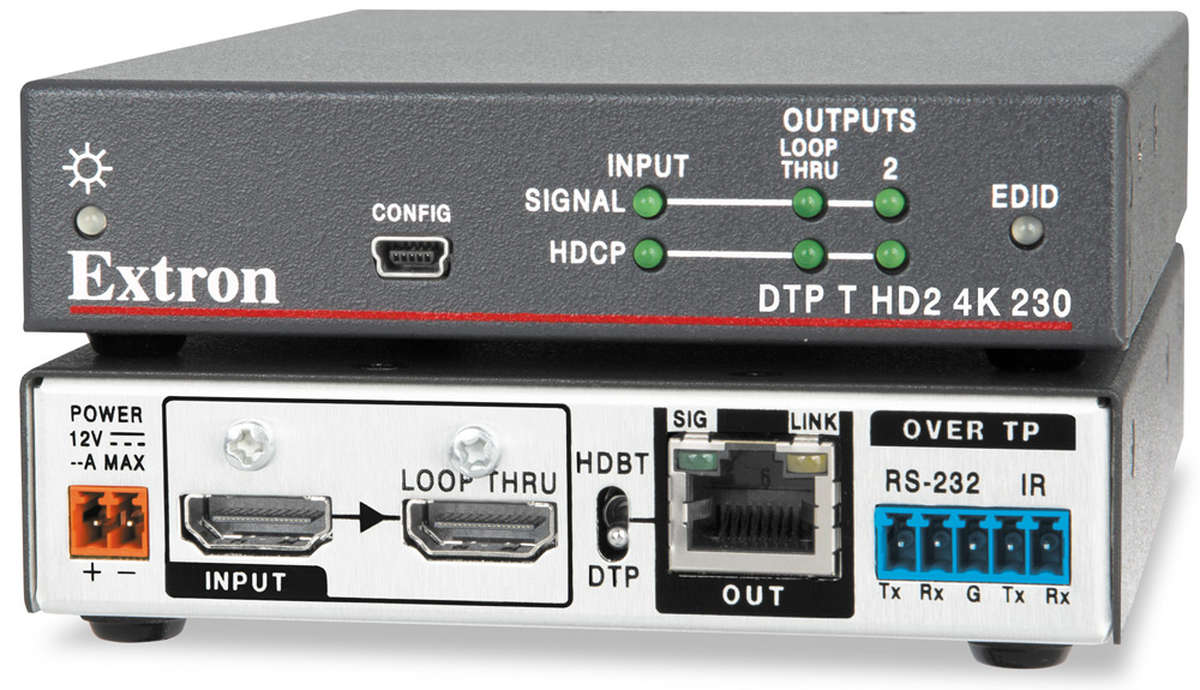

Extron DTP T HD2 4K 230 (60-1491-12)
1:1 HDMI DTP/HDBaseT Twisted Pair Transmitter
1 × HDMI Input; 1 × DTP/HDBaseT output with HDMI loop through; Max 70m at 4K
The Extron DTP T HD2 4K 230 is a transmitter for sending HDMI with embedded audio, and bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP®-enabled products. It provides one HDMI input with loop-through to support local monitoring of digital video, and one DTP output. The DTP T HD2 4K 230 supports video signals at resolutions up to 4K, including 1080p/60 Deep Color. It offers many integrator-friendly features such as EDID Minder®, Key Minder®, bidirectional RS-232 and IR pass-through for remote AV device control, and compatibility with HDBaseT-enabled devices. The compact enclosure size and remote power capability make the DTP T HD2 4K 230 ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.
The HDCP-compliant DTP T HD2 4K 230 enables the reliable transmission of HDMI signals, supporting Deep Colour up to 12-bit, and embedded HD lossless audio formats. The DTP T HD2 4K 230 supports simultaneous transmission of bidirectional RS-232 and IR signals from a control system for AV device control. For added installation flexibility, the transmitter can be remotely powered over the shielded twisted pair cable by a DTP-enabled product. This simplifies installation and allows both devices to share one power supply.
To enhance and simplify integration of sources and displays, and to help ensure optimal system performance, the DTP T HD2 4K 230 features two Extron-exclusive technologies: EDID Minder and Key Minder. EDID Minder manages EDID communication between the display devices and input source to ensure that the correct video formats are displayed reliably. For HDMI signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure the simultaneous distribution of source content to all displays. The DTP T HD2 4K 230 also automatically adjusts Colour bit depth based on the display EDID, preventing Colour compatibility conflicts between source and display.
The DTP output can be configured for compatibility with HDBaseT-enabled displays to send digital video and embedded audio, plus bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable.
The DTP T HD2 4K 230 provides automatic input cable equalization up to 100 feet (30 meters) at 1920x1200 with 8-bit Colour on Extron HDMI Pro Series cables. Input cable equalization restores and reshapes incoming HDMI signals, reducing the need for additional signal conditioning equipment by compensating for weak source signals or signal loss from a long input cable.
The DTP T HD2 4K 230 can be integrated with an Extron DTP CrossPoint® Presentation Matrix Switcher, or other DTP-enabled products to support sources at remote locations. The transmitter is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low profile design of the DTP T HD2 4K 230 allows for discreet placement in lecterns and beneath tables.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron DTP T HD2 4K 230 Key Features
- Transmits HDMI plus control up to 230 feet (70 meters) over a shielded CATx cable - The DTP T HD2 4K 230 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Inputs: One HDMI with buffered input loop-through
- Output: One DTP® 230 twisted pair output on RJ-45
- Supports computer and video resolutions up to 4K, including 1080p/60 Deep Color
- Buffered HDMI input loop-through - The DTP T HD2 4K 230 features an active local HDMI output for local monitor support or system expansion.
- Compatible with CATx shielded twisted pair cable - Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
- DTP output is compatible with HDBaseT-enabled devices - The DTP output can be configured to send video and embedded audio, plus bidirectional RS-232 and IR signals to an HDBaseT-enabled display.
- Supports multiple embedded audio formats - The DTP T HD2 4K 230 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Bidirectional RS-232 and IR pass-through for AV device control - Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Remote power capability - For simplified installation, the transmitter can be remotely powered by a DTP-enabled product over the twisted pair connection.
- HDCP compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
- User-selectable HDCP authorization - Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
- Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Colour up to 12-bit, 3D, and HD lossless audio formats
- Key Minder® continuously verifies HDCP compliance - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to enable simultaneous distribution of a single source signal to two or more displays.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- HDCP authentication and signal presence confirmation - Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs or USB, providing valuable feedback to a system operator or helpdesk support staff.
- HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display - A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
- HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
- Automatic Colour bit depth management - The DTP T HD2 4K 230 automatically adjusts Colour bit depth based on the display EDID, preventing Colour compatibility conflicts between source and displays.
- Automatic input cable equalization to 100 feet (30 meters) at 1920x1200 with 8-bit Colour when used with Extron HDMI Pro cables - Cable input equalization optimizes signal performance for all HDMI signals, helping to ensure pristine image quality throughout DTP Systems. 4K and 2560x1600 @ 60 Hz resolutions are equalized to 50 feet (15 meters).
- Provides +5 VDC, 250 mA power on the local HDMI output for external peripheral devices
- Front panel USB configuration port - Enables easy configuration without having to access the rear panel.
- LED indicators for signal presence, HDCP, and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP port - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- Compatible with all DTP 230 Series receivers and DTP-enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements.
- Rack-mountable 1" (2.5 cm) high, quarter rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
- Includes LockIt® HDMI cable lacing brackets
- Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
