Extron DTP / DTP2 / DTP3 Extenders for HDMI, Control and Ethernet from Extron
![Twisted Pair - Extron DTP Products](images/components/twisted-pair---extron-dtp-products.jpg)
Extron's range of equipment designed to transmit AV and control signals over long distances. DTP2 brings the ability to extend UHD at up to 60Hz with 4:4:4 chroma sampling and HDR and DTP3 does the same for 4K up to 18Gbps.
Extron DTP / DTP2 / DTP3 Extenders for HDMI, Control and Ethernet from Extron
Product | Description | Price | Inc. VAT | ||||||
---|---|---|---|---|---|---|---|---|---|
![]() |
Extron DTP CrossPoint 108 4K | 10×8 Seamless 4K Scaling Presentation Matrix Switcher 6 × HDMI, 4 × DTP/XTP inputs; 4 × HDMI, 4 × DTP/XTP/HDBaseT and Preamp outputs | POA | ||||||
![]() |
Extron DTP CrossPoint 82 4K | 8×2x2 Seamless 4K Scaling Presentation Matrix Switcher 8 × HDMI, 2 × DTP/XTP inputs; 2 × HDMI, 2 × DTP/XTP/HDBaseT outputs | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP DVI 4K 230 Rx | 1:1 DVI-D Twisted Pair Receiver max. 70m @ 1920×1200 or 4K using Shielded Twisted Pair Cable | POA | ||||||
![]() |
Extron DTP DVI 4K 230 Tx | 1:1 DVI-D Twisted Pair Transmitter max. 70m @ 1920×1200 or 4K using Shielded Twisted Pair Cable | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP DVI 4K 330 Rx | 1:1 DVI-D Twisted Pair Receiver max. 100m @ 1920×1200 or 4K using Shielded Twisted Pair Cable | POA | ||||||
![]() |
Extron DTP DVI 4K 330 Tx | 1:1 DVI-D Twisted Pair Transmitter max. 100m @ 1920×1200 or 4K using Shielded Twisted Pair Cable | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP HD DA4 4K 230 | 1:4 DTP/HDBaseT-Lite HDMI distribution amplifier with RS-232/IR/PoC Max. 70m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 4 × DTP/HDBaseT outputs | POA | ||||||
![]() |
Extron DTP HD DA4 4K 330 | 1:4 DTP/HDBaseT HDMI distribution amplifier with RS-232/IR/PoC Max. 100m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 4 × DTP/HDBaseT outputs | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP HD DA8 4K 230 | 1:8 DTP/HDBaseT-Lite HDMI distribution amplifier with RS-232/IR/PoC Max. 70m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 8 × DTP/HDBaseT outputs | POA | ||||||
![]() |
Extron DTP HD DA8 4K 330 | 1:8 DTP/HDBaseT HDMI distribution amplifier with RS-232/IR/PoC Max. 100m at 1080p or 4K; 1 × HDMI input; 1 × HDMI loop and 8 × DTP/HDBaseT outputs | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP R HWP 4K 231 D | 1:1 DTP Receiver for HDMI - Decorator-Style Wallplate with PoE, finished in black 1 × RJ-45 input; 1 × HDMI output; Max. 70m @ 4K | POA | ||||||
![]() |
Extron DTP R HWP 4K 231 D | 1:1 DTP Receiver for HDMI - Decorator-Style Wallplate with PoE, finished in black 1 × RJ-45 input; 1 × HDMI output; Max. 70m @ 4K | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP T DSW 4K 233 | 3:1 HDMI/DisplayPort/VGA DTP/HDBaseT Transmitter 1 × DisplayPort, 1 × HDMI, 1 × RGBHV inputs; 1 × DTP/HDBaseT output; Max. 70m at 1080P or 4K | POA | ||||||
![]() |
Extron DTP T DSW 4K 333 | 3:1 HDMI/DisplayPort/VGA DTP/HDBaseT Transmitter 1 × DisplayPort, 1 × HDMI, 1 × RGBHV inputs; 1 × DTP/HDBaseT output; Max. 100m at 1080P or 4K | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP T HD2 4K 230 | 1:1 HDMI DTP/HDBaseT Twisted Pair Transmitter 1 × HDMI Input; 1 × DTP/HDBaseT output with HDMI loop through; Max 70m at 4K | POA | ||||||
![]() |
Extron DTP T HD2 4K 330 | 1:1Long Distance HDMI Twisted Pair Transmitter with Input Loop-Through 1 × HDMI input; 1 × DTP/HDBaseT output with HDMI loop; Max 100m @ 4K, 10.2Gbps | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP T HWP 4K 231 D | 1:1 DTP/HDBaseT Transmitter for HDMI - Decorator-Style Wallplate finished in white 1 × HDMI, 1 × Stereo Analogue Audio input; Max 70m @ 1080p | POA | ||||||
![]() |
Extron DTP T HWP 4K 331 D | Long Distance DTP Transmitter for HDMI - Decorator-Style Wallplate finished in white Max. 100m | POA | ||||||
Back to Top | |||||||||
![]() |

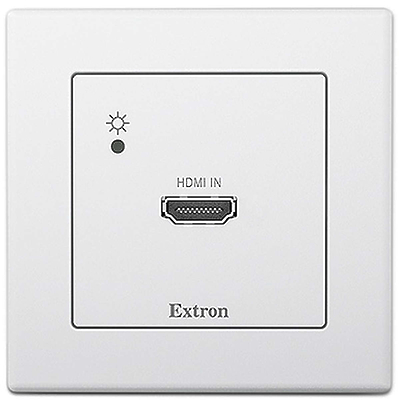

Extron DTP T MK 4K 231 | 1:1 DTP/HDBaseT HDMI Transmitter with PoC for Single Gang MK Junction Boxes 1 × HDMI input; 1 × RJ-45 output; Max. 70m at 4K | POA | ||||||
![]() |
Extron DTP T SW4 HD 4K | 4:1 4K HDMI Switcher with Integrated DTP/HDBaseT Transmitter 4 × HDMI Inputs; 1 × DTP/HDBaseT Output | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP T USW 233 | 3:1 HDMI/VGA to DTP/HDBaseT switcher transmitter 2 × HDMI, 1 × VGA inputs; 1 × DTP/HDBaseT output; Max. 70m at 1080p/WUXGA | POA | ||||||
![]() |
Extron DTP T USW 333 | 3:1 HDMI/VGA to DTP/HDBaseT switcher transmitter 2 × HDMI, 1 × VGA inputs; 1 × DTP/HDBaseT output; Max. 100m at 1080p/WUXGA | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP2 R 212 | 2:1 DTP2/HDMI 2.0 Receiver and Switcher with Audio De-Embedding 1 × DTP2, 1 × HDMI inputs; 1 × HDMI output; Max. 100m at 4K | POA | ||||||
![]() |
Extron DTP2 T 203 | 3:1 HDMI 2.0 / DisplayPort over DTP2/HDBaseT Transmitter and Switcher 2 × HDMI, 1 × DisplayPort inputs; 1 × DTP2/HDBaseT output; Max. Range 100m | POA | ||||||
Back to Top | |||||||||
![]() |

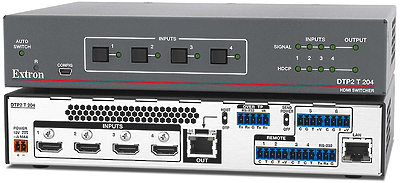

Extron DTP2 T 204 | 4:1 HDMI 2.0 over DTP2/HDBaseT Transmitter and Switcher 4 × HDMI inputs; 1 × DTP2/HDBaseT output; Max. Range 100m | POA | ||||||
![]() |
Extron DTP2 T 211 | 1:1 HDMI 2.0 4K/60 DTP2 Transmitter with Audio Embedding and PoE 1 × HDMI input; 1 × DTP2 RJ45 output; Max. 100m @ 4K | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP2 T 212 | 2:1×2 4K/60 HDMI 2.0 Switcher with Integrated DTP2 Transmitter and HDMI Output 2 × HDMI inputs; Mirrored 1 × HDMI, 1 × DTP2/HDBaseT outputs; Max. Range 100m | POA | ||||||
![]() |
Extron DTP3 R 201 | 1:1 4K/60 4:4:4 HDMI 2.0b/RS-232/PoC over DTP3 Receiver with audio de-embedding 1 × DTP3 input; 1 × HDMI, 1 × stereo audio outputs; Max. 100m using Cat6A STP | POA | ||||||
Back to Top | |||||||||
![]() |
Extron DTP3 T 202 | 1:1 4K/60 4:4:4 HDMI 2.0b/RS-232/PoC over DTP3/HDBaseT Transmitter 1 × HDMI input; 1 × DTP3/HDBaseT, 1 × HDMI output; Max. 100m using Cat6A STP | POA | ||||||
![]() |

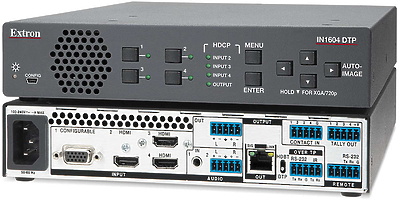

Extron IN1604 DTP | Four Input HDCP-Compliant Scaler with DTP Extension 3 × HDMI, 1 × Universal Analogue inputs, 1 × Twisted Pair HDBaseT compatible output | POA | ||||||
Back to Top | |||||||||
![]() |

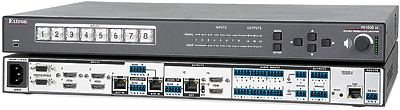

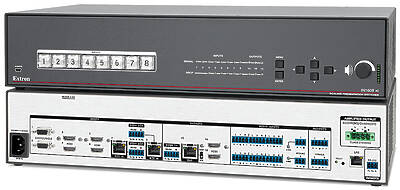

Extron IN1608 xi | 8 Input HDCP-Compliant Scaling Presentation Switcher with DTP/HDBaseT Extension 4 × HDMI, 2 × RGBHV/Component/S-Video/Composite, 2 × DTP 330 in, 2 × HDMI, 1 × DTP 330 out | POA | ||||||
![]() |
Extron IN1806 | 6:1×2 4K/60 Seamless Transition Presentation Switcher 1 × DP, 5 × HDMI 2.0 inputs; 1 × DTP2/HDBaseT, 1 × HDMI 2.0 outputs; Auto switching | POA | ||||||
Back to Top | |||||||||
![]() |
Extron MPS 602 MA | 6:1 Digital/Analogue Presentation Switcher with HDMI or DTP output 3 × HDMI, 2 × RGBHV, 1 × DTP, 5 × stereo audio inputs; 1 × HDMI, 1 × DTP, 1 × RGBHV outputs; 100 Watt 70V Mono Amp | POA | ||||||
![]() |
Extron XTP T USW 103 4K | 3:1×2 4K Multi-Format HDMI, DP and VGA Switcher with HDMI Output and Integrated XTP Transmitter 1 × HDMI, 1 × DisplayPort, 1 × VGA inputs; 1 × HDMI, 1 × XTP with 26w power output | POA | ||||||
Back to Top |
