Extron DTP DVI 4K 230 Rx (60-1272-13)

1:1 DVI-D Twisted Pair Receiver

max. 70m @ 1920×1200 or 4K using Shielded Twisted Pair Cable

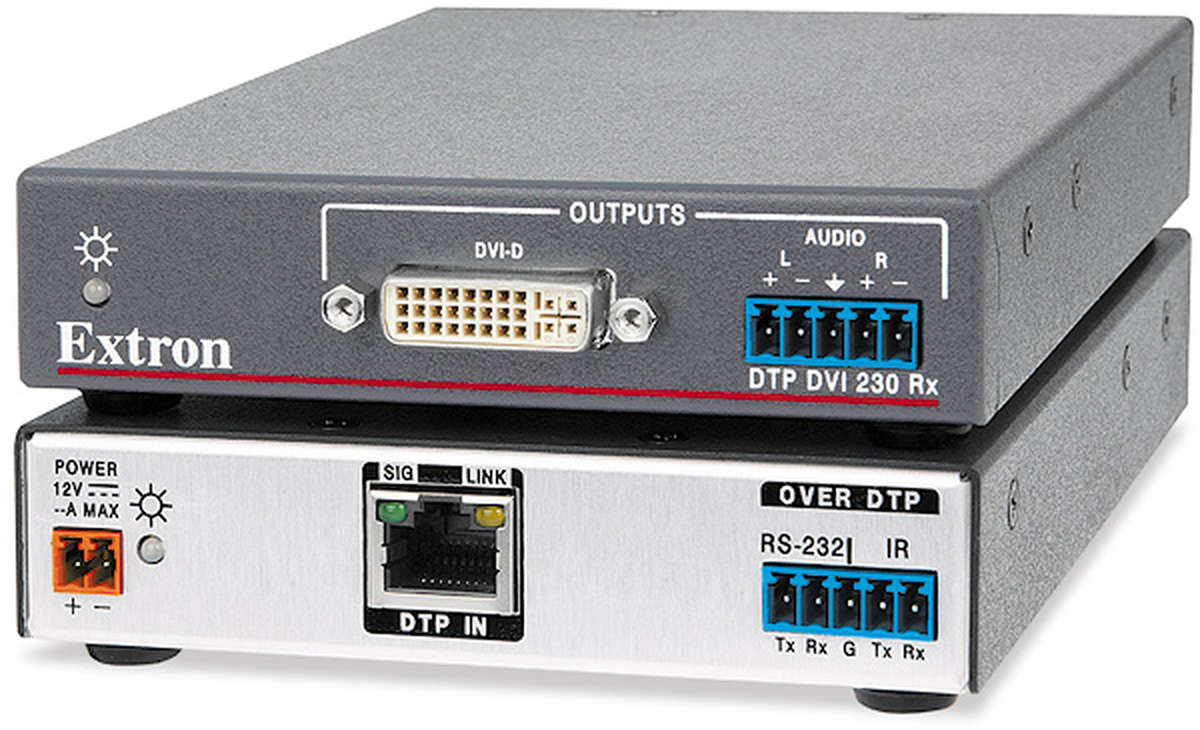

Extron DTP DVI 4K 230 Rx 60-1272-13 product image

For pricing and configuration options please call or email us.

The Extron DTP DVI 230 Rx is a digital twisted pair receiver that works with Extron DTP 230-enabled products for the transmission of DVI-D video, audio, and bidirectional RS-232 and IR signals over a single CATx cable. It provides an economical and effective means for extending single link DVI-D or HDMI signals. In addition, the DTP DVI 230 Rx accepts pass through analog stereo audio signals from a DTP 230-enabled product over the same twisted pair cable. It is capable of receiving 1920x1200, 1080p/60 Deep Color, and 2K signals up to 230 feet (70 meters). The compact enclosure size and remote power capability make the DTP DVI 230 Rx ideal for discreet placement in lecterns, behind flat-panel displays, or wherever needed to meet application requirements.

The DTP DVI 230 Rx enables the reliable transmission of DVI-D signals, and is fully compatible with HDMI signals when used with the appropriate DVI-HDMI adapters from Extron. The twisted pair receiver can extend HDMI signals, supporting Deep Color up to 12-bit, CEC pass-through, and embedded HD lossless audio formats. In addition, DDC communication of EDID and HDCP is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The DTP DVI 230 Rx also supports direct pass through of stereo analog audio from a DTP 230-enabled matrix switcher, switcher, or signal processor. The analog stereo audio signal is sent over the same twisted pair cable as the DVI-D and control signals, eliminating the need for a separate cable run to support analog audio at the receiver.

The twisted pair receiver provides other convenient, integrator-friendly features designed to help simplify installation. The DTP DVI 230 Rx supports simultaneous transmission of bidirectional RS-232 and IR signals from a control system for AV device control. Also, the receiver can be remotely powered over the twisted pair cable by a DTP 230-enabled product, allowing both devices to share one power supply.

The DTP DVI 230 Rx can be integrated with an Extron DTP CrossPoint® 84 Presentation Matrix Switcher, or other DTP 230-enabled products to support outputs at remote locations. The receiver is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low profile design of the DTP DVI 230 Rx allows for discreet placement in lecterns and behind flat-panel displays.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Extron DTP DVI 4K 230 Rx Key Features

Receives single link DVI-D plus control and analog audio up to 230 feet (70 meters) over a single CATx cable - The DTP DVI 230 Rx provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Input: One DTP 230 twisted pair input on RJ-45
Outputs: One DVI-D, stereo audio on captive screw
Supports computer-video to 1920x1200, HDTV 1080p/60 Deep Color, UHD, and 4K resolutions
Compatible with CATx shielded twisted pair cable - Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Accepts additional analog stereo audio signals - The DTP DVI 230 Rx supports direct pass through of stereo analog audio from a DTP 230-enabled product. Embedded digital audio is not de-embedded from the digital video signal.
Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
HDCP compliant
Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
Bidirectional RS-232 and IR pass-through for AV device control - Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
Remote power capability - For simplified installation, the receiver can be remotely powered by a DTP 230-enabled product over the twisted pair connection.
Compatible with all DTP 230 Series transmitters and DTP 230-enabled products - Enables mixing and matching with desktop and wallplate transmitters, as well as other DTP 230-enabled products to meet application requirements.
LED indicator for signal presence and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
RJ-45 signal and link LED indicators for DTP port - Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
Supports HDMI signals when used with optional Extron DVI-HDMI adapters - Supports HDMI embedded audio and CEC - Consumer Electronics Control signal transmission.
UL 2043 plenum rated - The DTP DVI 230 Rx meets UL 2043 for smoke and heat release for installation within a plenum airspace above a drop ceiling - power supply excluded. Above-the-ceiling placement conceals the receiver to prevent theft, and is convenient for installing equipment when space inside the room is limited.
1" (2.5 cm) high, quarter rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
Energy-efficient external universal power supply included with Tx models, part # 70-775-01 - Provides worldwide compatibility, low power consumption, and reduced operating costs.
