WyreStorm MX-0808-H2A-MK2
8×8 4K HDMI Matrix Switcher with output down scaling
8 × HDMI inputs; 8 × HDMI outputs; Max Bandwidth 18Gbps 4K/60 4:4:4
Availability: In stock
WyreStorm MX-0808-H2A-MK2
The MX-0808-H2A-MK2 is a welcome refresh to the powerful line of H2A pure HDMI switchers. The MK2 is familiar on the surface but has a host of improvements and added features. To start, the HDMI outputs now feature 4K > 1080p downscalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also now support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu, etc. to an external audio system. Analogue audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.
SCALERS
Each of the 8 outputs on the MK2 feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
AUDIO DE-EMBED
Featuring balanced Analogue and a digital S/PDIF, easily de-embed audio from either the HDMI inputs or ARC to a secondary audio distribution system without the need for external adapters or converters.
ARC SUPPORT
All 8 HDMI outputs support Audio Return Channel from smart TVs apps like Netflix, Prime Video, Hulu, etc.….The ARC audio can then be sent through either the digital S/PDIF or balanced Analogue outputs to an AVR or stereo amp.
2160P 4:4:4
As a standard requirement with the latest WyreStorm products, the MK2 supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.
5 YEAR WARRANTY
This WyreStorm Pro AV product comes with a 5 Year Warranty
WyreStorm MX-0808-H2A-MK2 Key Features
- Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K/60 4:4:4 video content
- Pair with WyreStorm HAOC cables to send uncompressed HDMI video up to 50 meters.
- Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
- Balanced Analogue and digital S/PDIF audio de-embed for distributing audio to an amplifier or DSP
- Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
- Output downscaling controlled intuitive web UI or API commands
- Automatic or manual CEC power triggering of displays through HDMI outputs via API. Allows custom CEC commands to expand compatibility with displays.
- Audio Return Channel supported on all 8 outputs allowing up to 5.1 audio from smart TV apps to be distributed to external audio systems such as an AVR or stereo amplifier.
- Supports AV Mute for enabling disabling HDMI outputs per zone
- API triggered standby mode puts unit into low power state during downtime
- EDID Management through API or front panel buttons
- 1U 19” chassis for convenient installation into standard equipment racks
WyreStorm MX-0808-H2A-MK2 Downloads
WyreStorm MX-0808-H2A-MK2 Specifications
Connectivity |
|
| Inputs | 8 × HDMI In |
| Outputs | 8 × HDMI Out |
| 8 × 5-pin Balanced Analogue Audio | |
| 8 × S/PDIF Digital Audio | |
| Audio Formats | 2ch PCM |
| Multichannel: LPCM and Up to DTS-X and Dolby Atmos | |
Resolution and Max Cable Length
| Video Resolutions | Distance |
|---|---|
| 1920 × 1080p @60Hz 16bit | 7m |
| 3840 × 2160p @60hz 10bit 4:2:2 HDR10/10+ | 5m |
| 3840 × 2160p @60hz 12bit 4:2:0 Dolby Vision | 5m |
| 3840 × 2160p @50hz 10bit 4:2:2 HLG | 5m |
| 4096 × 2160p @60hz 8bit 4:4:4 | 5m |
| Supported Standards | DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2020 |
| Maximum Pixel Clock | 600MHz |
Communication and Control |
|
| HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC (display power trigger) |
| RS-232 | 1x 3-pin Phoenix for API control |
| Lan | 1x 8-pin RJ45 for API control |
Mechanical |
|
| Power Supply | 100~240V AC 50/60Hz AC |
| Max Power Consumption | 60W |
| In the Box | 1x MX-0808-H2A-MK2 Matrix |
| 1 × AC Power Cord (US/UK/EU/AU) | |
| 8 × 3.5mm 5-Pin Terminal Block | |
| 1 × 3.5mm 3-Pin Terminal Block | |
| 1 × IR Remote (CR2025 Battery not Included) | |
| 2 × Matrix Mounting Brackets with screws | |
| 1 × Quickstart Guide (this document)Environmental | |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing |
| Maximum Btu | 205 BTU/hr |
Dimensions & Weight |
|
| Rack Units/wall Box | 1U |
| Height | 43.5mm/1.72in |
| Width | 440mm/17.33in |
| Depth | 300mm/11.82in |
| Weight | 3.66kg/8.07lbs |
Regulatory |
|
| Safety And Emission | CE, FCC, RoHS, RCM, EAC |

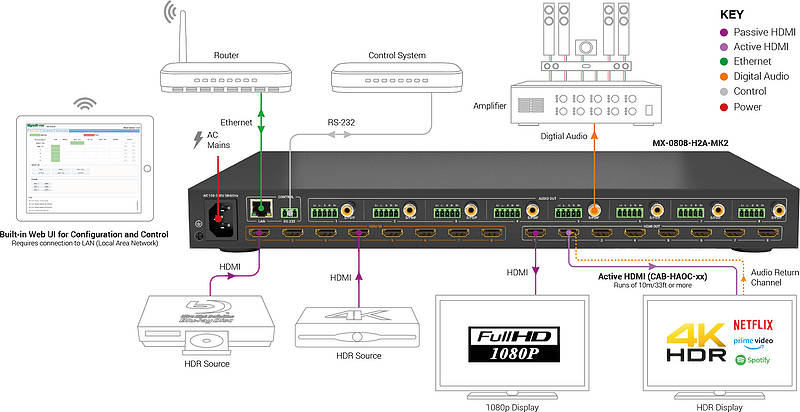

WyreStorm MX-0808-H2A-MK2 Usage Diagram
WyreStorm MX-0808-H2A-MK2 Optional Cables
| Description | Length | Price | Inc. VAT | |
| WyreStorm EXP-4KUHD-0.5 High-speed 18Gbps 4K HDMI with HDR support | 0.5m | £13 | £15.60 | |
| WyreStorm EXP-4KUHD-1.0 High-speed 18Gbps 4K HDMI with HDR support | 1.0m | £15 | £18.00 | |
| WyreStorm EXP-4KUHD-2.0 High-speed 18Gbps 4K HDMI with HDR support | 2.0m | £17 | £20.40 | |
| WyreStorm EXP-4KUHD-3.0 High-speed 18Gbps 4K HDMI with HDR support | 3.0m | £22 | £26.40 | |
| WyreStorm EXP-4KUHD-5.0 High-speed 18Gbps 4K HDMI with HDR support | 5.0m | £45 | £54.00 | |
| WyreStorm CAB-HAOC-10 24Gbps Active Optical HDMI (2K/4K/5K; HDR-10, HDR-10+; ARC; HDCP 2.3) | 10.0m | £154 | £184.80 | |
| WyreStorm CAB-HAOC-15 24Gbps Active Optical HDMI (2K/4K/5K; HDR-10, HDR-10+; ARC; HDCP 2.3) | 15.0m | £168 | £201.60 | |
| WyreStorm CAB-HAOC-15-C 24Gbps Active Optical HDMI with detachable head (2K/4K/5K; HDR-10, HDR-10+; ARC; HDCP 2.3) | 15.0m | £186 | £223.20 |
WyreStorm MX-0808-H2A-MK2 Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| WyreStorm MX-0808-SCL | 8 × 8 4K HDMI Scaling Matrix Switcher with Audio De-embedding 7 × HDMI, 1 × USB-C Inputs; 8 × HDMI Outputs; Max 18Gbps, HDR, HLG, Dolby Vision | £2833 | £3399.60 |
| Kramer VS-88H2 | 8 × 8 4K 4:4:4 HDMI 2.0 Matrix Switcher 8 × HDMI inputs; 8 × HDMI outputs; Max. bandwidth 18Gbps | £2838 | £3405.60 |
| Kramer VS-88H2A | 8 × 8 4K 4:4:4 HDMI 2.0 Matrix Switcher with Analogue and Digital Audio Routing 8 × HDMI inputs; 8 × HDMI outputs; Max. bandwidth 18Gbps | £3192 | £3830.40 |
| Kramer VS-88UT | 8 × 8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switcher and Master Room Controller with PoH & Power Amplifier 4 × HDMI, 4 × HDBaseT 2.0 inputs; 6 × HDMI, 2 × HDBaseT 2.0 outputs; Max. bandwidth 10.2Gbps | £4580 | £5496.00 |
| Lightware MMX8x8-HDMI-4K-A-USB20 | 8 × 8 4K HDMI Matrix Switcher with USB 2.0 Switch Hub 8 × HDMI inputs; 8 × HDMI outputs; 4K/UHD support | £5250 | £6300.00 |
| Lightware MX2-8x8-HDMI20-L | 8 × 8 HDMI 2.0 4K Matrix Switcher with Ethernet/RS-232/Button control 8 × HDMI inputs; 8 × HDMI outputs; Max. 4K UHD @ 60Hz 4:4:4, 18Gbps | £6939 | £8326.80 |
| SY Electronics SMS88-18G | 8 × 8 HDMI Seamless Matrix Switcher 8 × HDMI 2.0 inputs; 8 × HDMI 2.0 outputs; Max bandwidth 18Gbps | £3964 | £4756.80 |
