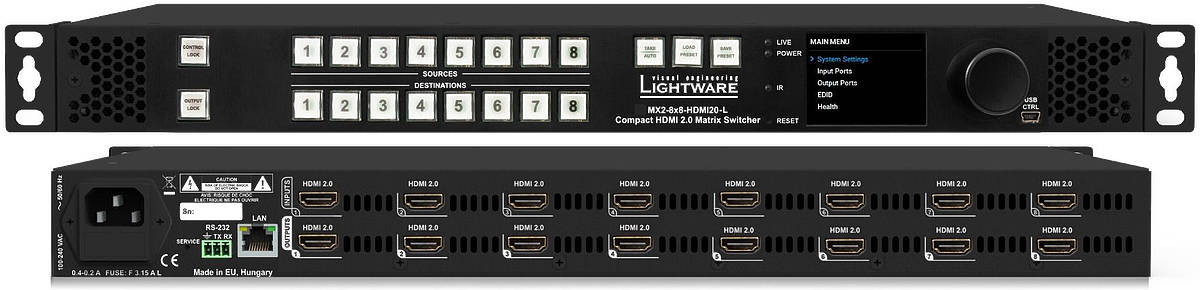

Lightware MX2-8x8-HDMI20-L
8×8 HDMI 2.0 4K Matrix Switcher with Ethernet/RS-232/Button control
8 × HDMI inputs; 8 × HDMI outputs; Max. 4K UHD @ 60Hz 4:4:4, 18Gbps
£7395 (£8874.00 inc. VAT)
Availability: Please Call
Availability: Please Call
Lightware MX2-8x8-HDMI20-L (91310058)
The MX2-8x8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.
Its compact size, silent design and its crosspoint switching front panel keys make it is particularly suitable for live events.
This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.
The MX2-8x8-HDMI20 L matrix switcher supports both HDR and Dolby Vision in the HDMI signal.
Lightware MX2-8x8-HDMI20-L Key Features
- Front to back cooling airflow
- Built-in universal power supply
- Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- Advanced EDID Management
- Front panel LCD menu and buttons for crosspoint control
- Device control via Ethernet (TCP/IP), RS-232 and USB
- CEC support (command injection)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- HDR and Low Latency Dolby Vision support
- Pixel Accurate Reclocking
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- No signal latency, zero frame delay
- Order Code: 91310058
Lightware MX2-8x8-HDMI20-L Downloads
Lightware MX2-8x8-HDMI20-L Specifications
Connectivity |
|
| Power | IEC standard, 110/220V |
| Video Inputs | 8 × HDMI 2.0 |
| Video Outputs | 8 × HDMI 2.0 |
| AV standard | DVI 1.0, HDMI 2.0 |
| HDCP compliance | HDCP 2.2 |
| Colour space | RGB, YCbCr |
| Control | |
| Serial Control | 3-pole Phoenix |
| Ethernet | RJ45 |
| USB | mini USB |
Resolution and Max Cable Length
| Resolution | Length |
|---|---|
| 1920x1080@60Hz 4:4:4 | 40m |
| 3840x2160@30Hz 4:4:4 | 15m |
| 3840x2160@60Hz 4:4:4 | 5m |
Processing |
|
| Routing | 8 input 8 output, non blocking architecture |
| Speed | 18 Gbps per port |
| Video delay | 0 frame |
| Max Resolution | 4096x2048@30Hz (4:4:4) or 4096x2048@60Hz (4:2:0) 8 bits/colour |
| 3840x2160@30Hz (4:4:4) / 3840x2160@60Hz (4:2:0) 8 bits/colour | |
| 1920x1080@60Hz (4:4:4) up to 12 bits/colour | |
| Reclocking | Pixel Accurate Reclocking |
| 3D support | Yes |
| Audio formats | all formats in line with HDMI 2.0 standard |
| Input cable equalization | Yes, +12dB fixed |
| EDID emulation | Yes |
| EDID memory | 144 factory presets, 100 user-programmable |
Mechanical |
|
| Compliance | UL, CE |
| Electrical safety | IEC/EN 62368-1:2014 |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -20 to +70 °C (-4 to +158°F) |
| Storage humidity | 0% to 95%, non-condensing |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | by cooling fans, air flows from front to rear |
| Power supply option | Built-in PSU |
| Supported power source | 100-240V AC, 50~60Hz |
| Power consumption | 10w (no signal), 75w (max signal) |
| Dimensions | 1RU height, 442W×277.5D×43.7H mm |
| Mounting | Rack mountable, removable rack ears |
Lightware MX2-8x8-HDMI20-L Optional Cables
| Description | Length | Price | Inc. VAT | |
| Lightware CAB-HDMI20-AOC1000H 18Gbps hybrid fibre optic cable | 10.0m | £270 | £324.00 | |
| Lightware CAB-HDMI20-AOC1500H 18Gbps hybrid fibre optic cable | 15.0m | £300 | £360.00 | |
| Lightware CAB-HDMI20-AOC2000H 18Gbps hybrid fibre optic cable | 20.0m | £360 | £432.00 | |
| Lightware CAB-HDMI20-AOC3000H 18Gbps hybrid fibre optic cable | 30.0m | £380 | £456.00 | |
| Lightware CAB-HDMI20-AOC5000H 18Gbps hybrid fibre optic cable | 50.0m | £500 | £600.00 | |
| Lightware CAB-HDMI20-PHS060F Premium High Speed HDMI 2.0b flexy cable | 0.6m | £20 | £24.00 | |
| Lightware CAB-HDMI20-PHS100F Premium High Speed HDMI 2.0b flexy cable | 1.0m | £20 | £24.00 | |
| Lightware CAB-HDMI20-PHS200F Premium High Speed HDMI 2.0b flexy cable | 2.0m | £30 | £36.00 |
Lightware MX2-8x8-HDMI20-L Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| Lightware MX2-8x8-HDMI20-CA | 8 × 8 HDMI 2.0 4K Matrix Switcher with Ethernet/RS-232/LCD Menu control 8 × HDMI inputs; 8 × HDMI outputs; Max. 4K UHD @ 60Hza 4:4:4, 18Gbps | £6329 | £7594.80 |
| Kramer VS-88H2 | 8 × 8 4K 4:4:4 HDMI 2.0 Matrix Switcher 8 × HDMI inputs; 8 × HDMI outputs; Max. bandwidth 18Gbps | £3264 | £3916.80 |
| Kramer VS-88H2A | 8 × 8 4K 4:4:4 HDMI 2.0 Matrix Switcher with Analogue and Digital Audio Routing 8 × HDMI inputs; 8 × HDMI outputs; Max. bandwidth 18Gbps | £3351 | £4021.20 |
| SY Electronics SMS88-18G | 8 × 8 HDMI Seamless Matrix Switcher 8 × HDMI 2.0 inputs; 8 × HDMI 2.0 outputs; Max bandwidth 18Gbps | £3964 | £4756.80 |
