Kramer VS-88H2

8x8 4K 4:4:4 HDMI Matrix Switcher
8 x HDMI inputs; 8 x HDMI outputs; Max. bandwidth 18Gbps

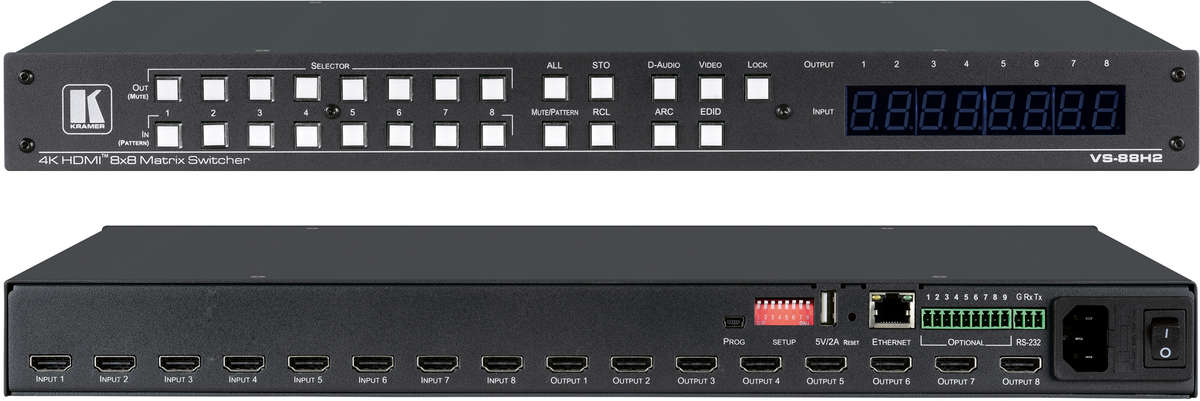

Kramer VS-88H2 8x8 4K 4:4:4 HDMI Matrix Switcher product image
£2999 (£3598.80 inc. VAT)
Availability: In stock

Kramer VS-88H2 (20-00018330)

The Kramer VS-88H2 is a high-performance 8x8 matrix switcher for 4K@60Hz (4:4:4) HDR signals and digital audio routing. It reclocks and equalizes the signals and can route any one of 8 HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-88H2 offers unmatched audio flexibility where any embedded digital audio input can be routed to any digital output in addition to eight ARC sources to produce an equivalent 16x12 audio matrix.

  • High–Performance AV Matrix — Switches 8 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant signals to 8 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant outputs at up to 18G data rate. Featuring Kramer re–Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
  • HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
  • Independent Audio Routing — Any embedded digital audio input can be routed to any digital output, in addition to ARC sources, to produce an equivalent 16x12 audio matrix (8 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 4 ARC outputs).
  • Easy Step–In Collaboration Function — When used with a Kramer Step–In enabled switcher, just plug in your device and press the Step–In button. Your device becomes the active signal on the main display.
  • EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.
  • Flexible Content Protection — Selectable HDCP per input.
  • Quick Access to Common Configurations — Save up to 16 preset configurations.
  • Smart Switching — Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
  • Embedded Pattern Generator — With selectable patterns.
  • Convenient Unit Control and Configuration Options — Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
  • Cost–Effective Maintenance — Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or mini USB.
  • Easy Installation — 19” enclosure for rack mounting in a 1U rack space with included rack ears and universal 100–240V AC power supply.
  • 7 year warranty (Click Here for details)
HDMI
Audio
RS-232 Control
Ethernet Control
4K 4096*2160 and 3840*2160 Resolution
HDR (High Dynamic Range)


Kramer VS-88H2 Specifications

Connectivity

Inputs 8 HDMI On female HDMI connectors
Outputs 8 HDMI On female HDMI connectors
Ports 1 Ethernet: On an RJ–45 connector
1 RS-232: On a 3–pin terminal block connector
1 USB: On a USB type A connector, for powering an external device
1 USB: On a mini USB connector, for firmware upgrade or communication with a PC or serial controller

Video

HDMI Support Deep Colour , 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
Content Protection HDCP 2.2
Max. Output Resolution 4K@60Hz (4:4:4)

User Interface

Control Input/output selection, mute, test pattern, memory, front panel lock, buttons. RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
Indicators Input/output LCD display

Power

Source 100–240V AC 50/60Hz
Consumption 600mA

Environmental Conditions

Operating Temperature 0° to +40°C (32° to 104°F)
Storage Temperature –40° to +70°C (–40° to 158°F)
Humidity 10% to 90%, RH (non–condensing)

Accessories

Included Rack ears, rubber feet, power cord
Product Dimensions 43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
Product Weight 2.4kg (5.2lbs) approx.
Shipping Dimensions 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
Shipping Weight 3.3kg (7.3lbs) approx.

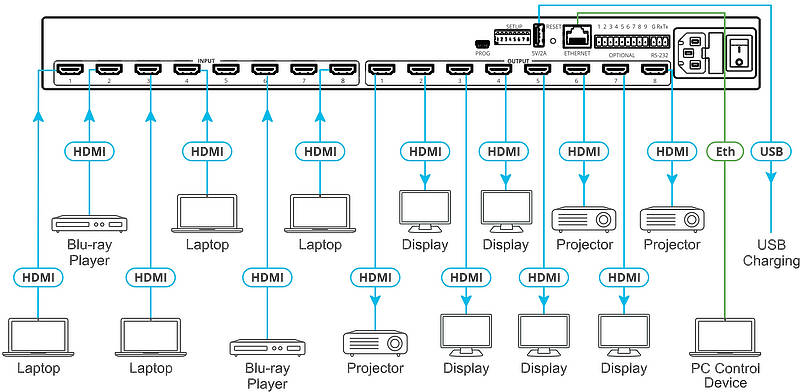

Kramer VS-88H2 Usage Diagram



Kramer VS-88H2 Usage Diagram


Kramer VS-88H2 Optional Cables

DescriptionLengthPriceInc. VAT
Kramer CA-HM-98 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 1080p/60Hz) 30.0m £192 £230.40
Kramer CA-HM-82 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 4K/60Hz 4:2:0) 25.0m £175 £210.00
Kramer CA-HM-15 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 4.6m £65 £78.00
Kramer CA-HM-25 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 7.6m £92 £110.40
Kramer CA-HM-35 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 10.6m £117 £140.40
Kramer CA-HM-50 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 15.2m £142 £170.40
Kramer CA-HM-66 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 20.0m £158 £189.60
Kramer C-HM/HM/PICO/BK-10 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 10.2Gbps 4K/60Hz 4:2:0) 3.0m £13 £15.60
More Cables for the Kramer VS-88H2



Kramer VS-88H2 Possible Alternatives

Product CodeDescriptionPriceInc. VAT
Kramer VS-88H2A 8x8 4K 4:4:4 HDMI Matrix Switcher with Analogue and Digital Audio Routing
8 x HDMI inputs; 8 x HDMI outputs; Max. bandwidth 18Gbps		 £3295 £3954.00
Kramer VS-88UT 8x8 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switcher and Master Room Controller with PoE & Power Amplifier
4 × HDMI, 4 × HDBaseT 2.0 inputs; 6 × HDMI, 2 × HDBaseT 2.0 outputs; Max. bandwidth 10.2Gbps		 £5337 £6404.40
Gefen EXT-UHD600A-88 8x8 4K HDMI matrix switcher with Ultra HDMI support
8xHDMI inputs; 8xHDMI outputs; Max 4K 4:4:4, Max bandwidth 18Gbps		 £3992 £4790.40
Gefen GTB-HD4K2K-848-BLK 8x8 HDMI matrix switcher with Ultra HDMI support finished in black £2598 £3117.60
Hall Research HSM-88-4K-E 8x8 4K HDMI to HDMI Matrix Switcher with IR, RS-232, and IP Control
8xHDMI Inputs; 8xHDMI outputs		 £2616 £3139.20
Lightware MMX8x8-HDMI-4K-A-USB20 8 × 8 4K HDMI Matrix Switcher with USB 2.0 Switch Hub
8 × HDMI inputs; 8 × HDMI outputs; 4K/UHD support		 £4740 £5688.00
Lightware MX2-8X8-HDMI20-Audio-L 8x8 HDMI 2.0 Matrix Switcher
8xHDMI inputs; 8xHDMI outputs; HDCP 2.2, 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps support		 £5815 £6978.00
Lightware MX8x8HDMI-Pro 8x8 HDMI 1.3 with HDCP Matrix Switcher £3375 £4050.00
tvONE MX-6588 8x8 HDMI 2.0a Matrix Switcher
4K2K@60 Hz 4:4:4, HDR, HDCP 2.2; 8 x HDMI inputs; 8 x HDMI outputs		 £2875 £3450.00
