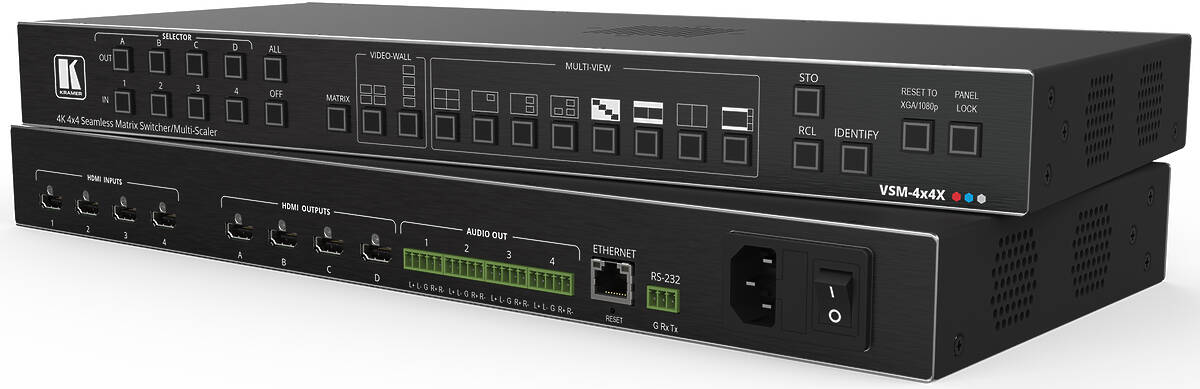

Kramer VSM-4X4X

4×4 Scaling HDMI 2.0 Matrix Switcher, Quad Split and Video Wall processor

4 × HDMI inputs; 4 × HDMI outputs; 2×2 or 1×4 video wall, dual and quad multi-view

£3584 (£4300.80 inc. VAT)
Availability: In stock

Kramer VSM-4X4X (20-80552030)

The Kramer VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad-viewer, or a 4 picture multi-viewer.

The unit allows instantaneous switching between inputs (that is, with a clean, frame-to-frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per-port HDCP and EDID settings, passing of 4 channels of embedded audio, and Analogue stereo de-embedded audio for each of the 4 outputs.

Kramer VSM-4X4X Key Features

  • PixPerfect™ Scaling Technology — Kramer's precision pixel mapping and high quality scaling technology.
  • Matrix Switching Modes — Truly seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).
  • Multiple Aspect Ratio Selections — Full, 4:3, 16:9 and best fit.
  • 4 Preset Memory Locations — For each operation mode for quick access to common IN OUT configurations.
  • Non–Volatile Memory — Saves final settings.
  • Built–in Noise Reduction and Picture Enhancement Features
  • HDMI Support — 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS–HD, as specified in VHDMI 2.0.
  • Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi–view display Split, Side–by–Side, PIP, POP, Stacked or Quad display.
  • Bezel Correction Options — In video wall mode.
  • Constant Output Sync — For all modes of operation.
  • Built–in Video ProcAmp — Color, hue, sharpness, noise, contrast and brightness set individually for each input.
  • Firmware Upgrade — Ethernet based, via a user–friendly software upgrade tool.
  • Advanced EDID management per Input
  • Video inputs and Outputs — 4 HDMI Inputs and 4 Scaled HDMI Outputs.
  • Audio Outputs — 4 balanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
  • 7 year warranty (Click Here for details)
  • Order Code: 20-80552030

Kramer VSM-4X4X Downloads

Seamless Switching
Audio Switching
4K 4096*2160 and 3840*2160 Resolution
4:4:4 Chroma sampling
2K 2048*1080 Resolution

Kramer VSM-4X4X Specifications

Video Processing

Max Bandwidth 18Gbps (6Gbps per graphic channel)
Max Resolution 4K @60Hz (4:4:4) 24bpp resolution
Compliance HDMI 2.0 and HDCP 1.4
Latency Up to 20ms

Controls

Front Panel Output and input selector buttons, system set up buttons (matrix, video wall and multi-view), store and recall buttons, display identify button, reset button and panel lock button

Analogue Audio

Max Level 4.1Vrms
Impedance 500Ω
Bandwidth 20Hz - 20kHz
Crosstalk -114dBV
THD + N 0.005% @1kHz at nominal level
S/n Ratio -89dB, 20Hz - 20kHz
Coupling DC

Mechanical

Power Consumption 100-240V AC, 98VA max
Heat Dissipation 55W (188BTU/hr)
Enclosure Size 19" 1U
Type Aluminium
Cooling Fan Ventilation
Net Dimensions (W×D×H) 43.6cm × 18.3 cm × 4.4cm
(17.2" × 7.2" × 1.7")
Shipping Dimensions (W×D×H) 55cm × 27.6cm × 10.7cm
(21.6" × 10.9" × 4.2")
Net Weight 1.8 kg (4lbs)
Shipping Weight 2.9 kg (6.4lbs) approx
In The Box VSM-4x4x, Power adapter cord
Product Dimensions (W×D×H) 43.6cm × 18.30cm × 4.36cm
19" × 7.20 × 1U
Product Weight 1.9kg (4.1lbs) approx.
Operating Temperature 0° to +40°C (32° to 104°F)
Storage Temperature -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing

Regulatory Compliance

Safety CE, FCC
Environmental RoHs, WEEE

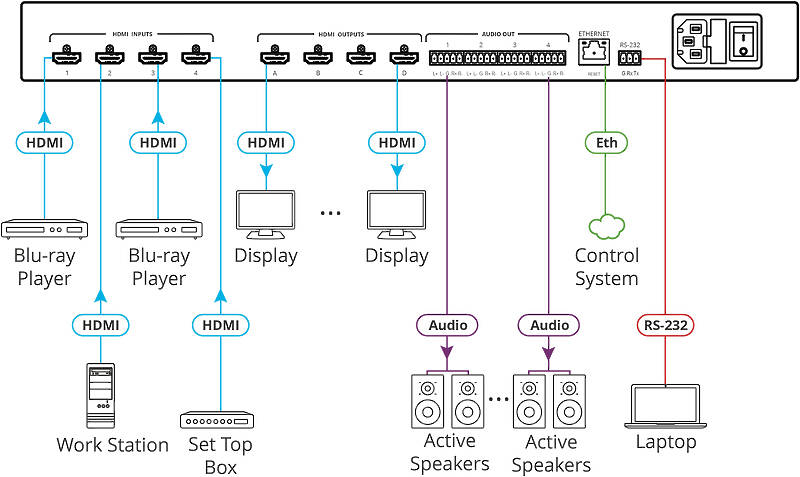

Kramer VSM-4X4X Usage Diagram



Kramer VSM-4X4X Usage Diagram

Kramer VSM-4X4X Optional Cables

DescriptionLengthPriceInc. VAT
Kramer CA-HM-98 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 1080p/60Hz) 30.0m £210 £252.00
Kramer CA-HM-82 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 4K/60Hz 4:2:0) 25.0m £188 £225.60
Kramer CA-HM-15 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 4.6m £53 £63.60
Kramer CA-HM-25 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 7.6m £72 £86.40
Kramer CA-HM-35 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 10.6m £89 £106.80
Kramer CA-HM-50 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 15.2m £119 £142.80
Kramer CA-HM-66 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 20.0m £153 £183.60
Kramer C-HM/HM/PICO/BK-10 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 10.2Gbps 4K/60Hz 4:2:0) 3.0m £15 £18.00
More Cables for the Kramer VSM-4X4X
