Extron P/2 DA2xi (60-506-03)

1:2 Compact VGA-UXGA Distribution Amplifier

1 × HD15 input, 2 × HD15 outputs

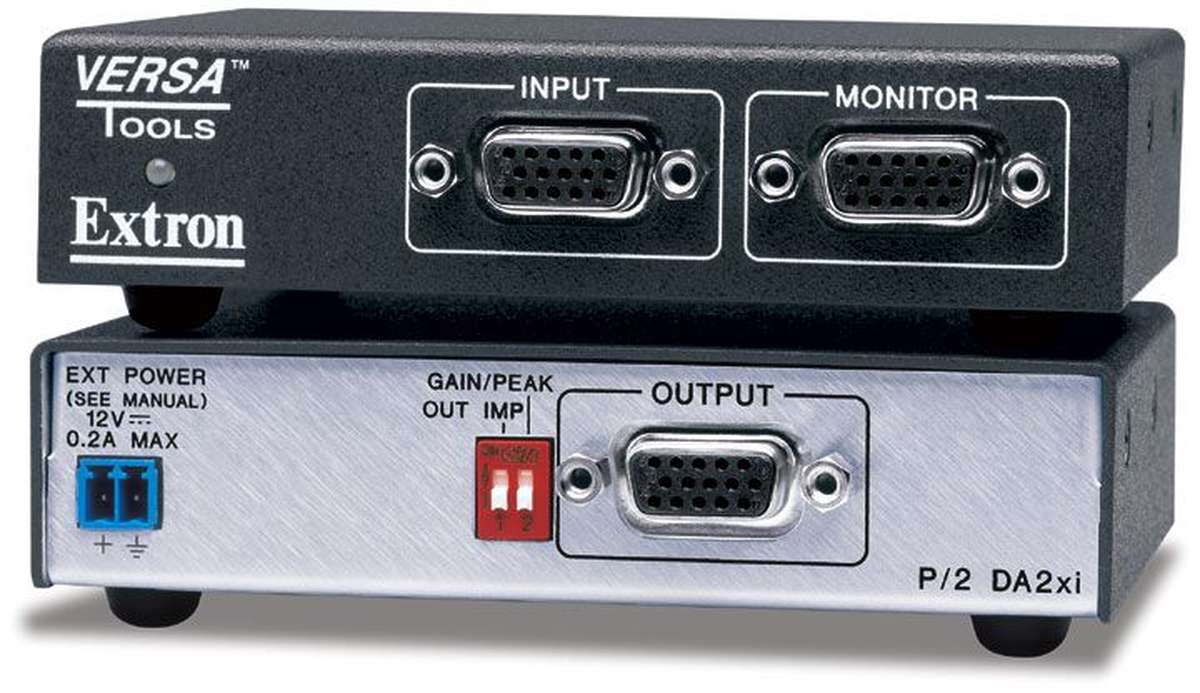

Extron P/2 DA2xi 60-506-03 product image

For pricing and configuration options please call or email us.

The Extron P/2 DA2xi is a one input, two output, high resolution VGA-UXGA distribution amplifier. Available in a compact and rugged metal enclosure, the P/2 DA2xi can be easily installed in small, tight places. It's even portable enough to fit into a briefcase for presenters on-the-go. The P/2 DA2xi offers 350 MHz (-3dB) RGB video bandwidth and is compatible with VGA-UXGA graphic cards, monitors, and projectors. Adjustable gain and peaking are DIP switch-selectable.

The P/2 DA2xi can be powered via pin 9 of a computer's VGA connector. Pin 9 effectively becomes a +5VDC power source, provided the computer has a graphic card that complies with the VESA DDC standard, version 3. Using the included external desktop power supply also enables the P/2 DA2xi to work with older computers.

Extron P/2 DA2xi Key Features

Input: One female 15-pin HD connector
Outputs: Two female 15-pin HD connectors
350 MHz (-3 dB) RGB bandwidth, fully loaded
Compatible with VGA-QXGA resolutions
Gain and peaking controls
DIP-switch selectable input and output sync impedance
Power and source signal indicator
Includes detachable 6' (2 m) male-to-male VGA input cable
ID bits routed to local monitor output
Rack-mountable or portable
External universal energy efficient power supply included, replacement part 70-775-01 Provides worldwide compatibility, low power consumption, and reduced operating costs.
