Unicol VBR-1500X2-PS2-PZX

VS1000 Modular Monitor/TV Trolley
33–70″ / Max. 60kg; VESA 200×200–600×400; Braked Castors

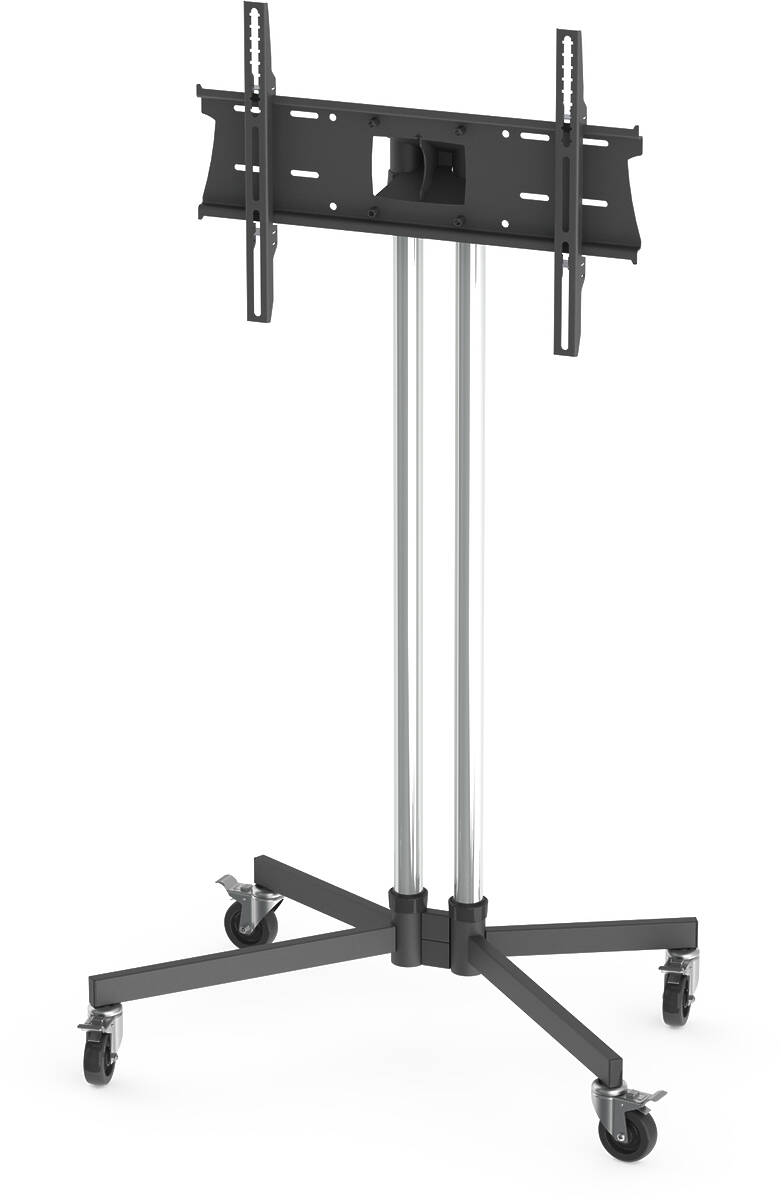

Unicol VBR-1500X2-PS2-PZX VS1000 Modular Monitor/TV Trolley product image

Unicol VBR-1500X2-PS2-PZX Description

The workhorse of the AV industry – with a wide choice of interchangeable parts, easy assembly and disassembly and sheer robustness, VS1000 trolleys are a favoured choice for trade shows, education, broadcast and AV users everywhere. Still preferred by many for its robust design, the original “K” base has 10cm non-marketing rubber tyre wheels and supports up to 105kg.

The Unicol VS1000 user-friendly modular system makes for easy on-site assembly. VS1000 ″mix and match″ components give you the flexibility to reconfigure the unit in the future.

Available in braked (shown here) and unbraked versions.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

VBR “K” base with 10cm braked castors.
Height adjustable from base to 159cm
Twin column cantilever design chosen by commercial video users everywhere.
Choice of PZX1 (VESA up to 600×400) or PZX3 (VESA up to 400×400)
Wide selection of component parts enables stands & trolleys of varying types to be easily assembled.
Trolley, Plinth, or Bolt Down versions available.
Glass or Steel Shelves are available also Locking Cabinets.
Designed to accomodate a single monitor
See entire Unicol VS1000 Range

£296 (£355.20 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol VBR-1500X2-PS2-PZX Specifications

Product Group	Unicol VS1000
Monitor Count	1
Colour	Black/Chrome Columns
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 70″
Screen Orientation	Landscape
Max Load	60.00kg.
Weight Per Monitor	60kg.
VESA Mount Points	200×200 – 600×400
Screen Centre Height	Variable – 1585.00mm
Dimensions	870.0mm width 1660.0mm height 600.0mm depth
Weight	22.30kg.
Warranty	10 Years
Column Centres	110mm

Ideal For

Classrooms & Training Spaces
Offices
Trade Shows
TV Studios and Broadcast

Unicol VBR-1500X2-PS2-PZX Downloads

Instruction Manual

VBR-1500X2-PS2-PZX Component Parts

Product Code	Description
1 × Unicol 1500x2	2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol PS2	Twin Column Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres; Max 80kg)
1 × Unicol PZX1	*Pozimount Non-tilting Wall mount for Monitors/TVs (33–70″ / Max 60kg; VESA 200×200–600×400;150×150mm Mount Centres)
1 × Unicol PZX3	*Pozimount Non-tilting Wall Mount for Monitors/TVs (33–70″ / Max 60kg; VESA 200×200–400×400;150×150mm Mount Centres)
1 × Unicol VBR	VS1000 “K” Braked Wheel Twin Column Monitor Trolley Base (110mm Column Mount Centres)
	*Please choose option or contact us for assistance
