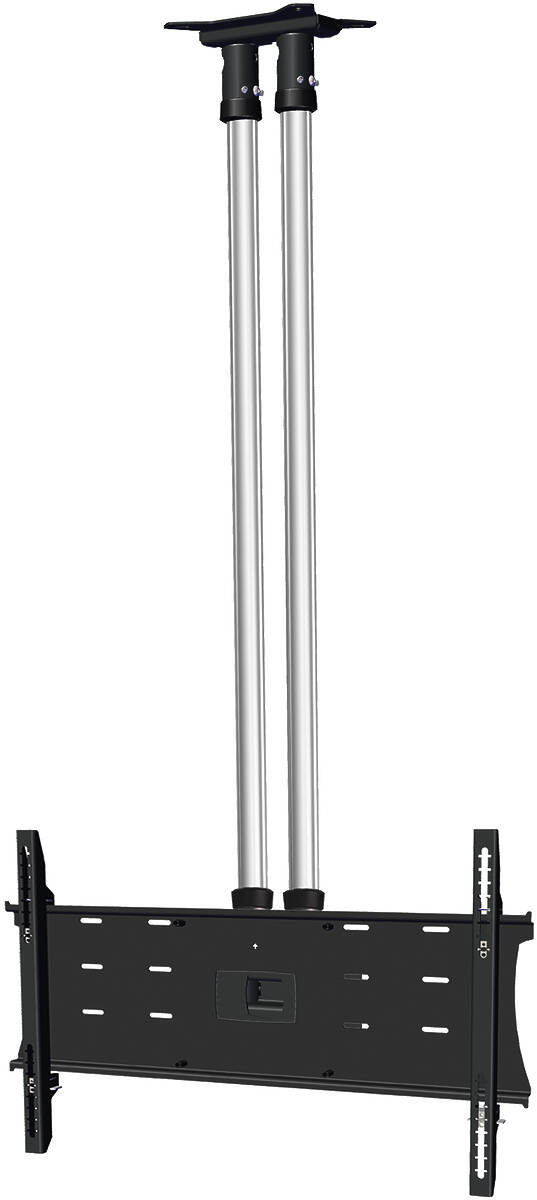

Unicol KP930CB

Monitor Ceiling Mount Kit with 3m Columns
71–110″ / Max 120.00kg; VESA 300×300–1000×600; Tilt

Unicol KP930CB Description

This trade pack combines the necessary ceiling plate, column and PZX9 universal tilting screen mount for a typical single screen suspension installation. The KP930CB comes with a 300cm Unicol chrome column as standard. Ideal for retail, museums, schedule displays and more.

Designed to fit VESA measurements 300×300, 400×300, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 800×400, 1000×400, 800×600 and 1000×600.

Key Features

'Packaged' kit combines the necessary ceiling plate, column and mount for a typical installation.
Ships with CP1 ceiling plate, 3.00m column & Universal screen mount
Fits most monitor makes & models.
Designed to accomodate a single monitor
See entire Unicol Monitor Ceiling Mount Range

£434 (£520.80 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol KP930CB Specifications

Product Group	Unicol Monitor Ceiling Mount
Monitor Count	1
Colour	Sinterflex Black / Chrome
Colour Options	Custom RAL colours available at additional cost
Screen Size	71–110″
Max Load	120kg
VESA Mount Points	300×300–1000×600mm
Ceiling to Monitor Centre	3300.00mm
Dimensions	1070.0mm width 3476.0mm height 293.0mm depth
Weight	35.90kg.
Warranty	10 Years

Ideal For

Exhibitions
Health Care / Clinics
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Restaurants & Cafe's
Retail
Scheduling Displays

Unicol KP930CB Downloads

Instruction Manual

Dimensions

KP930CB Component Parts

Product Code	Description
2 × Unicol 3000C	3000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
1 × Unicol CP8	Twin Column Ceiling Plate with 110mm Centres, Max 200kg
1 × Unicol PZX9	Pozimount Non-tilting Wall Mount for Monitors/TVs (71–110″/ Max 150.00kg; VESA 300×300–1000×600)
