Unicol KP1030CB

Monitor Ceiling Mount Kit with 3m Columns
71–110″ / Max 120.00kg; VESA 400×600–1500×1000

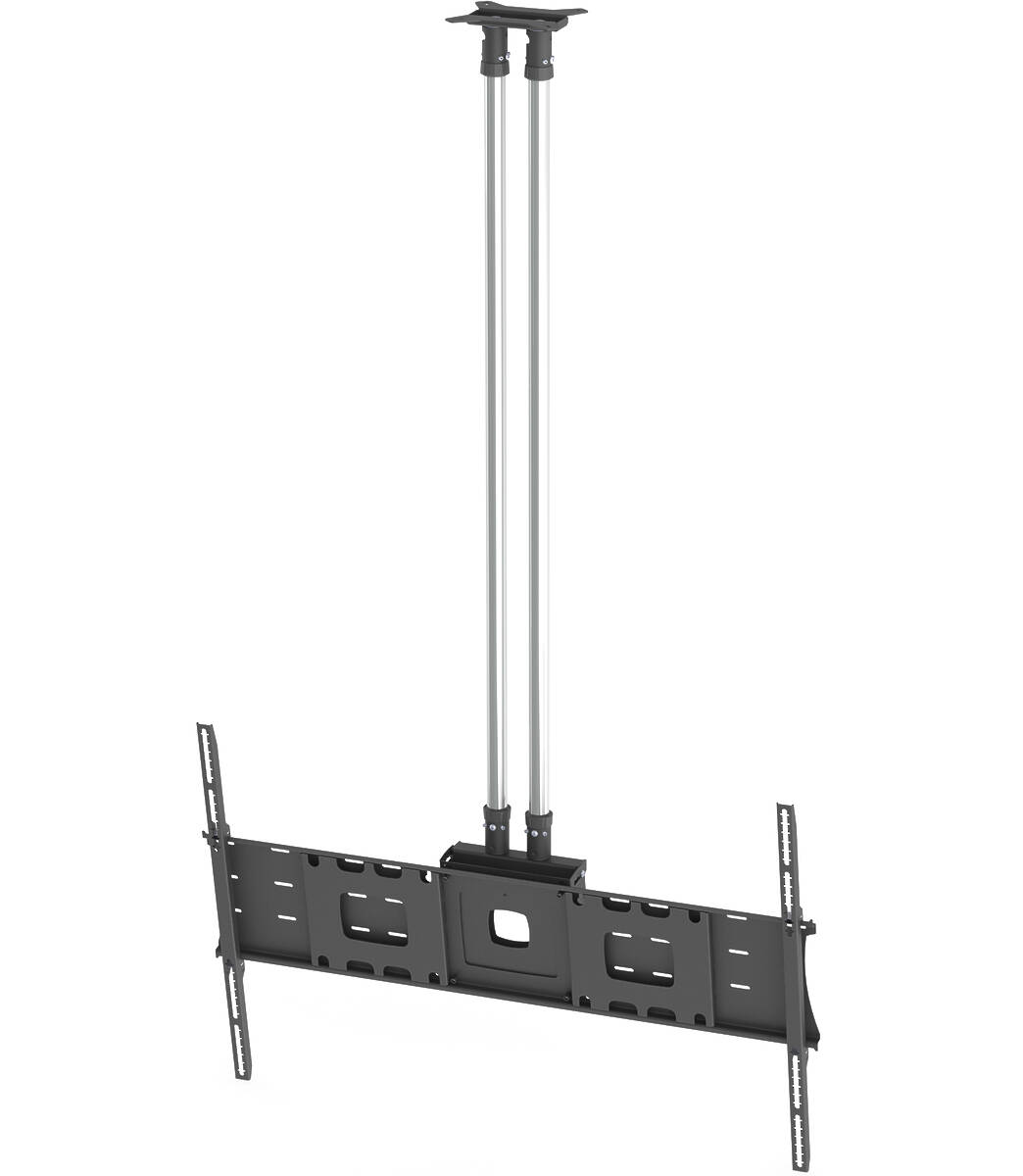

Unicol KP1030CB Monitor Ceiling Mount Kit with 3m Columns product image

Unicol KP1030CB Description

Package Kits that provide simplicity and convenience for large format display suspension

This trade pack combines the necessary ceiling plate, columns and PZX10 universal screen mount for a typical single screen suspension installation. The KP1030CB comes with 3m Unicol twin chrome columns as standard. Ideal for transport and retail environments that may require multiple solutions across a series of stores or as a ready-to-go one-off solution.

Designed to fit VESA measurements 400×600, 800×600, 1000×600, 1000×800, 1200×800, 1000×1000 and 1500×1000.

Key Features

Kit combines the necessary ceiling plate, column and mount for a typical installation.
Fits most monitor makes & models.
Designed to accomodate a single monitor
See entire Unicol Monitor Ceiling Mount Range

£504 (£604.80 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol KP1030CB Specifications

Product Group	Unicol Monitor Ceiling Mount
Monitor Count	1
Colour	Sinterflex Black / Chrome
Colour Options	Custom RAL colours available at additional cost
Screen Size	71–110″
Max Load	120kg
VESA Mount Points	400×600–1500×1000mm
Ceiling to Monitor Centre	3295.00mm
Dimensions	1600.0mm width 3476.0mm height 325.0mm depth
Bracket Tilt	0–10°
Weight	44.90kg.
Warranty	10 Years

Ideal For

Exhibitions
Health Care / Clinics
Hospitality
Lobby / Reception Areas
Museums and Art Galleries
Restaurants & Cafe's
Retail
Scheduling Displays

Unicol KP1030CB Downloads

Instruction Manual

Dimensions

KP1030CB Component Parts

Product Code	Description
1 × Unicol 3000Cx2	2 × 3000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
1 × Unicol CP8	Twin Column Ceiling Plate with 110mm Centres, Max 200kg
1 × Unicol PS9	Twin Column Tilting Suspension Adaptor for Pozimount/Xactmatch Wall Mounts (110mm Column Centres;300×300mm Mount Centres; Max 120.00kg)
1 × Unicol PZX10	Pozimount Non-tilting Wall Mount for Monitors/TVs (71–110″/ Max 150.00kg; VESA 400×600–1500×1000)
