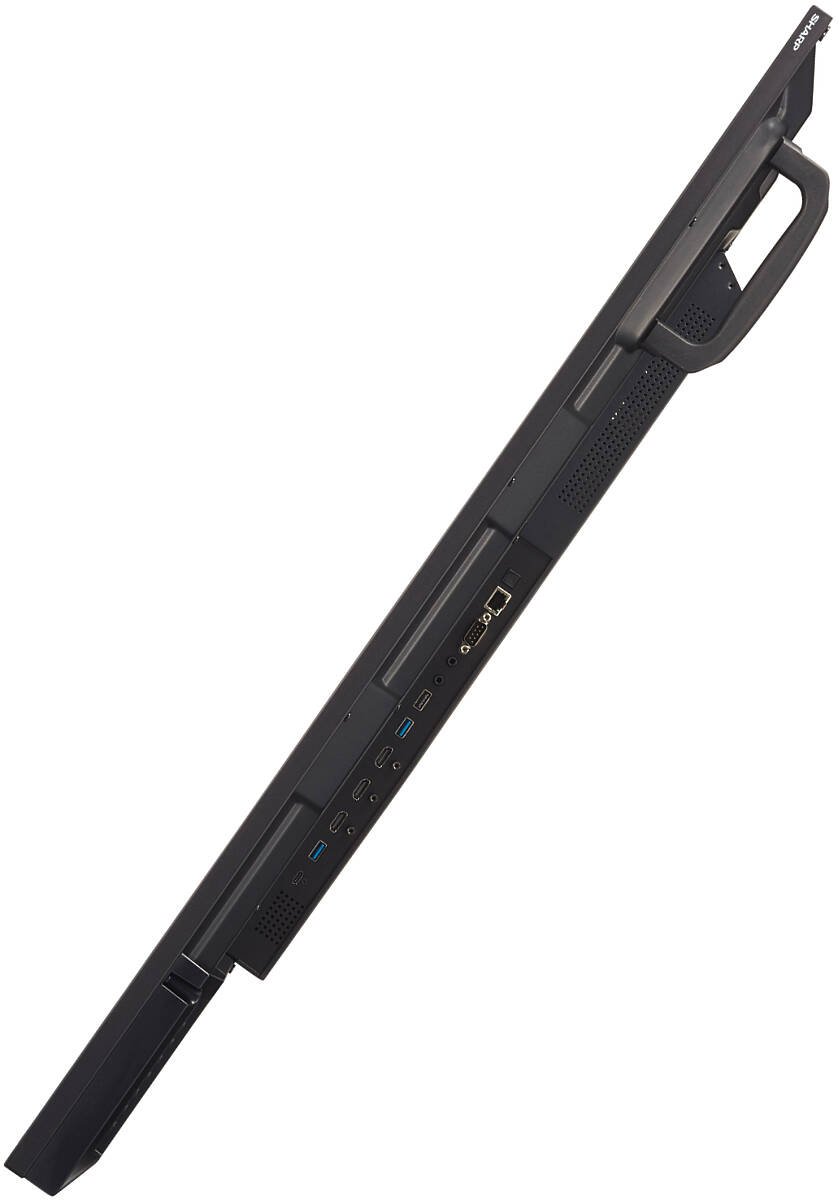

Sharp MultiSync ME752 LED Large Format Display Monitor
Availability: Please Call

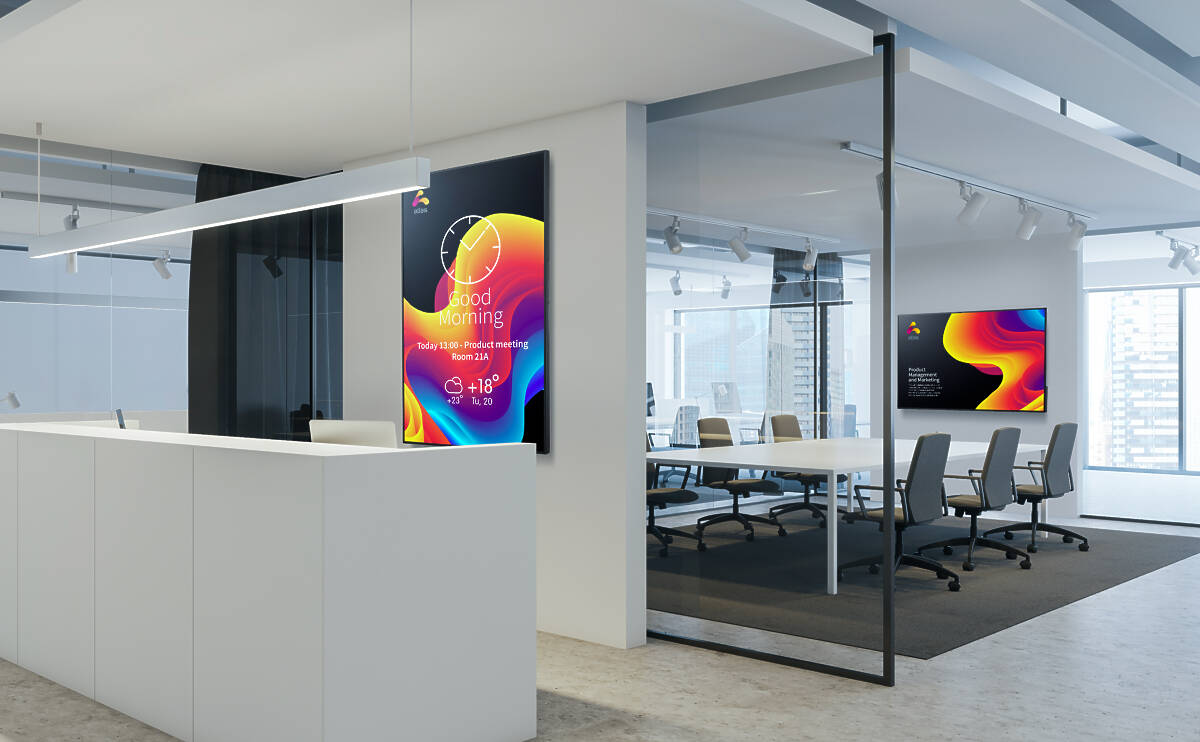

Sharp MultiSync ME752 Suggested Applications
Key Features
- 75" Diagonal IPS with Direct LED backlights Panel
- Seamless connectivity - native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.
- Best readability - aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
- Quick input detection - removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.
- Third-party compatibility - not simply a display, but an out-of-the-box solution, compatible with popular workplace and content management systems through the integrated SoC platform.
- New feature-ready - regular OTA Android OS updates ensure availability of the latest features and system security.
- VESA 800×600; M8 mounting points
- DICOM Support - For accurate medical imaging

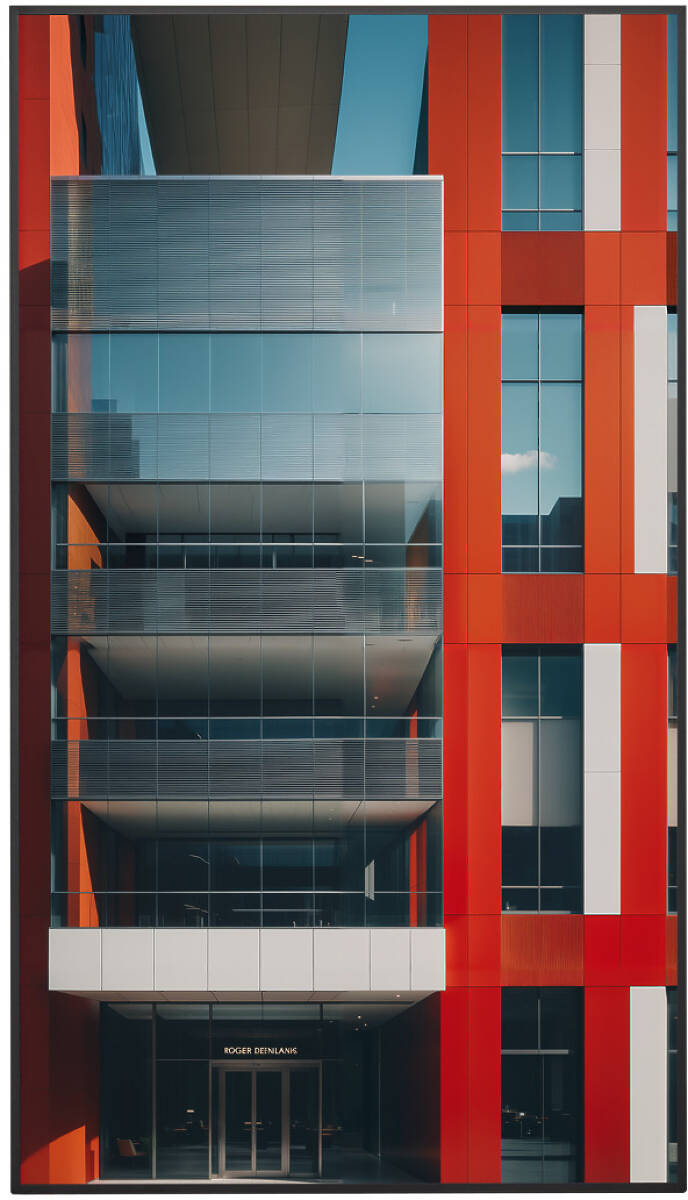

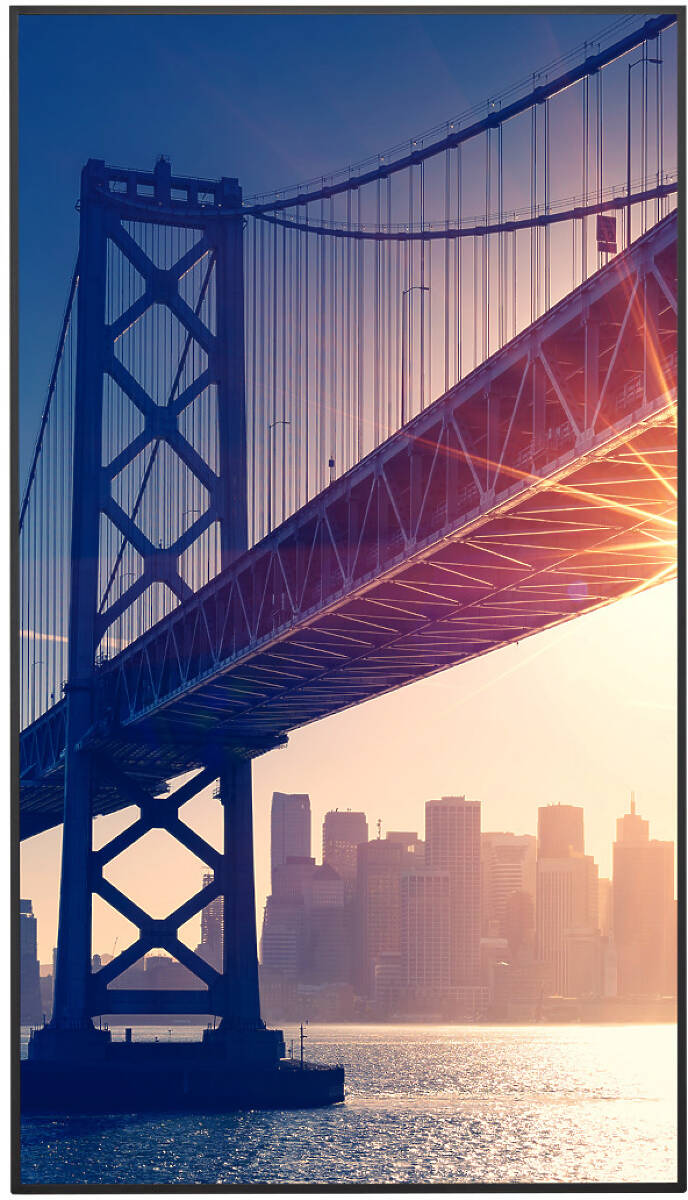

- Landscape/Portrait Mode - The MultiSync ME752 can be installed in either standard landscape or portrait orientation
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Integrated Media Player - Content can be transfered to the display via USB memory stick or network
- Designed for 18/7 use - Warranty covers use up to 18 hours per day
Class-leading performance and value
For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

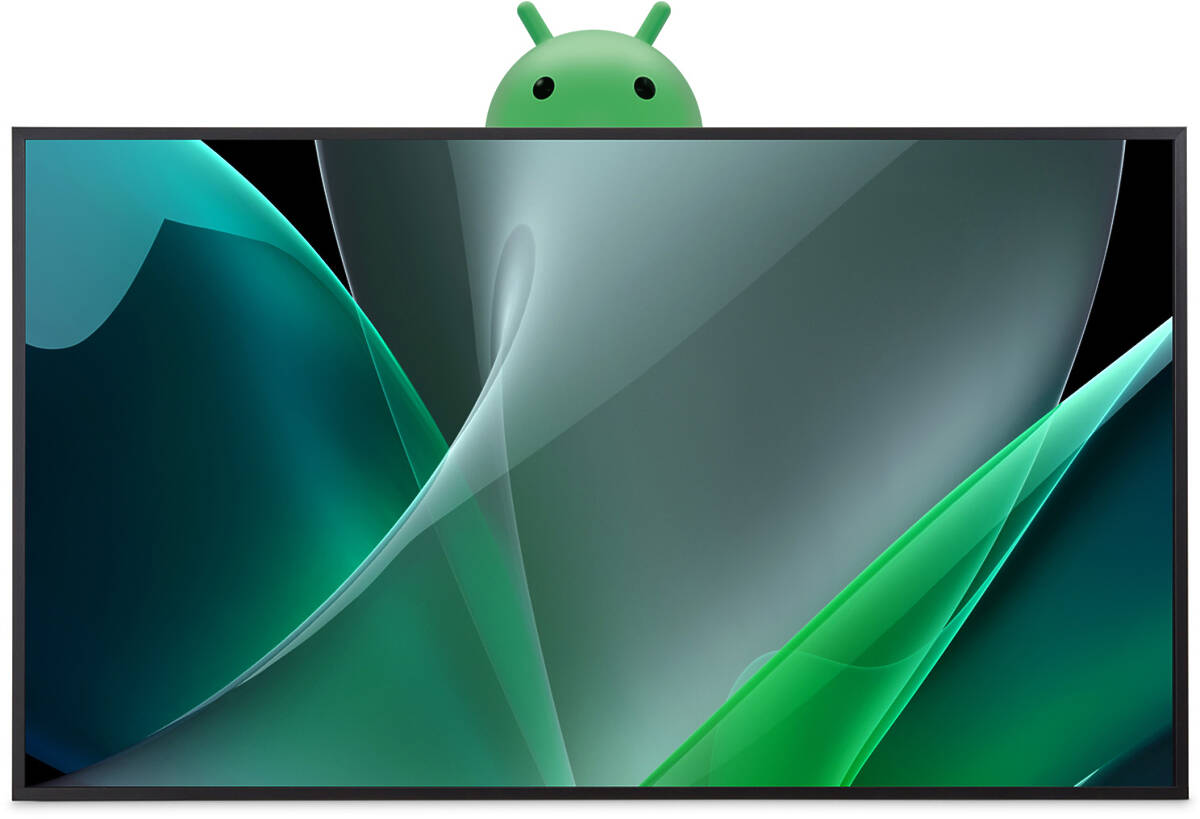

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.
Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync ME series is a class-leading solution for todays workplace challenges, bringing value and professional performance, without compromise.
Sharp MultiSync ME752 Downloads
Sharp MultiSync ME752 Summary |
|
| Manufacturers Part No. | 60005925 |
| Model | Sharp MultiSync ME752 |
| EAN / UPC | 4550556164177 |
| Display Type | IPS with Direct LED backlights |
| Features | DICOM Support Landscape/Portrait Mode LAN Control/Monitoring Integrated Media Player Designed for 18/7 use |
| Diagonal | 75" |
| Native Resolution | 3840×2160 |
| Brightness | 450cd/m2 |
| Contrast | 1,200:1 |
| Colours | 1.073 Billion |
| Horizontal Frequency | 15–135KHz |
| Vertical Frequency | 23–76Hz |

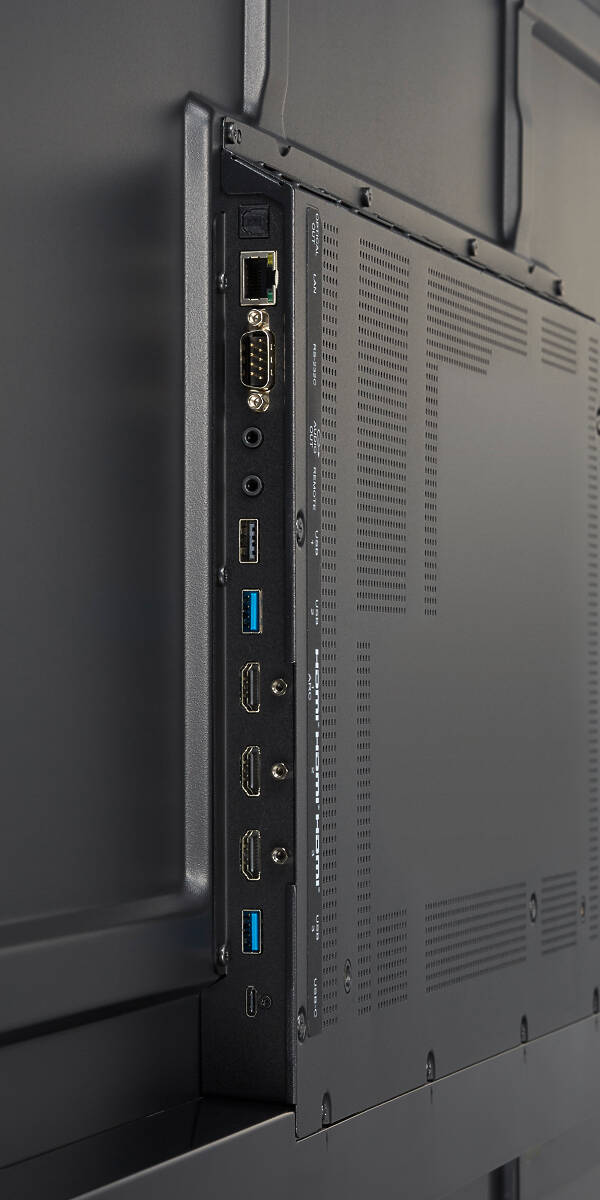

Connectivity |
|
| HDMI | 3 |
| USB-C Video | 1 |
| Audio in | 2 |
| USB | 3 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | Optional |
| Warranty | 3 years warranty incl. backlight; optional 4 or 5 year warranty extension |
| Monitor Dimensions | 168.6 × 96.4 × 6.9cm (w×h×d) |
| Weight | 34.3kg. |

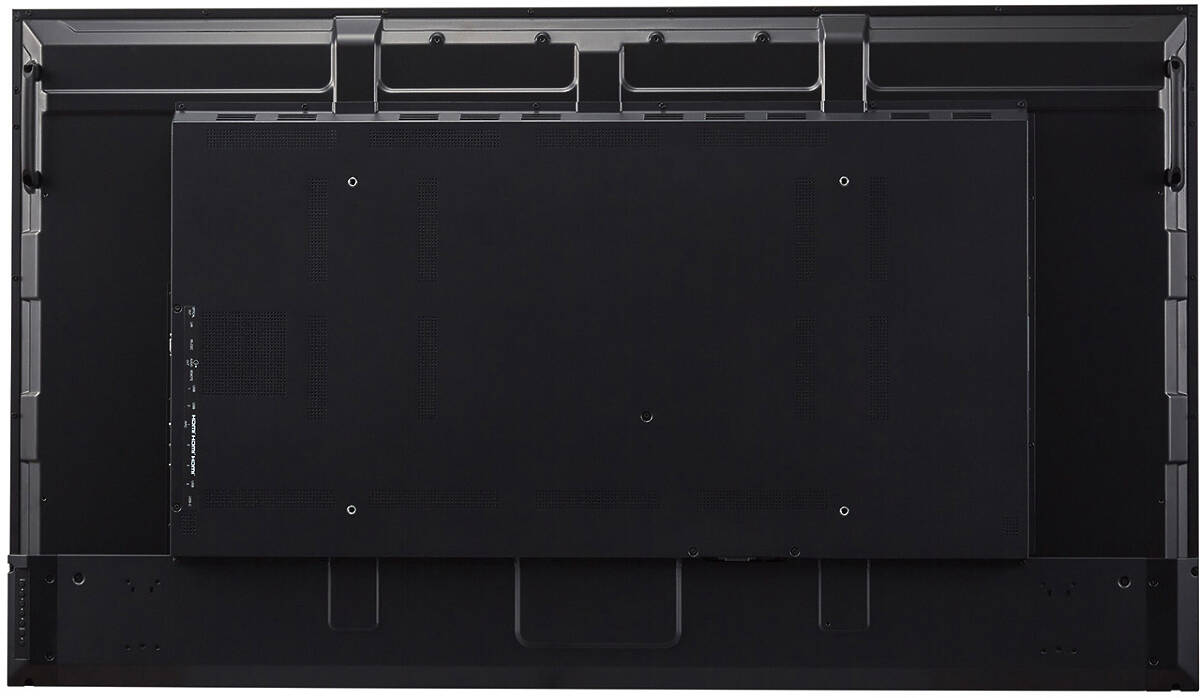

| VESA | 800×600; M8 |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Consumption | 132w |
Environmental Conditions |
|
| Operating Temperature | +0 to +40°C |
| Operating Humidity | 20 – 80% |
| Storage Humidity | 10 – 90% |
| Storage Temperature | -20 to 60°C |
Mechanical |
|
| Bezel Width | 15.9mm |
| Ingress Protection | IP5x (front); IP5x (back) |
| Packaging Dimensions | 1863 × 1090 × 225 W × H × D mm |
| Packaging Weight | 51kg |
| Colour Bezel | Pantone (Process Black M) |
| Material | Metal |
Media Player |
|
| Supported File Storage / File System | FAT16 / FAT32 @ USB 2.0 |
| Supported Video Formats | MKV (Mpeg1/2/3 Layer1/2/3, max res 4096x2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096x2160@60fps) |
| Supported Audio Formats | .mp3 max. Bit Rate 320 kbps |
Embedded Computing |
|
| System Version | Android 13 |
| System Memory | 4G RAM |
| Internal Storage | 32GB ROM |
| Built-in Applications | File Manager; Web Browser |
Regulatory |
|
| Safety and Ergonomics | BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
Green Features |
|
| Ecological Standards | EnergyStar 8.0 |
3rd Party Certifications |
|
| Crestron | Certified for Crestron CCV2 and XiO Cloud |
Additional Features |
|
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo |
| Operating Hours | 18/7 |
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; Scheduled Timer |
| Remote Management | Automated Email Alerts; NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality |
Included Accessories |
|
| Accessories | 2 × AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
