Unicol FCGDH

Heavy Duty Goal Post Style Back-to-Back Floor-to-Ceiling Kit
71–110″ / Max 120.00kg; VESA 800×400–1000×600; Suitable for ceilings up to 4m high

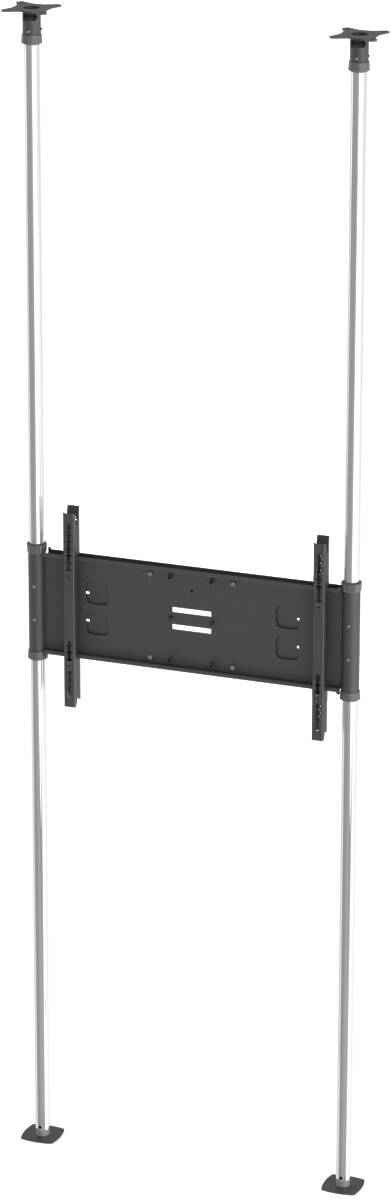

Unicol FCGDH Heavy Duty Goal Post Style Back-to-Back Floor-to-Ceiling Kit product image. Click to enlarge.
Unicol FCGDH Heavy Duty Goal Post Style Back-to-Back Floor-to-Ceiling Kit finished in white product image 2000CX2 product image CP1 product image FCS4 product image FP1 product image PZX9 product image

Unicol FCGDH Description

The FCGDH heavy duty goal-post style kit allows you to mount two screens from 71–110″ / Max 120.00kg; VESA 800×400–1000×600 back-to-back. Cabling can be threaded through the column couplers between the mounts and then up or down through the columns to either the floor or ceiling as necessary.
Comes with 4m columns as standard (in 2m halves), a universal mount and the components that allow you to fix it all together.
This solution is suitable for a maximum weight capacity of 60kg per monitor.

Designed to fit VESA measurements 800×400, 1000×400, 800×600 and 1000×600.

Key Features

£669 (£802.80 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FCGDH Specifications

Product Group Unicol Floor to Ceiling
Monitor Count 2
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 71–110″
Max Load 120kg
Per Monitor 60kg
VESA Mount Points 800×400–1000×600mm
Dimensions 1295.0mm width
4094.0mm height
160.0mm depth
Column Mount Centres 1135mm
Weight 47.30kg.
Warranty 10 Years

Ideal For

  • Exhibitions
  • Hospitality
  • Lobby / Reception Areas
  • Retail
  • Touchscreen Applications

Unicol FCGDH Downloads

FCGDH Component Parts

Product Code Description
2 × Unicol 2000Cx2 2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
2 × Unicol CP1 Single Column Ceiling Plate, Max 60.00kg
1 × Unicol FCS4 Heavy Duty Mount Bracket for 1135mm Goal Post Floor-to-Ceiling Installations (71–110″ / Max 130.00kg; VESA 300×300–1000×600)
2 × Unicol FP1 135×135mm Floor-to-Ceiling Single Column Base Plate
1 × Unicol PZX9 Pozimount Non-tilting Wall Mount for Monitors/TVs (71–110″/ Max 150.00kg; VESA 300×300–1000×600)
