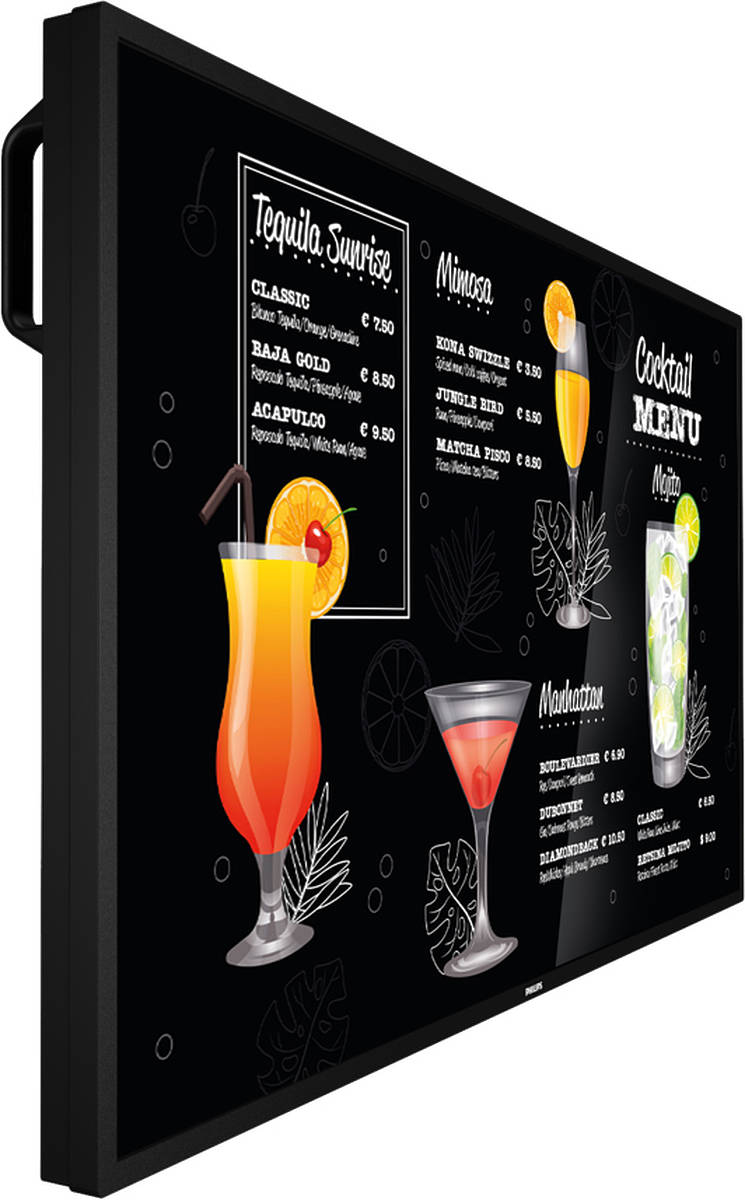

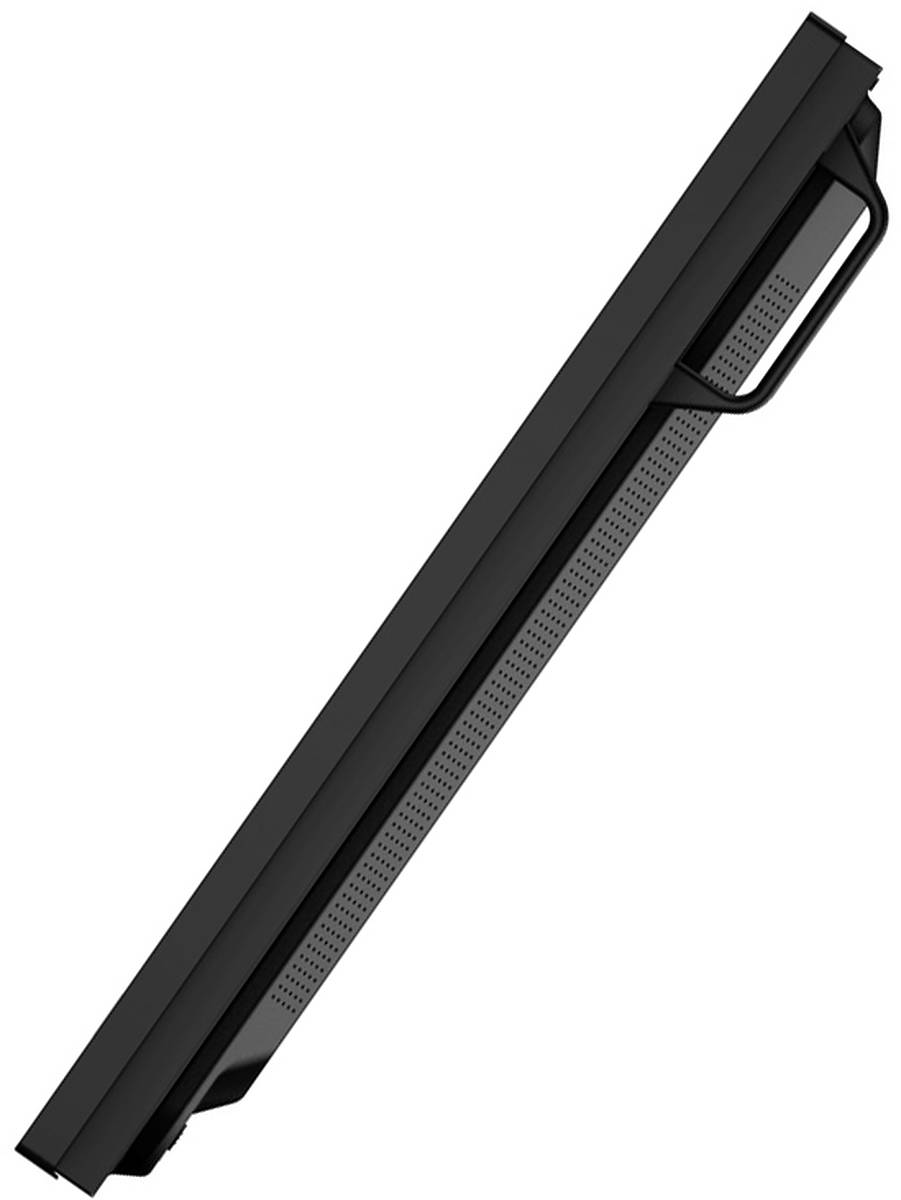

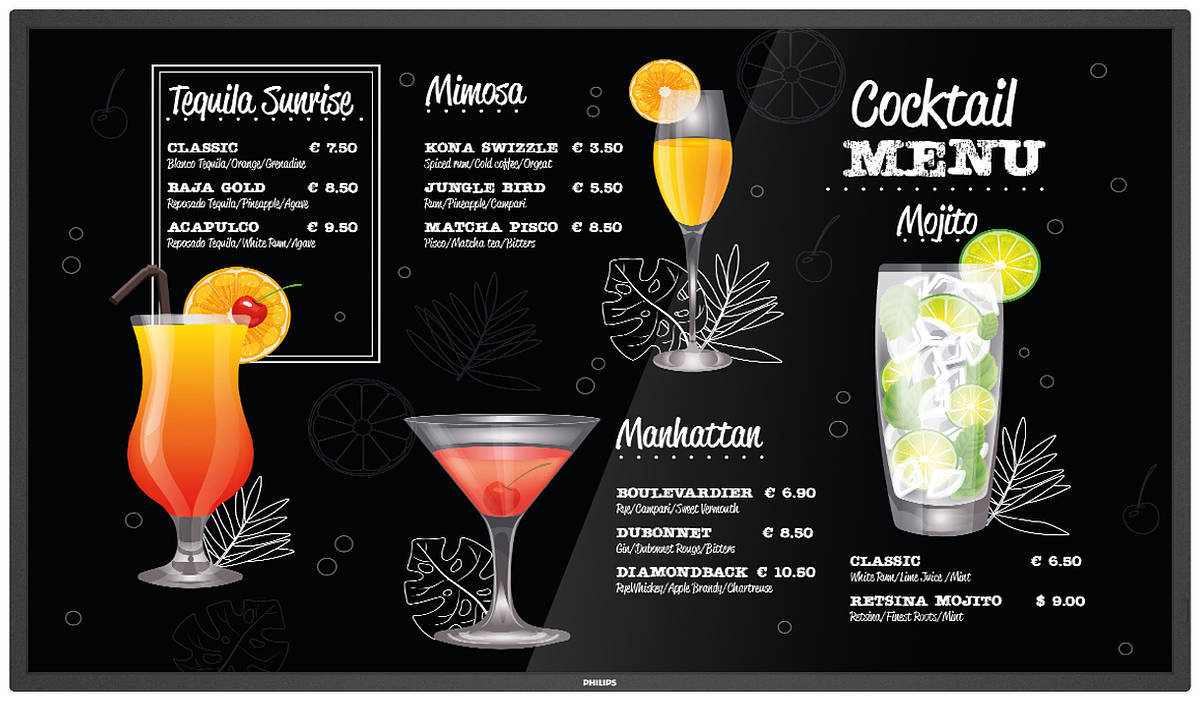

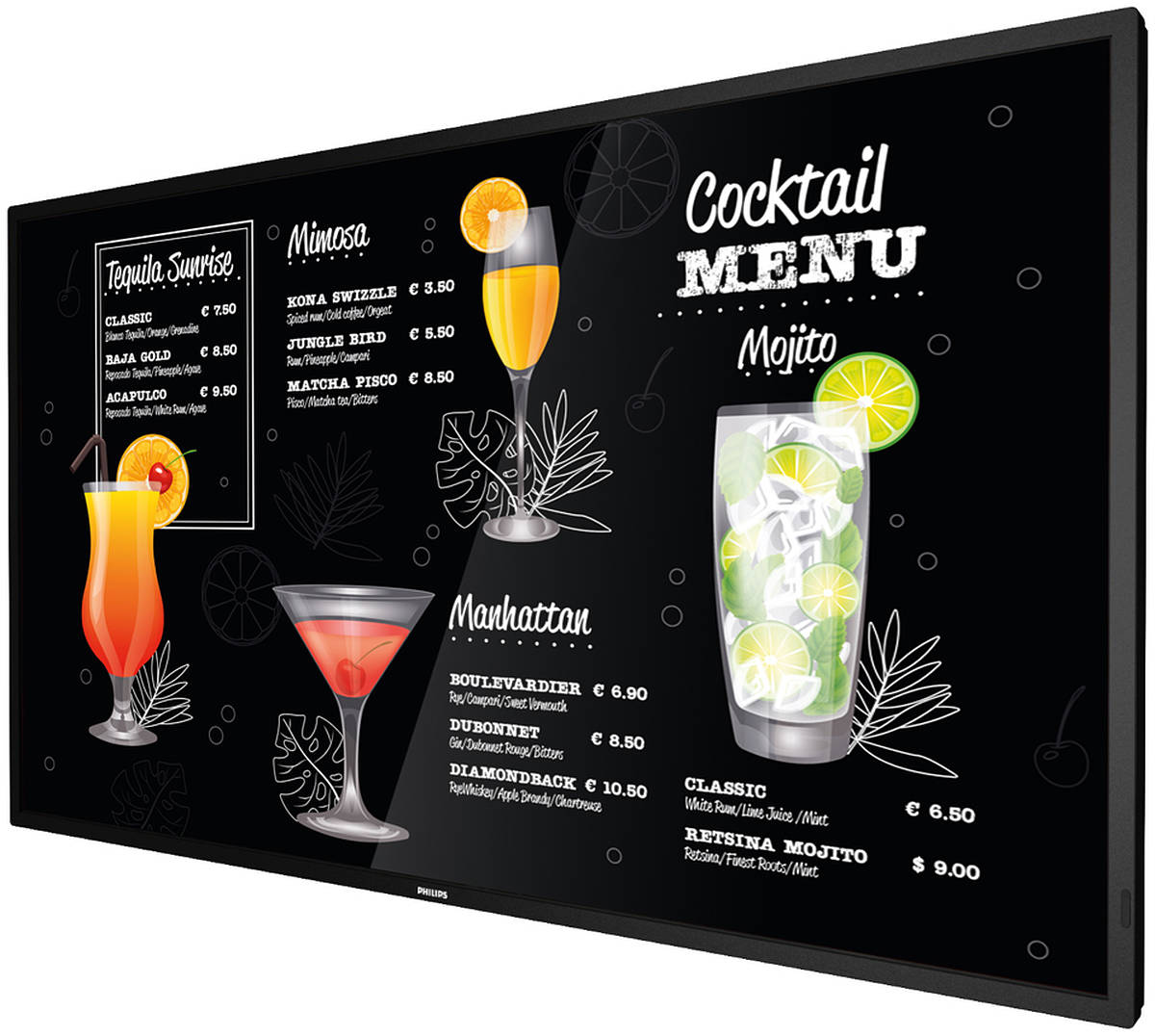

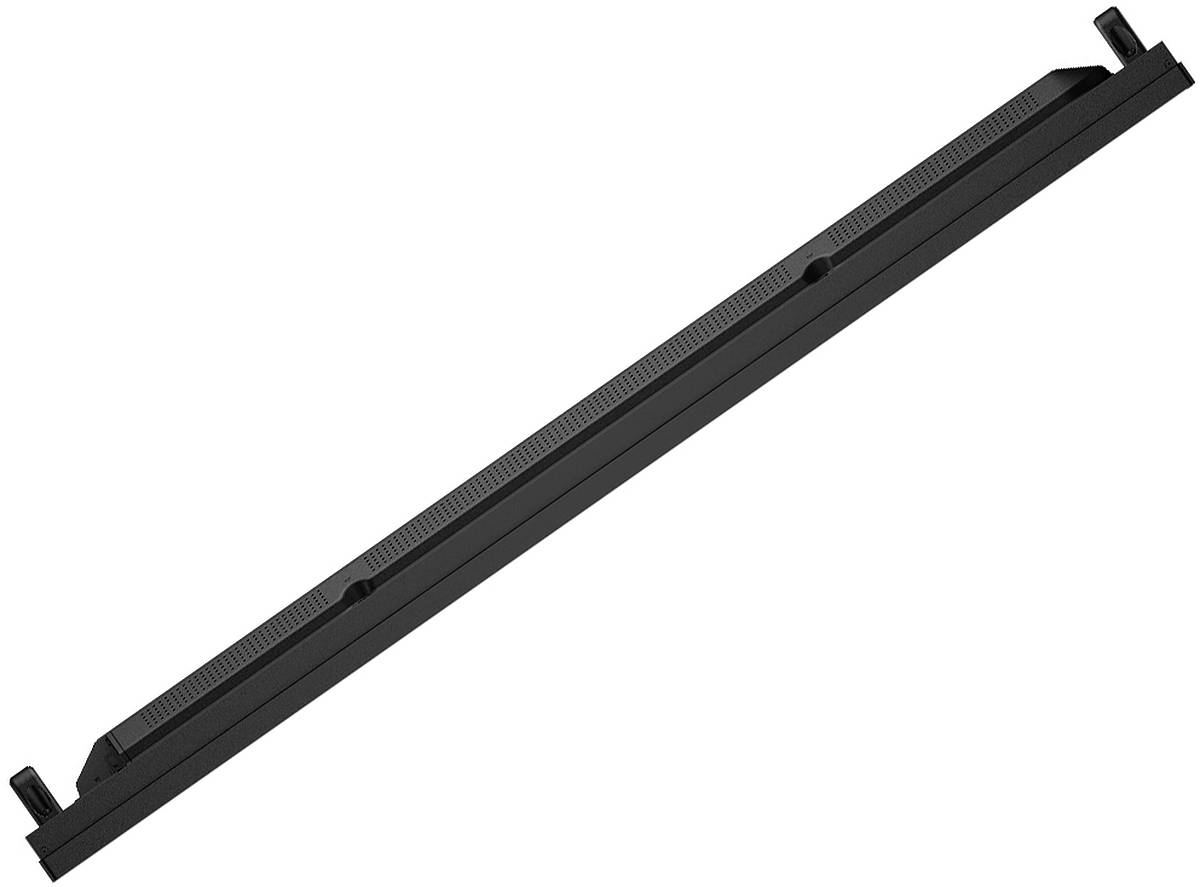

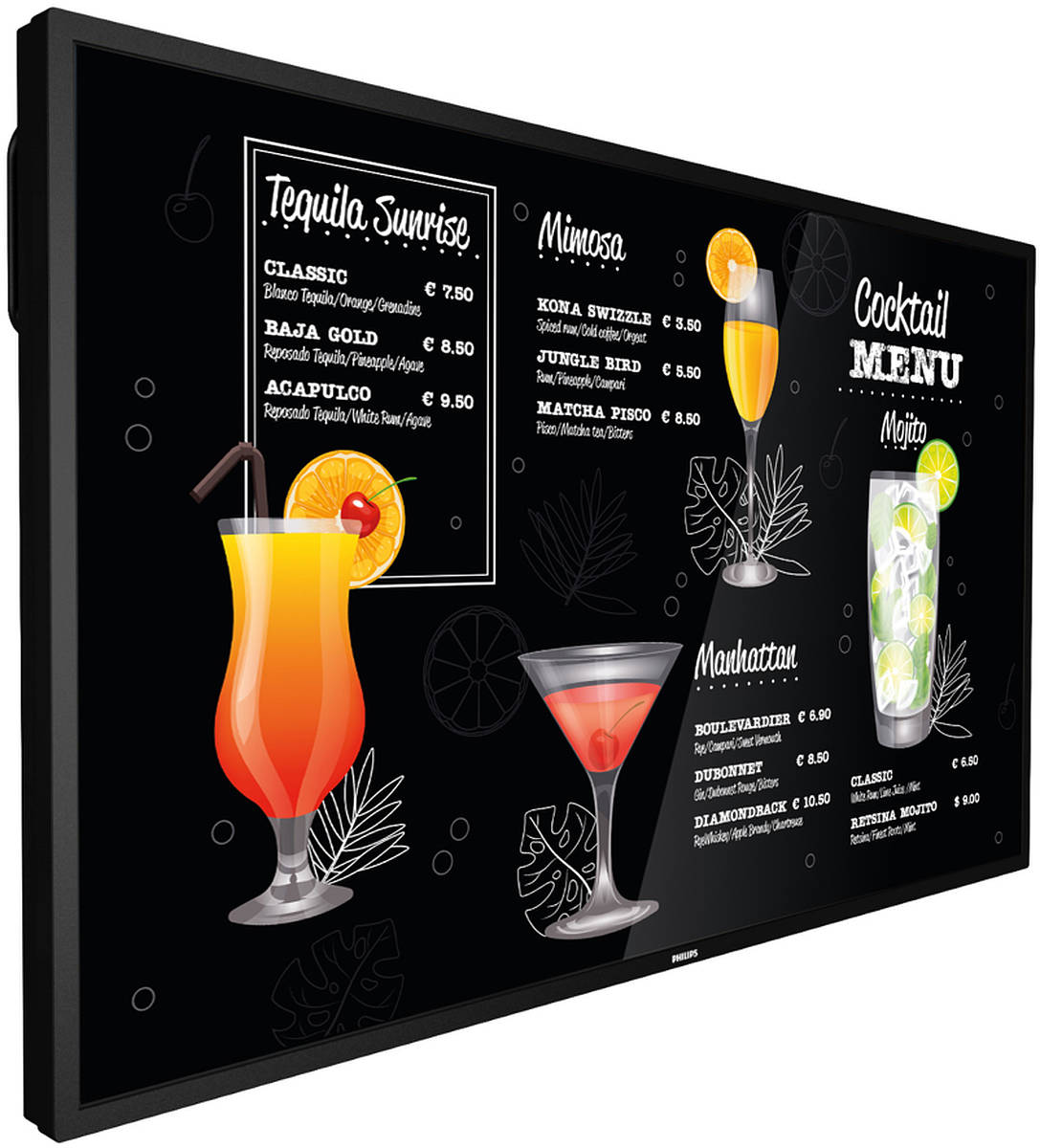

Philips 43BDL3017P/00 LED Large Format Display Monitor
Availability: Please Call
Philips 43BDL3017P/00 Suggested Applications
Key Features
- 42.5" Diagonal LCD / LED backlight Panel
- VESA 400×400 mm, M6 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
- DICOM Support - For accurate medical imaging
- Landscape/Portrait Mode - The 43BDL3017P/00 can be installed in either standard landscape or portrait orientation
- OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Integrated Media Player - Content can be transfered to the display via USB memory stick or network
- SD Card Slot - For media transfer
Philips P-Line
Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
CMND & Control
Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether youre in charge of one TV or more, CMND & Control makes managing your fleet easy.
SDM-L ready
An integrated Intel Smart Display Module Large adds scalable sophistication to your display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.
SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
Mounting Options & Accessories
Philips 43BDL3017P/00 Summary |
|
| Model | Philips 43BDL3017P/00 |
| EAN / UPC | 8712581774318 |
| Display Type | LCD / LED backlight |
| Features | Designed for 24/7 use USB Media Player DICOM Support Landscape/Portrait Mode OPS Slot LAN Control/Monitoring Integrated Media Player SD Card Slot |
| Diagonal | 42.5" |
| Native Resolution | 3840×2160 |
| Brightness | 750cd/m2 |
| Contrast | 1,200:1 |
| Pixel Pitch | 0.2451×0.2451mmmm |
| Colours | 1.07 billion |
Connectivity |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 2 |
| DisplayPort | 1 |
| Audio in | 1 |
| USB | 1 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | 2×10W RMS |
| Warranty | 3 year de-install/re-install |
| Monitor Dimensions | 97.3 × 56.1 × 7.7cm (w×h×d) |
| Weight | 13.9kg. |
| VESA | 400×400 mm, M6 |
| Power Supply | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption | 100w |
Display Details |
|
| Dynamic contrast ratio | 500,000:1 |
| Viewing angle (horizontal) | 178° |
| Viewing angle (vertical) | 178° |
| Haze | 25% |
| Tiled Matrix | Up to 15×15 |
Additional Connectivity |
|
| Other connections | SDM-L; |
| External control | RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack |
| Signal loop through | IR Loop through; RS232; DisplayPort; HDMI |
| Network controllable | RJ45; RS232 |
Media Plater |
|
| USB Playback Audio | AAC; HEAAC; MPEG |
| USB Playback Picture | JPEG; PNG; BMP |
| USB Playback Video | H.264; Motion JPEG; MPEG1/2; WMV3 |
| On-Screen Display Languages | English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish |
Mechanical |
|
| Bezel width | 13.9 mm (Even bezel) |
| Placement | Landscape (24/7); Portrait (24/7) |
| Keyboard control | Hidden; Lockable |
| Energy-saving functions | Smart Power |
| Screen-saving functions | Pixel Shift, Low Bright |
| Ease of installation | Carrying Handles |
| Standby power consumption | <0.5 W |
| Consumption (Max) | 240 W |
| Energy Label Class | G |
| Temperature range | Operation: 0 ~ 40° |
| Storage: -20 ~ 60° | |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range | Opertaion: 20~80% RH (No condensation) |
| Storage: 5~95% RH (No condensation) | |
| Regulatory approvals | CE; CCC; BSMI; CB; VCCI; CECP; EAC; PSB; EMF; ETL; FCC, Class A |
Included Accessories |
|
| Accessories | AC Switch Cover; Edge Alignment Kit (1) - 1 pcs; Edge Alignment Kit (2) - 2 pcs; IR sensor cable (1.8 m) (x 1); Philips logo (x 1); Power cable (x 3); Quick start guide (x 1); Remote control and AAA batteries; RS232 cable (3 m) (x 1); RS232 daisy chain cable (x 1); USB Cover (x 1); Wire Clamper (x 3) |
