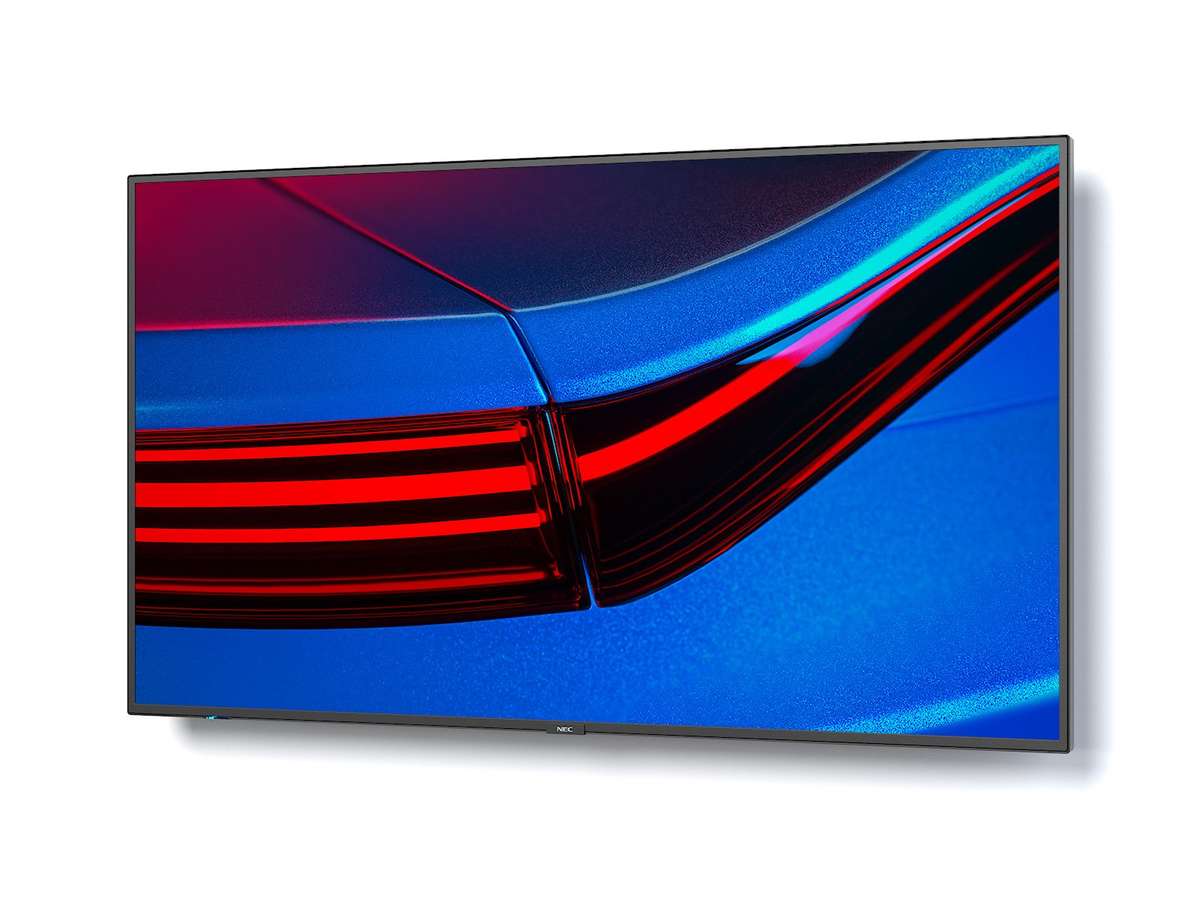

NEC MultiSync P495 LED Large Format Display Monitor

NEC MultiSync P495 49 inch Large Format Display product image. Click to enlarge.

NEC MultiSync P495 49 inch Large Format Display product image

NEC MultiSync P495 49 inch Large Format Display connectivity (terminals) product image

£1392 (£1670.40 inc. VAT)
Availability: In stock

NEC MultiSync P495 Suggested Applications

Museums and Art Galleries

Retail

Health Care / Clinics

Digital Signage

Key Features

49" Diagonal IPS with Edge LED backlights Panel
Secure remote management - Control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Unhindered readability - No reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Safe for public environments - A metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
Enhanced imaging performance - Advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
Mission-critical 24/7 ready operation - The meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
VESA 300*300; M6mm mounting points
Designed for 24/7 use - Warranty covers use all day, every day
Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display
DICOM Support - For accurate medical imaging
Landscape/Portrait Mode - The MultiSync P495 can be installed in either standard landscape or portrait orientation
OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
Picture-In-Picture
Picture-And-Picture
LAN Control/Monitoring - The monitor can be controlled through your local area network

When imaging precision cannot be compromised

When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync P series presents best-in-class performance with an advanced feature set for mission-critical applications

Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated NEC SpectraView engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring NEC Open Modular Intelligence (OMI) slot-in technology, choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel Smart Display Modules (IntelSDM) for tailor-made signage solutions.

For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P Series is trusted for safety and long-life, fit-for-purpose performance.

NEC MultiSync P495 Downloads

Instruction Manual

Mounting Options & Accessories

Unicol PA2 E

Unicol VS1000 E

Unicol AX15P

Unicol PLW1

Unicol PLX1

Unicol AVLP

Unicol AX16P

Unicol AX15T

Unicol AX10P

NEC MultiSync P495 Summary
Manufacturers Part No.	60005049
Model	NEC MultiSync P495
EAN / UPC	5028695119376
Display Type	IPS with Edge LED backlights
Features	Designed for 24/7 use Display Daisy Chaining DICOM Support Landscape/Portrait Mode OPS Slot Picture-In-Picture Picture-And-Picture LAN Control/Monitoring
Diagonal	49"
Viewable Area	107.4 * 60.4cm
Native Resolution	3840*2160
Brightness	700cd/m²
Contrast	8,000:1
Colours	1.073 billion (10bit)
Horizontal Frequency	15-135KHz
Vertical Frequency	23-76Hz
Connectivity
HDMI	2
DisplayPort	2
USB	3
RS-232	1
General Specifications
Speakers	No
Warranty	3 years warranty incl. backlight
Monitor Dimensions	110.3 × 63.6 × 6.1cm (w×h×d)
Weight	22.9kg.
VESA	300*300; M6mm
Power Supply	220-240V AC
Consumption	105w
Connectivity Details
Data Input	1 × USB 2.0 (Downstream)
	1 × USB 2.0 (Powered 5V/2A, Firmware Updates)
	1 × USB 2.0 Type-B (Downstream)
Digital Audio Input	1 × DisplayPort
	2 × HDMI
Digital Video Output	1 × DisplayPort (loop through: DisplayPort, SDM slot-in PC)
	1 × HDMI (loop through: HDMI, SDM slot-in PC)
Analogue Audio Output	1 × 3.5mm jack
Control Output	1 × LAN 100Mbit
Input Detection	Custom
	First
	Last
Display Details
Viewing Angle	Hor. 178°/ Ver. 178° (typical at contrast ratio 10:1)
Colour Gamut	86% of DCI
Refresh Rate	60Hz
Haze Level	Pro (28)%
Supported Orientation	Landscape, Portrait, Face Up, Face Down 2
P-in-P / P-and-P	Dual-Split; Quad-Split; scalable picture size
Special Characteristics	DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Factory Calibration	Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration App	NEC Display Wall Calibrator
Sensor Calibration USB	PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Software Calibration	Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
OPS Slot
Intel® SDM	accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot	RPi Compute Module 4
Sensors
Ambient Light Sensor	Integrated, triggered actions programmable
Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
Additional Control
External Control	AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management	Automated Email Alerts; NEC NaViSet Administrator 2
Power DetailsPower Savings Mode	< 0.5; < 2 (Networked Standby)W
VESA DPMS
Energy Efficiency	Energy consumption: 106 kWh/1000 h; Energy efficiency class: G; LED backlight
Operating Hours	24/7
Environment
Operating Temperature	+0 to +40°C
Operating Humidity	20 to 80%
Storage Humidity	10 to 90%
Storage Temperature	-20 to 60°C
Resistance to Fire	Metal backcover, plastic material certified acc. to UL94-5VB
Mechanical
Bezel Width	12 (top and bottom); 12.5 (left and right); 15.6 (bottom)mm
Bezel Colour	Pantone 426M (black)
Ingress Protection	IP5x (front); IP2x (back)
Packaging Dimensions	1,298 × 860 × 224mm (W × H × D)
Packaging Weight	29.8kg
Material	Metal
Pixel Failure Class	ISO 9241-307, Class 1
Security	Disable HW Buttons; Disable IR Functionality; Emergency Notification
Optional Accessories	Feet (ST-401/ST-43M); Soundbar (passive: SP-PSCM-IQ / SP-PSCM); Speaker (SP-TF1, SP-RM3); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P)
Power Supply	100-240 V AC; 50/60 Hz; internal
Included Accessories
Accessories	2 x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
