WyreStorm EX-70-G2

1:1 4K HDMI / IR / RS-232 / PoH over HDBaseT Extender Kit

Max. 35m at 4K with Cat6a/7 cable;9.2Gbps

£151 (£181.20 inc. VAT)
Availability: In stock

WyreStorm EX-70-G2

Super-compact HDBaseT extender set capable of transmitting 4K UHD video and HD audio formats up to 35m/115ft of Cat5e cable. Also compatible with HDCP2.2 protected content, the WyreStorm EX-70-G2 has powerful bi-directional pass-through of CEC, IR and RS-232. 2-way PoH means device can be powered from either end for flexible installation options.

UHD & HD BEST OF BOTH WORLDS

We might live in a 4K world, but not every application needs it. Compatible with the latest 4K/60 and 1080p sources alike, the EX-70-G2 delivers whatever content you have, wherever its needed.

2-WAY POH FOR FLEXIBLE INSTALL

No two installs are the same, which is why the EX-70-G2 and all H2 Series extenders can be powered from either TX or RX side for the most convenient and flexible installation imaginable.

SMALL BUT POWERFUL

Weighing in for the featherweight title at just 15mm thick, the EX-70-G2 can be installed just about anywhere, but still packs the punch to deliver video, audio, control and power like a champ.

BIDIRECTIONAL CONTROL WHATEVER THE PROTOCOL

Need to send control signals both up and downstream? The EX-70-G2 has you covered with IR, RS-232 and even CEC signals able to be passed-through, end-to-end bidirectionally for simultaneous source & display control.

  • 4K UltraHD extender set capable of transmitting AV content over medium distances using single cable Cat6 cable
  • HDBaseT™ Class B transmission of 4K HDR up to 35m/115ft and 1080p @60Hz 36bit up to 70m/230ft
  • Full UHD 4K transmission supporting HDMI 2.0 video standards
  • Supports all high definition resolutions including 4K UHD @30hz 4:4:4 24bit — 4K HDR @24Hz 4:2:0 10bit (BT.2020) – see specifications for details
  • Revised chipset increases compatibility with new 4K UHD source devices
  • Transmits discreet wide-band bidirectional IR/RS-232 control signals together with HDMI over a single Cat5e/6 cable
  • Low profile chassis of 15mm for easier, more convenient installations behind screens at display zones
  • Supports 2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos
  • 2-way PoH (Power over HDBaseT™) enables either transmitter or receiver to be remotely powered by the other locally powered so mains power connectivity is not required at both source and display location
  • HDCP 2.2 compliant
  • 3D compatible
  • Switchable RS-232 function mode on transmitter and receiver for firmware update
  • Threaded bushings allow use of both standard and locking DC power plugs
  • Visual LED indication for power, display connection signal status, HDBaseT™ link, and HDCP presence in signal
  • Cable termination follows IEEE-568B standards
  • Automatically adjusts feedback, equalization and amplification of signal for easy installation
  • Energy efficient universal power supply included
HDBaseT Full
HDMI Transmitter
HDMI Receiver
IR Pass Through
RS-232 Pass Through
4K 4096*2160 and 3840*2160 Resolution
48V PoE (Power over Ethernet) Transmitter
48V PoE (Power over Ethernet) Receiver

WyreStorm EX-70-G2 Specifications

Connectivity

Transmitter
Inputs 1 × HDMI In: 19-pin type A
Outputs 1 × HDBT Out: 8-pin RJ45 Female
1 × HDMI Out: 19-pin type A

Receiver

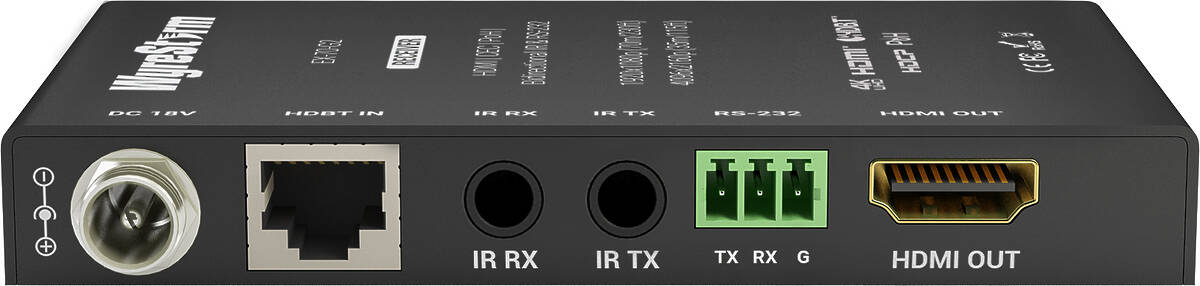

Inputs 1 × HDBaseT™ 8-pin RJ45 female
Outputs 1 × HDMI Loop Out: 19-pin type A

Communication and Control

IR 1 × IR TX: 3.5mm (1/8in) TS Mono
1 × IR RX: 3.5mm (1/8in) TRS Stereo
RS-232 1 × RS-232: 3-pin Terminal Block
Ethernet 1 × Ethernet: 8-pin RJ-45 Female

Resolution and Ma× Cable Length

Video Resolutions HDMI Cat6 Cat6a/7
1920×1080p @60Hz 12bit 15m 70m 100m
1920×1080p @60Hz 16bit 7m 70m 100m
3840×2160p @30Hz 8bit 4:4:4 7m 35m 70m
3840×2160p @30Hz 8bit 4:2:0 7m 35m 70m
4096×2160p @60Hz 8bit 4:2:0 7m 35m 70m

Processing

Output Video Encoding HDBaseT™ Class B
Encoding Data Rate 9.2Gbps
End To End Latency (max) 10μs (microseconds)
Audio Formats 2ch PCM, Multichannel up to DTS-X and Dolby Atmos
Supported Standards DCI, RGB
Maximum Pixel Clock HDMI: 300MHz, HDBaseT: 297MHz

Communication and Control

HDMI HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included)
HDBaseT™ HDMI, HDCP 2.2, EDID, 2-way PoH, Bidirectional IR, RS-232, and Ethernet

Mechanical

Power Supply 18V DC 1A
Poh IEEE 802.3af 48V 15.4W Max, 2-way
Max Power Consumption 7W (Transmitter)
17W (Receiver)

Environmental

Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Maximum BTU 24 per hour (Transmitter)
58 per hour (Receiver)

Dimensions & Weight

Rack Units/wall Box <1U
Height 15mm
Width 109mm
Depth 64.2mm
Weight 0.36kg

Regulatory

Safety And Emission CE, FCC, RoHS, RCM

WyreStorm EX-70-G2 Usage Diagram



WyreStorm EX-70-G2 Usage Diagram
