Lightware UCX-4x2-HC40
4×2 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub
2 × HDMI, 2 × USB 3.1 inputs; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB
Availability: Please Call
Lightware UCX-4x2-HC40 (91310088)
Bring Collaboration Spaces to the Next Level
The UCX-4x2-HC40 universal switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also to utilize the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.

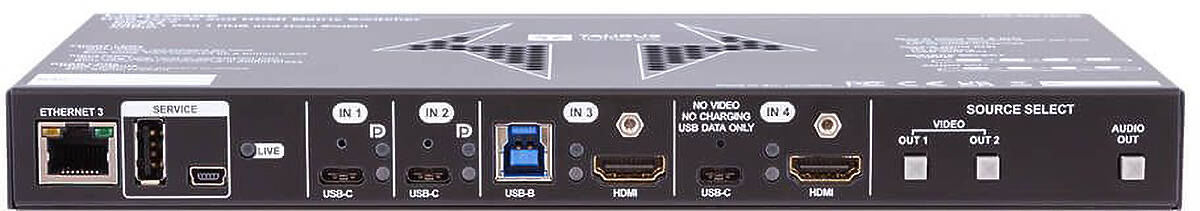

Exploit the Possibilities of USB connectivity
The device utilizes the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power, and allows data speeds of up to 5 Gbps under the USB 3.1 Gen1 and allowing video resolution capabilities up to 4K@60Hz at 4:4:4.
Devices such as laptops that do not come with USB-C connectivity can also be connected quickly and easily, using a combination of HDMI 2.0 and USB 3.1 Gen1 connections without compromising on either video resolution or data speeds.
The device is designed to be a centrepiece of any collaboration space, and can be connected to four USB peripherals via USB-A type connectors.
The device allows up to four hosts to be connected to the system, and also ensures quick and easy switching between these hosts, making this universal switcher a perfect fit for smaller meeting areas, involving 6-12 people.
Additional Features and Capabilities
Automated room control features are also included through GPIO ports, besides of RS-232 and occupancy sensor connectivity, and the switcher also thrives when it comes to audio capabilities, offering Analogue audio de-embedding.
Security is always a key concern in the corporate world, therefore our engineers ensured that the UCX-4x2-HC40 adhere to the strictest security standards.
Secure corporate Ethernet interfaces ensure secure device control and configuration under the SSH, SSL and HTTPS standards, whilst the device can also be securely connected to a closed network of room control devices such as wall panels, or routed to the corporate system for additional control options, all via separate Ethernet layers.
The Taurus UCX offers noiseless operation in most environments where conditions are considered regular, just like in a meeting room where temperatures do not exceed the low 20s in Celsius or about 70-75 in Fahrenheit. The built-in fan is designed to operate only if the device is installed in a cabinet or other environment with insufficient air-flow. We specified a maximum of 30dBA noise level for our ventilation system in a meeting room, to comply with the NC-30 and NR 30 standards.
In today's collaboration environments, it is key that the technology offers flexible and versatile ways for participants to unlock the full potential of a collaboration space and to not be limited by the default options offered by their meeting rooms.
The Taurus UCX product family is Lightware's ground-breaking innovation offered for the increasingly growing demand for cutting-edge solutions in the world of Unified Communications.
Lightware UCX-4x2-HC40 Key Features
- Passive, noiseless cooling
- CEC at the HDMI outputs
- Welcome screen for custom corporate logo and on-screen display warning messages
- USB-C charging up to 100W (120W total)
- USB-C input connectivity for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
- Multiple USB 3.1 Gen 1 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc.)
- USB 3.1 Gen 1, USB 2.0, USB 1.1 compliant
- Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
- Dedicated secure corporate and room utility Ethernet connectivity
- Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
- SSH, SSL, HTTPS for IT security
- Occupancy sensor connection (with 24V power supply)
- Splash screen for custom corporate logo and on-screen display warning messages
- Audio de-embedding
- GPIO control ports
- Device control via Ethernet (TCP/IP)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- Order Code: 91310088
Lightware UCX-4x2-HC40 Downloads
Lightware UCX-4x2-HC40 Specifications
Video |
|
Resolution | Up to UHD/4k@60Hz 4:4:4 |
Signal Type | DP, HDMI 2.0, HDMI 1.x, DVI |
Maximum Data Rate | 18 Gbps |
Maximum Pixel Clock | 597 MHz |
Content Protections | HDCP 1.x, HDCP 2.2 |
Connector Type | 2 × HDMI receptacle type A with screw locking option |
2 × USB-C receptacle type A with screw locking option | |
Video Processing | Signal parameter measurement |
Standards | DP, HDMI 2.0, HDMI 1.4, DVI |
Audio |
|
Audio mode | Simultaneous pass-through and de-embedding to the Audio layer |
Supported audio formats for pass-through | All HDMI2.0 audio formats |
Supported audio formats for de-embedding | Uncompressed: LPCM (up to 8 channels, 192 kHz, 24 bits per sample) |
Compressed: Dolby Digtal, DTS | |
Compressed HBR: Dolby TrueHD, DTS-HD | |
Control |
|
Ethernet | Control 1 × 100Base-T via EtherCON for Secure Control |
User Data 1 × 100Base-T via EtherCON for Utility AV | |
1 × 100Base-T via EtherCON for Secure Corporate Ethernet | |
Audio 1 × 100Base-T via EtherCON for Dante audio (output) | |
RS232 | Connector 2 × 3Pol Phoenix |
Symbol rate between 4800 and 115200 baud | |
Configuration 8N1 | |
USB | Connectors 2 × USB Type C with charging function (2x30W), Optional Ethernet access |
1 × mini USB Type B for LDC control | |
1 × USB Type A for Service | |
2 × USB Type B for user application | |
4 × USB Type A for peripherals | |
Room Occupancy Sensor | Connector 3Pol Phoenix |
GPIO | Connector 8Pol Phoenix |
General |
|
Power | External 160W power supply |
Power consumption (max) | Max. 150W |
Thermal dissipation (max) | 469 BTU/h (max) |
Weight | TBD |
Operating conditions |
|
Ambient temperature | 0-50°C |
Relative humidity | 0-90% (non-condensing) |
Compliance | EN 55032:2015 |
IEC 61000-3-3:2013+AMD1:2017 | |
FCC CFR Title 47, Part 15, Subpart B | |
Warranty | 3 years |
Lightware Taurus UCX Series
Variant | UCX-2x1-H30 | UCX-2x2-H40 | UCX-2x1-HC40 | UCX-4x2-HC40 | UCX-4x3-HC40 |
---|---|---|---|---|---|
HDMI inputs | 1 | 2 | 2 | 2 | 2 |
USB-C connectivity (4K Video, Audio, Data, Power charge) | 0 | 0 | 2 | 2 | 2 |
HDMI output | 1 | 2 | 2 | 2 | 3 |
USB-A 3.1 Gen1 Connection (for USB Devices) | 4 | 4 | 4 | 4 | 4 |
USB-B 3.1 Gen1 Connection (for PC hosts) | 1 | 1 | 1 | 1 | 1 |
USB-B 3.1 Gen1 Connection (for PC hosts) with Video | 1 | ✘ | 1 | 1 | 1 |
USB-B 3.1 Gen1 Connection (for PC hosts) Data Only | ✘ | 1 | 1 | 1 | 1 |
USB Host Switching | ✔ | ✔ | ✔ | ✔ | ✔ |
Analogue audio de-embedding (5-pole Phoenix) | ✔ | ✔ | ✔ | ✔ | ✔ |
DANTE/AES67 audio support | ✘ | ✘ | ✘ | ✘ | ✔ |
Secure control Ethernet | ✔ | ✔ | ✔ | ✔ | ✔ |
Utility Ethernet | ✔ | ✘ | ✔ | ✔ | ✔ |
Configurable Ethernet | ✔ | ✘ | ✔ | ✔ | ✔ |
GPIO connection | ✔ | ✔ | ✔ | ✔ | ✔ |
RS-232 connection | 1 | 2 | 2 | 2 | 2 |
Welcome Screen | ✔ | ✔ | ✔ | ✔ | ✔ |
Lightware Taurus UCX Range
Product Code | Description | Price | Inc. VAT |
Lightware UCX-2x1-HC40 | 2:1 Taurus HDMI 2.0 Switcher with USB 3.1 Switch Hub 1 × HDMI, 1 × USB 3.1 inputs; 1 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2010 | £2412.00 |
Lightware UCX-2x2-H40 | 2 × 2 Taurus HDMI 2.0 Matrix Switch with USB 3.1 Hub 2 × HDMI; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £1690 | £2028.00 |
Lightware UCX-4x2-HC30D | 4 × 2 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub and DANTE 2 × HDMI, 2 × USB 3.1 inputs ; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2990 | £3588.00 |
Lightware UCX-4x2-HC40D | 4 × 2 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub and DANTE Audio output 2 × HDMI, 2 × USB 3.1 inputs; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2990 | £3588.00 |
Lightware UCX-4x3-HC40 | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 3 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £3010 | £3612.00 |
Lightware UCX-4x3-HC40-BD | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub and DANTE Audio Bridge 2 × HDMI, 2 × USB 3.1 inputs; 3 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £3200 | £3840.00 |
Lightware UCX-4x3-HCM40 | 4 × 3 MultiStream USB-C / HDMI 2.0 Matrix Switcher 1 × USB-C, 2 × HDMI inputs; 3 × HDMI outputs | £3300 | £3960.00 |
Lightware UCX-4x3-TPN-TX20 | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher / TPN Transmitter with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 1 × 10G TPN, 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2975 | £3570.00 |
Lightware UCX-4x3-TPX-TX20 | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher / TP Transmitter with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 1 × 10G TPN, 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £3110 | £3732.00 |
