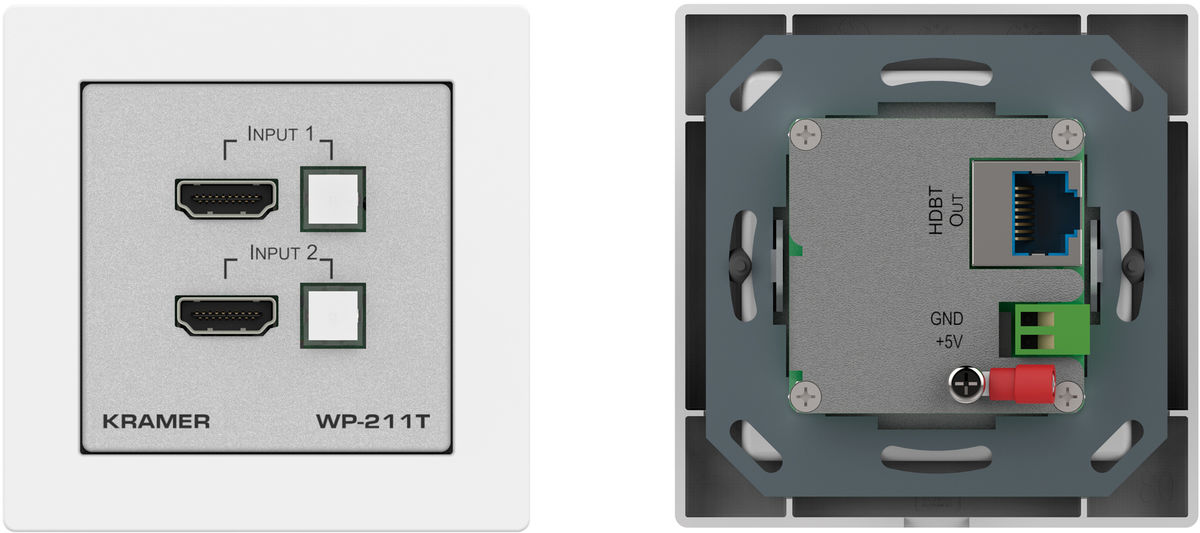

Kramer WP-211T

2:1 4K HDMI Auto Switcher Wallplate over HDBaseT Transmitter with PoH

2 × HDMI Inputs; 1 × HDBaseT output; Max. 70m @ 1080p, 40m @ 4K

£465 (£558.00 inc. VAT)
Availability: In stock

Kramer WP-211T (20-804970590)

The Kramer WP-211T is a high performance PoE-powered wall-plate automatic switcher of 4K HDMI video signals, transmitted over long-reach HDBaseT extension link. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.


See also: Kramer WP-211T EU PANEL SET.
  • Plug & Play Auto Switcher — Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto-plays switched source signal on connected display according to user-configured preferences.
  • Automatic Input Selection — Plug & play auto switching based on last connected input or manual selection.
  • High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long-reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market-available HDBaseT-compliant extension product.
  • HDMI Signal Switching — HDMI 2.0 and HDCP 2.2 compliant, it supports deep colour, x.v.colour™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D.
  • Multi-channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Reliable PoE (Power over Ethernet) Powering — Auto-senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
  • Easy Installation — Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
  • 7 year warranty (Click Here for details)
HDBaseT Lite
HDMI Transmitter
70 Metre Range
48V PoE (Power over Ethernet) Receiver

Kramer WP-211T Specifications

Connectivity

Inputs 2 x HDMI On female HDMI connectors
Outputs 1 x HDBaseT On an RJ-45 connector

Video Specification

Max. Data Rate 8.91Gbps (2.97Gbps per graphic channel)
Max. Resolution 4K@60Hz (4 2 0)
Standards Compliance HDCP 2.2 (does not support conversion to HDCP 1.4)
Extension Range Up to 40m (130ft) At 4K@60Hz (4 2 0)
Up to 70m (230ft) At full HD (1080p @60Hz 36bpp)
Up to 70m (230ft)
When using Kramer HDBaseT cables
Compliance HDBaseT 1.0

Mechanical

User Interface Controls Panel buttons, and last connected/priority DIP-switches
Power Source 5V DC
PoE Acceptor
Consumption 780mA
Consumption with PoE 9 watt
Enclosure Size 1 Gang UK wall plate
Cooling Convection ventilation
Regulatory Compliance EMC EN 55032
IEC 60950-1(ed.2)
IEC 60950-1(ed.2)am1
IEC 60950-1(ed.2)am2
Accessories Included with all versions 1 Power adapter, 1 power cord
Included with US-D version 2 US Frame sets and faceplates (1 in black and 1 in white)
Included with European version 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate

Environmental

Operating Temp. 0° to +40°C (32° to 104°F)
Storage Temp. -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing

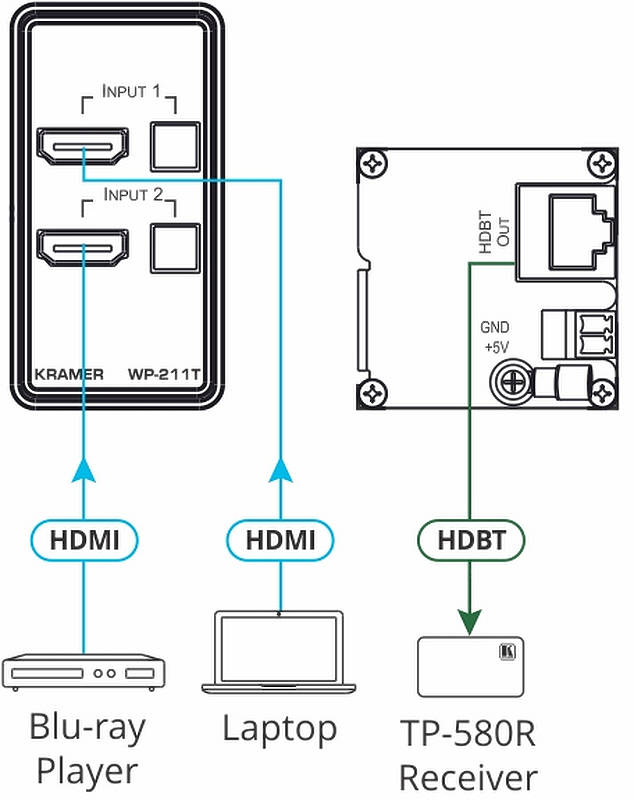

Kramer WP-211T Usage Diagram



Kramer WP-211T Usage Diagram

Kramer HDBaseT Receivers

ProductDescriptionPriceInc. VAT
Kramer 692 1:1 4K 60Hz HDMI MM/SM Fibre Optic HDBaseT 2.0 Receiver with USB, Ethernet, RS-232 & IR (Max bandwidth 10.2Gbps, 4K60Hz 4:2:0; Up to 1.8 miles Multi-mode, 20.5 miles Single-mode; Requires OSP SFP+ module) £1923 £2307.60
Kramer EXT3-POE-XR-R 1:1 HDMI/USB2.0/Ethernet/RS-232/IR/PoE over HDBaseT 3.0 Receiver (Max. 100m at 4K60 4:4:4; Bidirectional PoE) £655 £786.00
Kramer EXT3-TR 1:1 4K60 4:4:4 HDMI Extender with USB, RS–232, & IR over HDBaseT 3.0 (Can act as transmitter or receiver; 2 × HDMI, 4 × USB, 1 × IR, 1 × RS-232; Max 40m at 4K@60Hz) £489 £586.80
Kramer EXT3-XR-TR 1:1 4K60 4:4:4 HDMI / USB / RS-232 / IR over HDBaseT 3.0 extender (Can act as transmitter or receiver; 2 × HDMI, 4 × USB, 1 × IR, 1 × RS-232; Max 100m at 4K@60Hz) £592 £710.40
Kramer KIT-400 2:1 4K Auto-Switcher/Scaler Kit over HDBaseT transmitter and compact receiver (2 × HDMI, 1 × VGA input; 1 × HDMI output; Max 40m @ 4K; 70m at HD) £1016 £1219.20
Kramer KIT-401 2:1 4K Auto-Switcher/Scaler Kit over HDBaseT wall plate transmitter and compact receiver (1 × HDMI, 1 × VGA input; 1 × HDMI output; Max 40m @ 4K; 70m at HD) £1025 £1230.00
Kramer TP-580R 1:1 HDBaseT-Lite HDMI/IR/RS-232 Twisted Pair Receiver (Max. 70m at 1080P or 4K) £201 £241.20
Kramer TP-580Rxr 1:1 HDBaseT HDMI/RS-232/IR over extended range Twisted Pair Receiver (Max. 130m Normal Mode or 180m Ultra mode at 1080p/60Hz/24bpp) £303 £363.60
Kramer TP-582R 1:2 HDBaseT HDMI/Ethernet/RS-232/IR over Twisted Pair Receiver (1 × HDBaseT input; 2 × HDMI outputs; Max. 130m at 1080p) £492 £590.40
Kramer TP-583R 1:1 4K HDR HDMI 2.0 over HDBaseT Receiver with RS-232 and IR support (Max. 70m at 4K30Hz HDR using Kramer TP cable) £273 £327.60
Kramer TP-583Rxr 1:1 4K HDR HDMI 2.0 over HDBaseT Receiver with RS-232 and IR support (Max. 180m at 4K30Hz HDR using Kramer TP cable) £354 £424.80
Kramer TP-590R 1:1 HDMI/USB/RS-232/IR over HDBaseT 2.0 Receiver (Max. 40m at 4K/60Hz or 70m 1080p/60Hz) £354 £424.80
Kramer TP-590RXR 1:1 HDMI, Audio / USB / Ethernet / Bidirectional RS-232 & IR over HDBaseT 2.0 Twisted Pair Receiver (1 × HDBaseT input; 1 × HDMI output; Max. 100m @ 4K) £639 £766.80
Kramer TP-594Rxr 1:1 4K HDMI, Ethernet, RS-232, IR, PoH, ARC & St. Audio Embed/De-embed Extended-Reach HDBaseT 2.0 Receiver(1 × HDMI input; 1 × HDBaseT output; Max. 180m @ 4K) £711 £853.20
Kramer TP-600TRXR 1:1 4K60 4:4:4 HDMI / USB / RS-232 / IR over HDBaseT 3.0 extender (Can act as transmitter or receiver; 2 × HDMI, 4 × USB, 1 × IR, 1 × RS-232; Max 100m at 4K@60Hz) £584 £700.80
Kramer TP-789R 1:1 4K 60Hz HDMI HDBaseT Receiver with RS-232 and IR (1 × HDBaseT input; 1 × HDMI output; Bi-Directional PoC; Max 40m at 4K, 70m at 1080p) £282 £338.40
Kramer VP-427X 2:1 4K HDMI and HDBaseT Auto-Switcher/Scaler Receiver (1 × HDBaseT, 1 × HDMI inputs; 1 × HDMI output; Max 40m @ 4K, 70m @ 1080p) £774 £928.80
Kramer VP-427X1 2:1 4K 60Hz HDMI HDBaseT Receiver/Scaler with PoH, Ethernet, RS-232 and IR (1 × HDBaseT input, 1 × HDMI input; 1 × HDMI output; Auto-switching, Max 180m at 4K) £804 £964.80
Kramer VP-427X2 3:1 4K 60Hz HDMI HDBaseT Receiver/Scaler with PoH, Ethernet, RS-232 and IR (2 × HDBaseT inputs, 1 × HDMI input; 1 × HDMI output; Auto-switching, Max 180m at 4K) £870 £1044.00
Kramer WP-789T 1:1 4K 60Hz HDMI HDBaseT Transmitter wall plate with RS-232 and IR (1 × HDMI input; 1 × HDBaseT output; Accepts PoH from receiver; Max 40m at 4K, 70m at 1080p) £309 £370.80
