Kramer EXT3-H-R
1:1 4K60 4:4:4 HDMI / RS-232 / IR over HDBaseT 3.0 Receiver
1 × HDBaseT Input; 1 × HDMI, 1 × RS-232, 1 × IR Output ; Max 40m @ 4K/60Jz 4:4:4, 70m @ 4K/30Hz 4:4:4 or 1080p
£282 (£338.40 inc. VAT)
Availability: In stock
Kramer EXT3-H-R (50-80602090)
The Kramer EXT3-H-R is a high-performance, HDBaseT 3.0 receiver for 4K60 4:4:4 HDR HDMI, RS-232 and IR signals over twisted pair. EXT3-H-R converts the HDBaseT 3.0 signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 40m (130ft) over Kramer copper CAT cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT-compliant extenders at up to 4K@60Hz 4:4:4 video resolutions.
See also: Kramer EXT3-H-TKramer EXT3-H-R Key Features
- High Performance Standard Extender — Professional HDBaseT extender for providing signals over twisted-pair copper infrastructures. Video signals are received uncompressed with near-zero latency.
- Future-proof, Standard Extender — EXT3-H-R is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals
- Intelligent Compression Handling — HDR HDCP 2.3 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
- Multi-channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension — Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200 bps with no need for pre configuration.
- Bidirectional Infrared Extension — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Cost-Effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Easy Installation — Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click
Here for details)
- Order Code: 50-80602090
Kramer EXT3-H-R Downloads
Kramer EXT3-H-R Specifications
Connectivity
Input
HDBaseT 3.0: On a RJ45 connector
Outputs
1 × HDMI: On a female HDMI connector
1 × RS-232: On a 3-pin terminal block connector for serial link extension
1 × IR: On a 3.5mm mini jack connector
Extension Line
Standard Compression
Up to 40m (130ft) at 4K@60Hz (4:4:4)
High Compression
Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Standards Compliance
HDBaseT 3.0
Note
When using recommended Kramer cables
Video
Max Data Rate
Up to 18Gbps (6Gbps per graphic channel)
Compliance
HDCP 2.3, HDR 10
HDMI Support
Deep Colour , x.v.Colour ™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b
Bidirectional RS-232
300 to 115200 baud rate
Bidirectional IR
20kHz to 100kHz frequency
User Interface
Indicators
IN, OUT, LINK and ON LEDs
Controls
DIP-switches
Mechanical
Power Source
12V DC, 2A
Consumption
450mA
Operating Temp
0° to +40°C (32° to 104°F)
Storage Temp
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RHL non-condensing
Enclosure Size
DigiTOOLS®
Type
Aluminium
Cooling
Convection ventilation
Product Dimensions
12.00cm × 7.15cm × 2.44cm
(4.72" × 2.81" × 0.96" ) W×D×H
Product Weight
0.3kg (0.6lbs) approx
Shipping Dimensions
49.00cm × 18.60cm × 58.80cm
(19.29" × 7.32" × 23.15" ) W×D×H
Shipping Weight
0.7kg (1.5lbs) approx
Product Dimensions
12.00cm × 7.15cm × 2.44cm
(4.72" × 2.81" × 0.96" ) W×D×H
Product Weight
0.2kg (0.5lbs) approx.
Shipping Dimensions
15.70cm × 12.00cm × 8.70cm (6.18" × 4.72" × 3.43" ) W×D×H
Shipping Weight
0.7kg (1.5lbs) approx.
In The Box
Power adapter, power cord, bracket set
Regulatory Compliance
Safety
CE, UL
Environmental
RoHs, WEEE

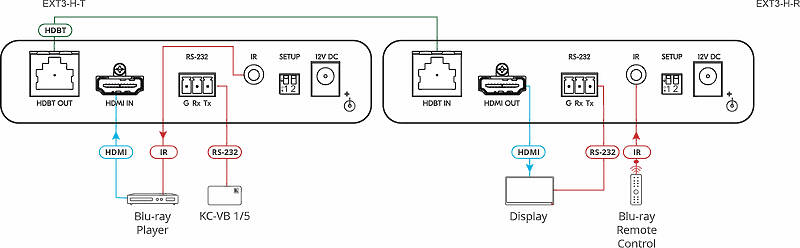

Kramer EXT3-H-R Usage Diagram
£282 (£338.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer EXT3-H-R (50-80602090)
The Kramer EXT3-H-R is a high-performance, HDBaseT 3.0 receiver for 4K60 4:4:4 HDR HDMI, RS-232 and IR signals over twisted pair. EXT3-H-R converts the HDBaseT 3.0 signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 40m (130ft) over Kramer copper CAT cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT-compliant extenders at up to 4K@60Hz 4:4:4 video resolutions.
See also: Kramer EXT3-H-T
Kramer EXT3-H-R Key Features
- High Performance Standard Extender — Professional HDBaseT extender for providing signals over twisted-pair copper infrastructures. Video signals are received uncompressed with near-zero latency.
- Future-proof, Standard Extender — EXT3-H-R is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals
- Intelligent Compression Handling — HDR HDCP 2.3 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
- Multi-channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension — Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200 bps with no need for pre configuration.
- Bidirectional Infrared Extension — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Cost-Effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
- Easy Installation — Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 50-80602090
Kramer EXT3-H-R Downloads
Kramer EXT3-H-R Specifications
Connectivity |
|
| Input | HDBaseT 3.0: On a RJ45 connector |
| Outputs | 1 × HDMI: On a female HDMI connector |
| 1 × RS-232: On a 3-pin terminal block connector for serial link extension | |
| 1 × IR: On a 3.5mm mini jack connector | |
Extension Line |
|
| Standard Compression | Up to 40m (130ft) at 4K@60Hz (4:4:4) |
| High Compression | Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp) |
| Standards Compliance | HDBaseT 3.0 |
| Note | When using recommended Kramer cables |
Video |
|
| Max Data Rate | Up to 18Gbps (6Gbps per graphic channel) |
| Compliance | HDCP 2.3, HDR 10 |
| HDMI Support | Deep Colour , x.v.Colour ™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b |
| Bidirectional RS-232 | 300 to 115200 baud rate |
| Bidirectional IR | 20kHz to 100kHz frequency |
User Interface |
|
| Indicators | IN, OUT, LINK and ON LEDs |
| Controls | DIP-switches |
Mechanical |
|
| Power Source | 12V DC, 2A |
| Consumption | 450mA |
| Operating Temp | 0° to +40°C (32° to 104°F) |
| Storage Temp | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Enclosure Size | DigiTOOLS® |
| Type | Aluminium |
| Cooling | Convection ventilation |
| Product Dimensions | 12.00cm × 7.15cm × 2.44cm |
| (4.72" × 2.81" × 0.96" ) W×D×H | |
| Product Weight | 0.3kg (0.6lbs) approx |
| Shipping Dimensions | 49.00cm × 18.60cm × 58.80cm |
| (19.29" × 7.32" × 23.15" ) W×D×H | |
| Shipping Weight | 0.7kg (1.5lbs) approx |
| Product Dimensions | 12.00cm × 7.15cm × 2.44cm |
| (4.72" × 2.81" × 0.96" ) W×D×H | |
| Product Weight | 0.2kg (0.5lbs) approx. |
| Shipping Dimensions | 15.70cm × 12.00cm × 8.70cm (6.18" × 4.72" × 3.43" ) W×D×H |
| Shipping Weight | 0.7kg (1.5lbs) approx. |
| In The Box | Power adapter, power cord, bracket set |
Regulatory Compliance |
|
| Safety | CE, UL |
| Environmental | RoHs, WEEE |
Kramer EXT3-H-R Usage Diagram
