Kramer SWT3-31-HU

3:1 HDMI 2.0 Automatic Switcher

2 × HDMI, 1 × USB-C inputs; 2 × HDMI outputs; Max Bandwidth 18Gbps

£684 (£820.80 inc. VAT)
Availability: In stock

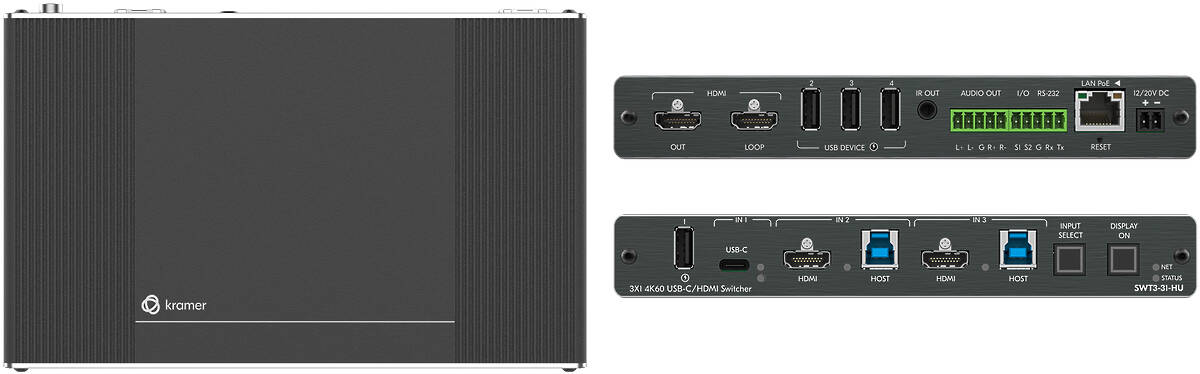

Kramer SWT3-31-HU (50-80583090)

The Kramer SWT3-31-HU is a high-performance auto-switcher with one USB-C and two HDMI/USB inputs and HDMI output. The connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient hybrid meeting operation with both room and online participants.

Kramer SWT3-31-HU Key Features

  • Hybrid–meeting Collaborative Switching — Controllable coupled–signals switching of both AV and USB host inputs, for concurrent connection with AV output and space USB devices, allows collaborative hybrid meeting where multiple meeting participants are switched to share their content with both room and online meeting participants.
  • BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device with USB 2.0 and Ethernet connection, and (if PD–2.0–capable) up to 60 watts of power, via a single USB–C cable connection only.
  • HDMI Signal Switching — HDCP 2.3 compliant, supporting deep color, x.v.Color™, CEC, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
  • USB 3.1 Switching — USB 3.1 signals switching, enables high data–rate connection between active USB host and space USB devices, such as 4K camera, high–quality audio devices, and HID (Human Interface Devices) mouse or keyboard devices.
  • HDMI Mirroring — Active USB–C or HDMI input signal is mirrored to loop output port for connecting a local monitor or adding an additional unit in a daisy chain
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation.
  • Audio De–embedding — The digital audio signal passing–through to the output, is de–embedded, converted to an Analogue signal and sent to the stereo balanced Analogue audio output. This enables playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).
  • Auto Switcher Ease of Use — Automatically plays signal of the plugged source on the connected display, according to user–configured preferences, such as last–connected input.
  • Display On/Off Operation — Meeting presentation is simplified by manually or automatically turning ON/OFF a CEC–enabled or serially–controlled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
  • Simple Control — Remote IP–controller connection, browser operation webpage, local panel buttons, or remotely connected contact–closure buttons, for easy and fully flexible user ports selection, signals routing, and switcher control.
  • Built–in Intelligent Control Gateway — Remote IP–driven intelligent control of connected AV, USB and sensor devices via CEC, RS–232, IR or I/O. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.
  • Secured Network Connection — Standard IT–grade 802.1x authentication for secured IT LAN connectivity.
  • Comprehensive Management — Local panel indication LEDs to facilitate easy local maintenance and troubleshooting. Remote IP–driven firmware upgrade and management via user–friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.
  • Easy and Elegant Installation — PoE powering via LAN port connection, and MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter, for easy switcher deployment
  • Convenient Display Power On/Off Control — Simply press the DISPLAY ON button to toggle on and off the power of the connected CEC–enabled display, with awareness of display power on/off status via button LED indication.
  • Easy Online Meeting System Integrated Connectivity — Built–in flexible auto–disconnection operation of USB devices, such as space cameras and soundbars, enable detection of BYOD presenter disconnection by online meeting systems for their auto–activation, convenient integration, and ease of end–user operation according to space changing hybrid sessions needs
  • 7 year warranty (Click Here for details)
  • Order Code: 50-80583090

Kramer SWT3-31-HU Downloads

RS-232 Control
HDMI
Audio
Auto Switching
Deep Colour Support
4K 4096*2160 and 3840*2160 Resolution
HDMI 2.0
USB-C

Kramer SWT3-31-HU Specifications

Connectivity

Inputs 1 × DisplayPort Alt Mode & PD 3.0 USB on a USB type-C female connector
2 × HDMI on HDMI female connectors
Outputs 1 ×HDMI on a HDMI female connector
1 × HDMI Loop on a HDMI female connector
1 × Balanced Stereo Audio Line on 5-pin terminal block connector
1 × IR On a 3.5mm mini jack for IR extension
Ports 1 × USB 3.1 Host on a USB-C female connector
2 USB 3.1 Host on a USB-B female connector
4 USB 3.1 Device on USB type-A female connectors
1 Ethernet on an RJ45 female connector for LAN connection
1 RS-232 on a 3-pin terminal block
2 GPIO on a 2-pin terminal block

USB Features

USB 3.1 Data Rate Up to 10Gbps
Integrated USB Hubs 1
Standards Compliance USB 3.2 GEN 2, 2.0 and 1.1
USB 3.1 Data Rate Up to 10Gbps

Video Specifications

Max Data Rate 18Gbps bandwidth (6Gbps per graphic channel)
Max Resolution 4K@60Hz (4:4:4) resolution
Content Protection HDCP 2.3
HDMI Support Deep Colour , 3D, HDR as specified in HDMI 2.0b

Analogue Audio

Max Output Signal Level 14.5dBu
Impedance 500Ω
Bandwidth 20Hz - 20kHz
Crosstalk -114dB
THD + N 0.005% @1kHz at nominal level
S/n Ratio 85dB, 20Hz - 20kHz
Coupling DC

Mechanical

Power Source 20V DC: 6A (included)
Note for HW Rev 02 and higher, 20V PSU (power supply unit) is included (replacing the 12V PSU)
Consumption 4.4A
Max. Power 84W
PoE Consumption 144mA
Max. Power 7.8W
USB-C Charging Max. Power 60W
When powered with 20V power supply only
Compliance PD 3.0
USB Device Charging 2A Max. Total Current
Enclosure Size Mega Tool
Type Aluminium
Cooling Convection Ventilation
Product Dimensions 19.00cm × 11.60cm × 2.70cm
(7.48" × 4.57" × 1.06" ) W×D×H
Product Weight 0.6kg (1.2lbs) approx.
Shipping Dimensions 34.50cm × 16.50cm × 5.20cm
(13.58" × 6.50" × 2.05" ) W×D×H
Shipping Weight 1.2kg (2.6lbs) approx.

Environmental Conditions

Operating Temperature 0° to +40°C (32° to 104°F)
Storage Temperature -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing

Kramer SWT3-31-HU Usage Diagram
