CYP RE-EDID
HDMI 1.3 EDID Emulator
£100 (£120.00 inc. VAT)
Availability: In stock
Availability: In stock
CYP RE-EDID
The CYP RE-EDID is designed to allow the adjustment and manipulation of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theatre installation, and video/audio equipment testing, the unit features a learning function allowing the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes. This device is perfect to overcome source and screen compatibility issues, particularly when integrating PC's into an AV system.
CYP RE-EDID Key Features
- HDMI 1.3 and DVI 1.0 compliant
- Supports resolutions up to and including 1080p @ 60Hz and 4K x 2K @ 24/30Hz
- Supports up to 16-bit Deep Colour
- HD Audio Support : LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio (Sampling rates from 32 kHz to 192 kHz)
- Supports 8 sets of default EDID settings

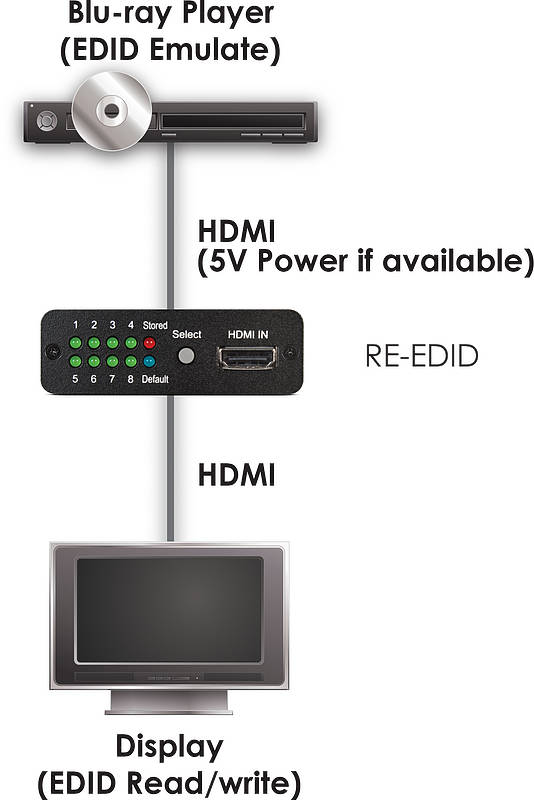

- Supports Four different EDID modes : Read / Write / Emulate / Bypass modes
- Read Mode : Reads the TV/display’s EDID information
- Write Mode : Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)
- Emulator Mode : Allows the source device to read the selected EDID information from the unit’s default or learnt EDID memory
- Bypass Mode : Allows the source device to read the EDID information from the TV/display directly
- Supports DVI sources when used with a DVI to HDMI adaptor (not supplied)
- Supports CEC functionality
- Can be powered via USB or HDMI input
CYP RE-EDID Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-050M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 0.5m | £21 | £25.20 | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £22 | £26.40 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £25 | £30.00 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £29 | £34.80 | |
| CYP HDMP-500M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 5.0m | £44 | £52.80 | |
| CYP HDMP-600M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 6.0m | £43 | £51.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £10 | £12.00 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £11 | £13.20 |
