CYP PUV-2010TXWP
1:1 HDBaseT 2.0 4K HDMI / HDCP2.2 / PoH / LAN / OAR / ARC / USB / IR / RS-232 Wall Plate Transmitter
Max 100m @ 4K using CAT6a/7 cable
Availability: In stock

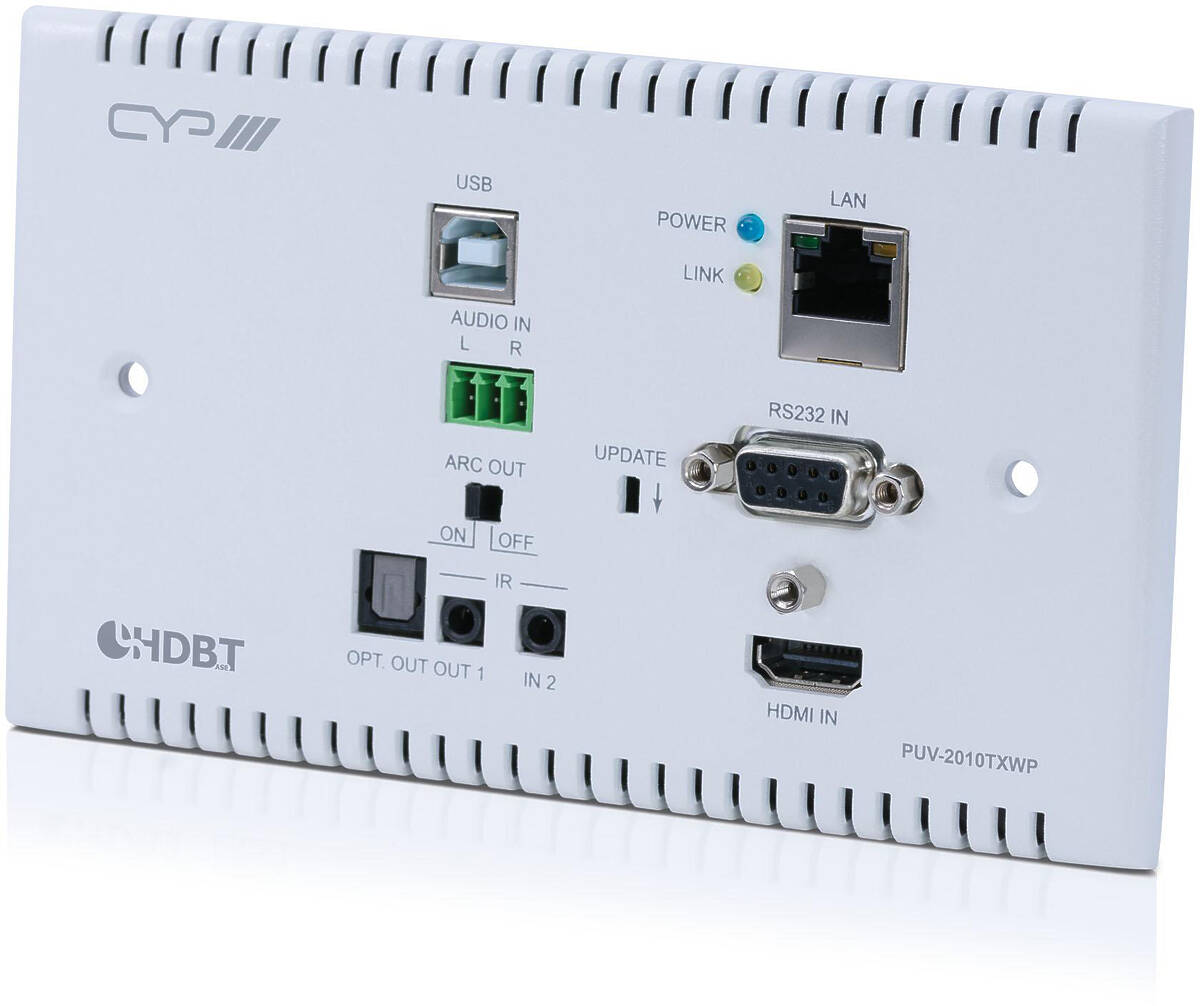

CYP PUV-2010TXWP
The PUV-2010TX Wall Plate Transmitter enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoC (Power over Cable), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
See also: CYP PUV-2010RXWP
CYP PUV-2010TXWP Key Features
- Supports full HDBaseT 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
- HDCP 2.2, HDMI and DVI compatible
- HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoC (Power over Cable) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical audio return (OAR)
- Supports optical sampling rate up to 48kHz
- Audio return channel (ARC)
- Dedicated channel for analogue stereo audio transmission from the transmitter to a compatible receiver
- USB 2.0 Data Serving from Transmitter (single USB) to Receiver (2x USB)
- Fits in standard UK double-gang back-box
CYP PUV-2010TXWP Downloads

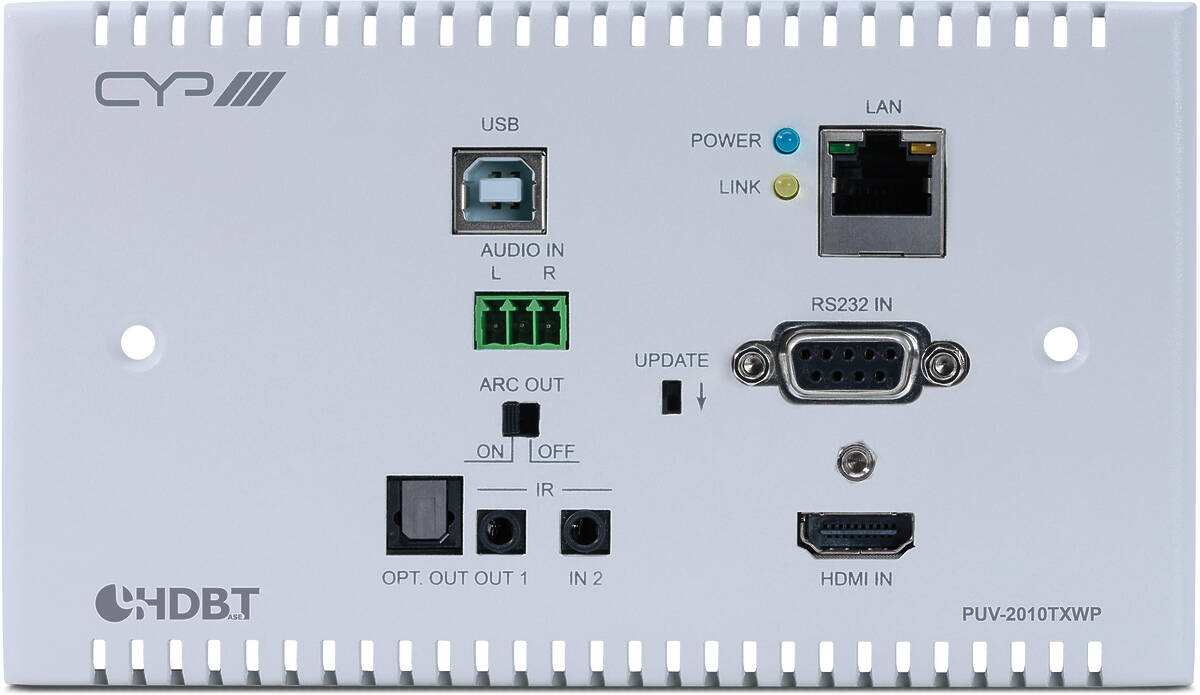

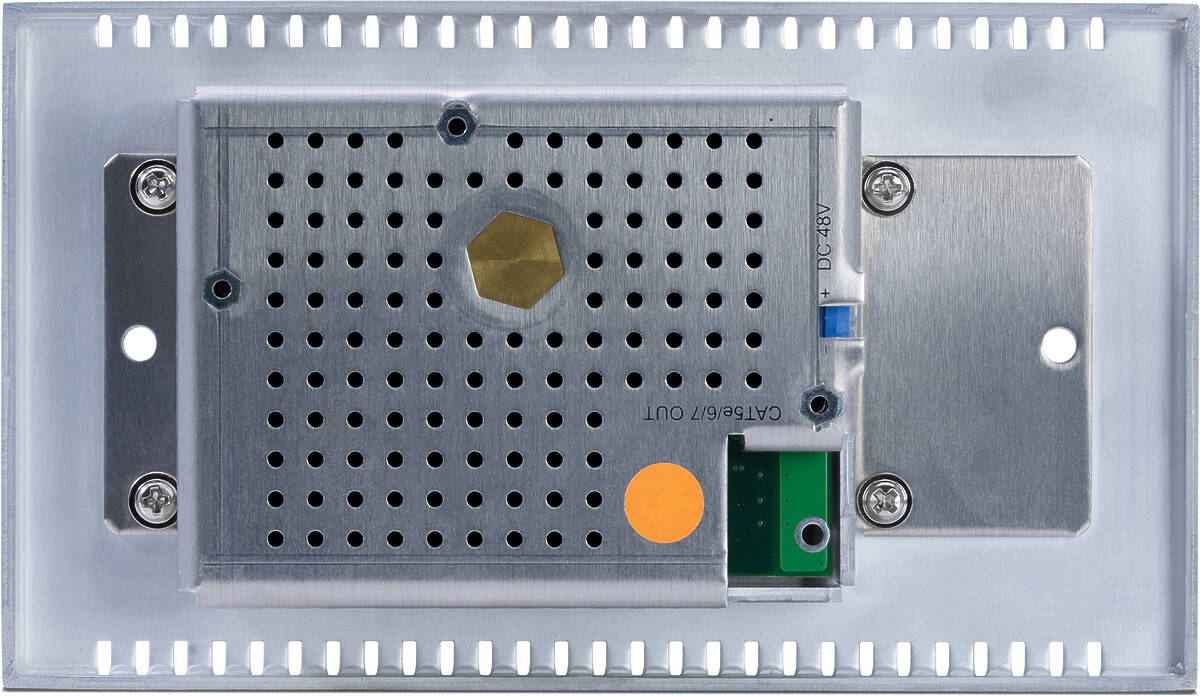

CYP PUV-2010TXWP Specifications
Connectivity |
|
| Inputs | 1x HDMI HDMI Uncompressed AV and Data |
| 1 × USB Type B USB Propriety Data | |
| 1 × 3.5mm Stereo mini-jack Infra Red Emitter | |
| 1 × Phoenix (3 pin) Stereo (L/R) Audio Input | |
| Outputs | 1x RJ45 HDBaseT 2.0 HDMI & Propriety Data |
| 1 × Toslink Optical DTS / Dolby Digital / 2 Channel LPCM | |
| 1 × 3.5mm Stereo mini-jack Infra Red Receiver | |
| 1 × 9pin D-sub RS-232 Data | |
Mechanical |
|
| PSU | 48V/0.83A |
| Dimensions | 90mm W × 156mm D × 42mm H |
| Net Weight | 290g |
| Gross Weight | 700g |

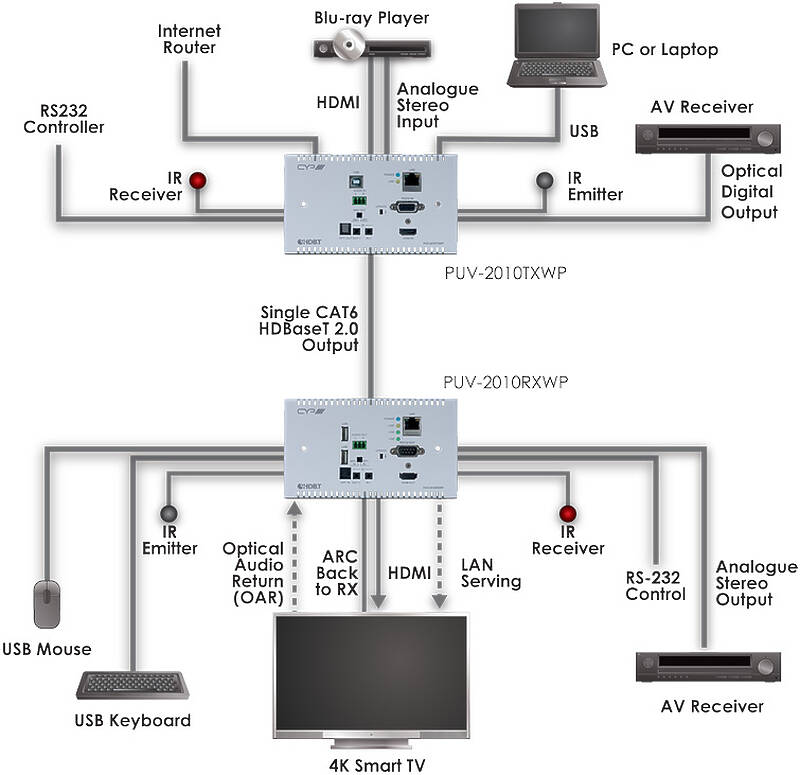

CYP PUV-2010TXWP Usage Diagram
