CYP PUV-2010RXWP
1:1 HDBaseT 2.0 4K HDMI / HDCP2.2 / PoH / LAN / OAR / ARC / USB / IR / RS-232 Wall Plate Receiver
Max 100m @ 4K using CAT6a/7 cable
£545 (£654.00 inc. VAT)
Availability: In stock
Availability: In stock
CYP PUV-2010RXWP
The PUV-2010RXWP UK Wall Plate Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoC (Power over Cable), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
See also: CYP PUV-2010TXWP
CYP PUV-2010RXWP Key Features
- Supports full HDBaseT 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
- HDCP 2.2, HDMI and DVI compatible
- HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoC (Power over Cable) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical audio return (OAR)
- Supports optical sampling rate up to 48kHz
- Audio return channel (ARC)
- Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
- Receiver features 2 x USB 2.0 ports
- Fits in a standard UK standard double-gang back-box
CYP PUV-2010RXWP Downloads
CYP PUV-2010RXWP Specifications
Connectivity |
|
| Inputs | 1x RJ45 HDBaseT 2.0 HDMI & Propriety Data |
| 1 × Toslink Optical DTS / Dolby Digital / 2 Channel LPCM | |
| 1 × 3.5mm Stereo mini-jack Infra Red Emitter | |
| Outputs | 1x HDMI HDMI Uncompressed AV and Data |
| 1 × USB Type A USB Propriety Data | |
| 1 × 3.5mm Stereo mini-jack Infra Red Receiver | |
| 1 × Phoenix (3 pin) Stereo (L/R) Audio Output | |
| 1 × 9pin D-sub RS-232 Data | |
Mechanical |
|
| Poe PSU | PoC |
| Dimensions | 90mm W × 156mm D × 42mm H |
| Net Weight | 285g |
| Gross Weight | 600g |

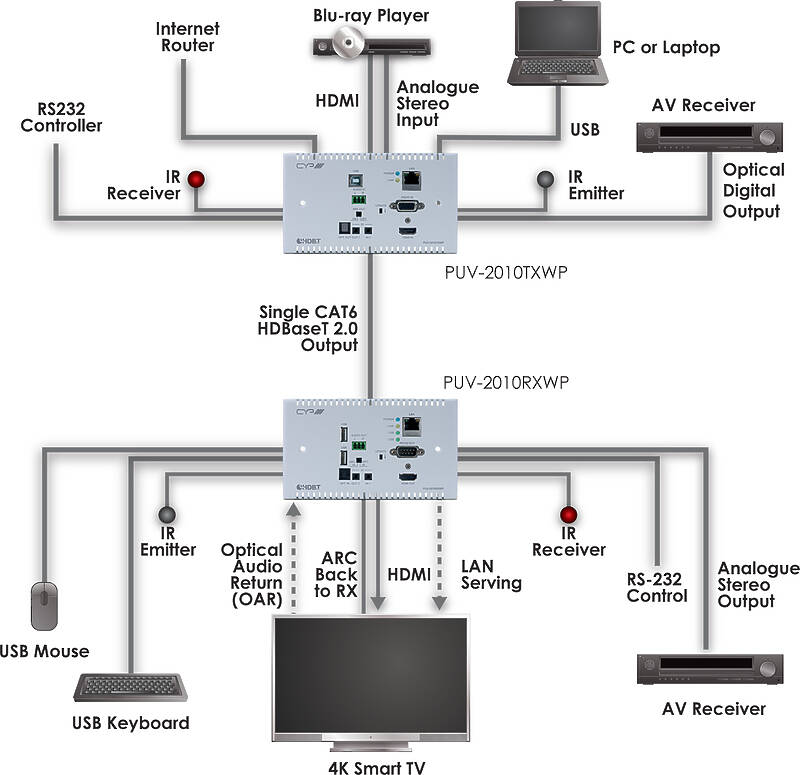

CYP PUV-2010RXWP Usage Diagram
