CYP OR-32USBC-4K22
3×2 HDMI / USB-C Matrix Switcher with USB 3.0 hub
2 × HDMI, 1 × USB-C inputs; 2 × HDMI outputs; 4k60Hz, HDR10, HLG
£482 (£578.40 inc. VAT)
Availability: In stock
Availability: In stock
CYP OR-32USBC-4K22
The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.
This matrix also includes a USB 3.0 hub with two host ports (Type-B and Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion. This unit is controllable via front panel controls, WebGUI, Telnet and RS-232.
CYP OR-32USBC-4K22 Key Features
- 2 × HDMI and 1 USB-C 4K60Hz 4:4:4 inputs
- 2 × Matrixed HDMI output with output A supporting 4K downscaling to 1080p
- USB-C port supports USB 3.0 speed, device powering 20V/3A and one gigabit Ethernet at best
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Support USB 3.0 with one USB type B and one USB type C interface for connection to a host PC, plus two USB type A ports for peripheral devices such as keyboard, mouse and storage extension
- Supports auto-switch functionality with a "last memory" feature for both input ports and USB ports
- Supports basic signal event automation (via RS-232, IP or CEC)
CYP OR-32USBC-4K22 Downloads
CYP OR-32USBC-4K22 Specifications
| Inputs | 1 × USB-C USB-C / Thunderbolt |
| 2 × HDMI HDMI Uncompressed AV and Data | |
| 2 × USB Type A USB Propriety Data | |
| 1 × Phoenix (4 pin) RS-232 local control | |
| 1 × RJ45 LAN Serving | |
| Outputs | 2 × HDMI HDMI Uncompressed AV and Data |
| 1 × USB 3 Type B Power & Data | |
| 1 × 3.5mm Stereo mini-jack Analogue Stereo(L/R) | |
| 1 × Phoenix (4 pin) RS-232 local output |
| PSU | 24V/5A |
| Dimensions | 231mm [W × 108mm [D × 25mm [H |
| Net Weight | 750g |
| Gross Weight | 1670g |

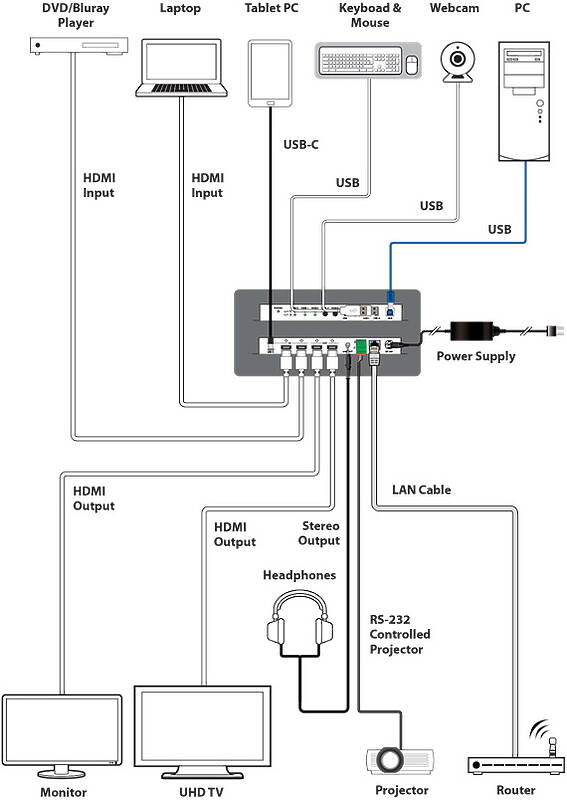

CYP OR-32USBC-4K22 Usage Diagram
