CYP OR-32SDMI
3×2 HDMI / USB-C Matrix Switcher
1 × HDMI, 1 × USB-C / ThunderBolt, 1 × SDM slot inputs; 2 × HDMI outputs
£534 (£640.80 inc. VAT)
Availability: In stock
Availability: In stock

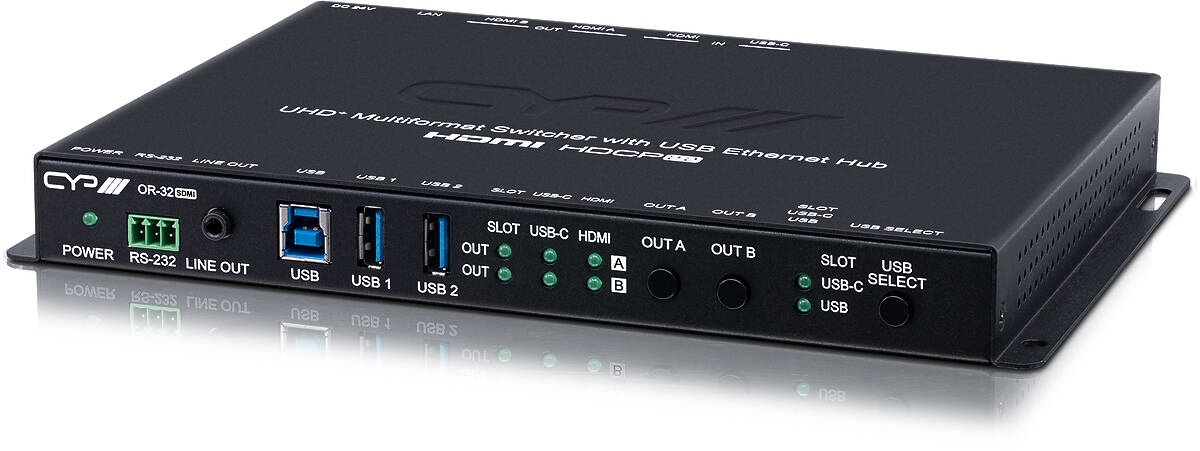

CYP OR-32SDMI
The CYP OR-32SDMI is a 3×2 matrix switch for use in a wide range of multi-format signals where the 3rd input is a SDM module slot for use with any SDMI (input) based modules, such as the SDM-WPS-HP wireless presentation module.
With the commonly used HDMI outputs, this unit can switch video signals between HDMI, USB-C and the desired installed input module.
This matrix switcher supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via WebGUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.
CYP OR-32SDMI Key Features
- 3 × 2 HDMI output matrix with USB-C, HDMI and SDM module slot inputs
- One input module card slot for CYP SDM series module cards. Look for SDM- product codes
- Supports USB 3.0 with one USB-B port, one USB-C port for connecting to a host PC, and two USB-A ports for peripheral devices and storage extension.
- Supports gigabit Ethernet
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats.
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Supports basic signal event automation (via RS-232, IP or CEC)
CYP OR-32SDMI Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| CYP MA-421 | 4 × 2+1 4K HDR HDMI/HDBaseT Matrix Switcher/Scaler 4 × HDMI inputs; 1 × HDMI, 2 × HDBaseT outputs; Max 18Gbps, 4K @50/60Hz 4:4:4 8-bit | £893 | £1071.60 |
| CYP MA-U42 | 4 × 2 HDMI 2.0 Matrix Switch with microphone input and audio amplifier 2 × HDMI 1 × DisplayPort, 1 × VGA inputs; 2 × HDMI outputs; Max bandwidth 18Gbps | £355 | £426.00 |
| CYP OR-32USBC-4K22 | 3 × 2 HDMI / USB-C Matrix Switcher with USB 3.0 hub 2 × HDMI, 1 × USB-C inputs; 2 × HDMI outputs; 4k60Hz, HDR10, HLG | £482 | £578.40 |
| CYP OR-42-4K22 | 4 × 2 4K HDMI 2.0 Matrix Switch 4 × HDMI inputs; 2 × HDMI outputs; Max bandwidth 18Gbps | £344 | £412.80 |
| CYP OR-42CD-4K22 | 4 × 2 4K HDMI 2.0 Matrix Switch with Audio De-Embedding 4 × HDMI inputs; 2 × HDMI outputs; Max bandwidth 18Gbps | £186 | £223.20 |
| CYP OR-42SA-4K22 | 4 × 2 4K HDMI 2.0 Matrix Switch with Audio De-Embedding 4 × HDMI inputs; 2 × HDMI outputs; Max bandwidth 18Gbps | £395 | £474.00 |
| Blustream CMX42AB | 4 × 2 HDMI 2.0 Matrix Switcher 4 × HDMI Inputs; 2 × HDMI outputs; Max 18Gbps; | £320 | £384.00 |
| Kramer MV-4X | 4 × 2 4K HDMI Multi-Window Seamless Matrix Switcher 4 × HDMI inputs; 1 × HDMI, 1 × HDBaseT outputs; Max 18Gbps | £1840 | £2208.00 |
| Kramer VS-42H2 | 4 × 2 4K HDMI HDR Matrix Switcher with audio de-embed 4 × HDMI inputs; 2 × HDMI outputs; Max. bandwidth 18Gbps | £783 | £939.60 |
| Lightware MMX4x2-HDMI | 4 × 2 HDMI Matrix Switcher 4 × HDMI inputs; 2 × HDMI outputs; 4K/UHD support | £1280 | £1536.00 |
| Lightware MMX4x2-HDMI-USB20-L | 4 × 2 4K HDMI Matrix Switcher with USB 2.0 Switch Hub 4 × HDMI inputs; 2 × HDMI outputs; 4K/UHD support | £1860 | £2232.00 |
| Lightware MMX4x2-HT200 | 4 × 2 HDMI and HDBaseT Matrix Switcher 3 × HDMI, 1 × HDBaseT inputs; 2 × HDMI outputs; Max. 170m @ 1080p on HDBaseT input | £1700 | £2040.00 |
| Lightware UCX-4x2-HC30D | 4 × 2 Taurus HDMI 2.0 and USB 3.1 Switcher with USB 3.1 Switch Hub and DANTE 2 × HDMI, 2 × USB 3.1 inputs ; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2990 | £3588.00 |
| Lightware UCX-4x2-HC40 | 4 × 2 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 2 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £2660 | £3192.00 |
| Lightware UCX-4x3-HC40 | 4 × 3 Taurus HDMI 2.0 and USB 3.1 Matrix Switcher with USB 3.1 Switch Hub 2 × HDMI, 2 × USB 3.1 inputs; 3 × HDMI outputs; 4K/UHD support, Max. 18Gbps HDMI, 5Gbps USB | £3010 | £3612.00 |
