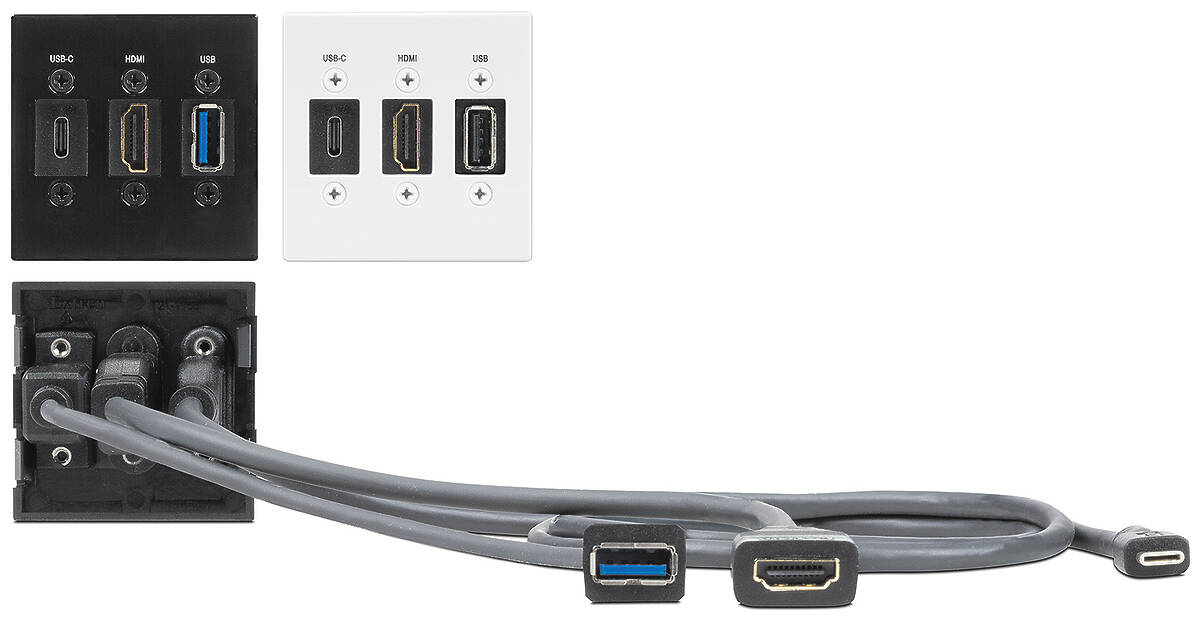

Extron Flex55 SuperPlate 170 (70-1143-72)
HDMI, USB 2, and USB-C pass-through finished in black
The Flex55 SuperPlate Series provides convenient, pass-through connectivity for HDMI, DisplayPort, VGA, Stereo Audio, and USB signals. For ease of installation, HDMI, DisplayPort, VGA, and USB connections utilise short, female to female pigtail cables, while PC Audio connections are facilitated by a 3.5 mm stereo mini jack to pigtail with captive screw assembly. The audio port can be covered when not in use. Flex55 SuperPlates are compatible with Extron’s Flex55™ mounting system, such as the Flex55 102 EU mounting kit and the EWB 212 external wall box, to accommodate two or more Flex55 or EU modules. In addition, they can be installed in a contemporary Cable Cubby F55 enclosure to provide a fully customisable AV solution and easy access to various Extron devices. Flex55 SuperPlates are available in a durable black or white finish.
Extron Flex55 SuperPlate 170 Key Features
- For use with Extron's elegant Flex55 frames and enclosures
- Ideal in Cable Cubby F55 enclosures with other Flex55 and EU modules for a fully customisable AV solution
- Flex55™ SuperPlates for HDMI, DisplayPort, VGA, Stereo Audio, or USB -
- - HDMI: HDMI female to HDMI female 12.75" (324 mm) pigtail
- - DisplayPort: DisplayPort female to DisplayPort female on 13.30" (338 mm) pigtail
- - VGA: VGA 15-pin female to VGA 15-pin female on 9” (228 mm) pigtail
- - Stereo Audio: Stereo Audio 3.5 mm stereo mini jack to captive screw on 10.25" (260 mm) pigtail
- - USB 2.0: Type‑A female to Type‑A female on 12.30" (312 mm) pigtail
- - USB 3.2: Type‑A female to Type‑B female on 10" (25 cm) pigtail
- - USB-C: USB-C female to USB-C male on 3' (91.44 cm) pigtail
- - HDMI: 4K HDMI female to HDMI female on pigtail
- - DisplayPort: 4K DisplayPort female to DisplayPort female on pigtail
- - USB 3 transfers data between USB devices at rates up to 5 Gbps
- - USB-C supports transmission of 4K/60 video, audio, and 5 Gbps of data between devices, along with 60 W of power
- Signals passed through unprocessed
- Supports DDC transmission - Facilitates EDID communication between the display and connected HDMI, DisplayPort, and VGA sources.
- Available in black or white
- Cable access enclosures and other mounting hardware sold separately
