Vivitek DW284-ST Projector


Vivitek DW284-ST Key Features

  • DLP Display Technology
  • 3,700 Lumens
  • Wide XGA Resolution
  • 5,500 hour lamp life (typical)
  • 20,000:1 Contrast Ratio
  • 2.6kg (5.7lb.)
  • Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports
  • Ultra Short Throw (0.49:1)
  • Native Widescreen
  • Monitor Out

Vivitek DW284-ST Downloads


Vivitek DW284-ST Specifications

Categories Portable
Portable Widescreen
Ultra Short Throw
Manufacturer Vivitek (Click for rest of range)

Vivitek DW284-ST Optical Features

System 1*0.65" DMD Chip
Resolution WXGA (1280*800)
Aspect Ratio 16:10
Lumens 3,700
Contrast 20,000:1
Lamp UHP; P/N XX581000560
Lamp Life 5,500hrs. (10,000hrs. ECO mode)
Interchangeable No
Zoom Range Fixed
Throw Ratio 0.49 - 0.49:1
Image Size 50"-100" diagonal
Throw Distance 0.53-1.09m
Throw distance for 100" image 1.06 - 1.06m
Lens Shift No
KeystoneCorrection ±40° (Vertical)

Vivitek DW284-ST Compatibility

Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

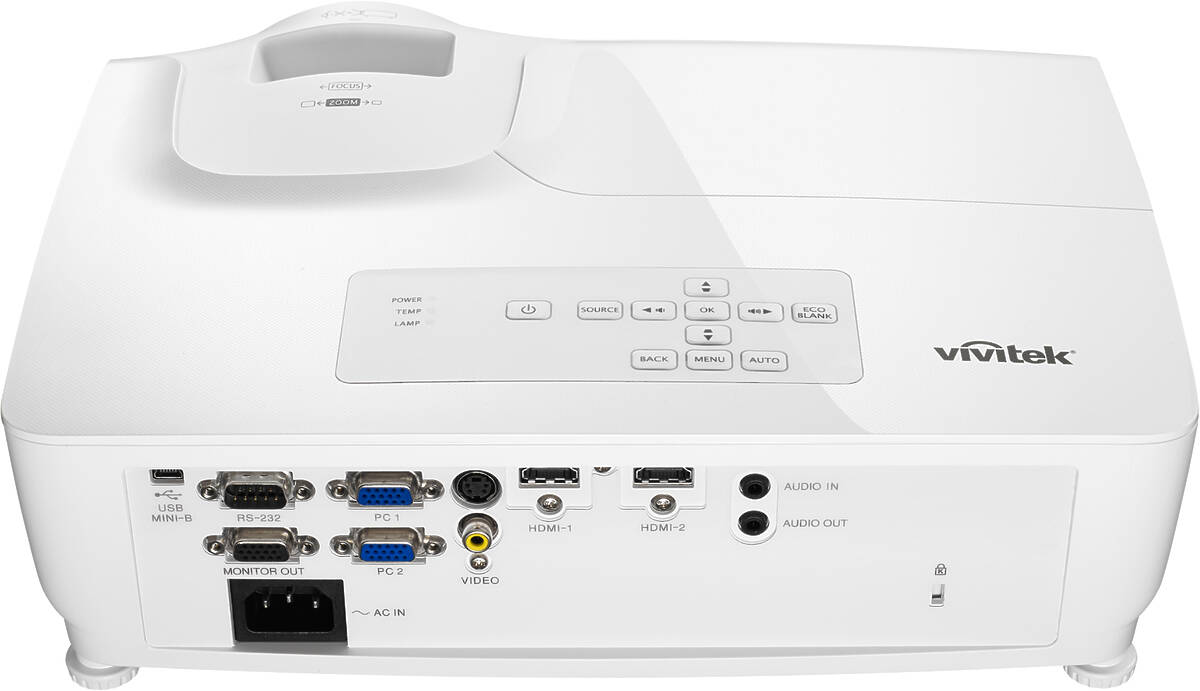

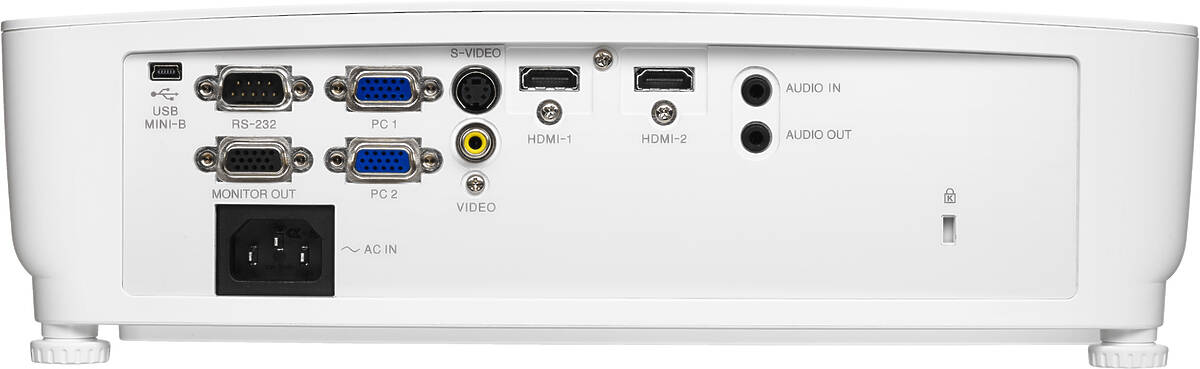

Vivitek DW284-ST Terminals

HDMI 2
RGBHV (15-pin HD) 2
S-Video 1
Composite 1
Monitor Out Yes
Audio In 1
Audio Out 1
USB 1
RS-232 1

Vivitek DW284-ST General

Speakers 2W
Remote Control Vivitek DW284-ST only
Noise 32db (29db ECO mode)
Dimensions 331*105*244mm (W*H*D)
Weight 2.60kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 250Watts
Manufacturers Warranty 2 year return to base
Light Source Warranty 1 year/1000 hours (whichever first)

Vivitek DW284-ST Package Contents

Accessories VGA Cable
User Manual (CD)
Quick Start Guide
Warranty Card (by region)
Remote Controller (with battery)
AC Power Cord

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DW284-ST Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
BenQ MW560 DLP 4000 2.3 £390 £468.00
Vivitek DW275-EDU DLP 4000 2.6 £392 £470.40
Vivitek DW284-ST-EDU DLP 3700 2.6 £464 £556.80
