Panasonic PT-LMW420 Projector

£1369 (£1642.80 inc. VAT)
Availability: Please Call

Panasonic PT-LMW420 Key Features

• LCD Display Technology
• 4200 Lumens Colour Light Output
• Wide XGA Resolution
• 20,000 hour lamp life (typical)
• 3,000,000:1 Contrast Ratio
• 4.2kg (9.3lb.)
• 360° Installation
• Native Widescreen
• PC Free Presentations
• Portrait Mode
• Can Be Installed Vertically
• Monitor Out
• Network Control

Panasonic PT-LMW420 Downloads

Brochure

Instruction Manual

• Conference rooms (20 - 50 people)
• Horizontal Surface Projection
• LED/Laser
• Meeting Room Projectors
• PC Free Presentations
• Portrait Mode Applications

Panasonic PT-LMW420 Throw Chart (Click for details)

Panasonic PT-LMW420 Specifications

Categories	LED/Laser Office / Desktop PC Free Portable Portable Widescreen
Manufacturer	Panasonic (Click for rest of range)
Panasonic PT-LMW420 Optical Features
System	3 * 0.64" LCD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	4,200
Colour Light Output	4200 Lumens
Contrast	3,000,000:1
Lamp	Laser diodes
Lamp Life	20,000hrs. (24,000hrs. ECO mode)
Lens	F 1.61-1.76, f 19.1-23.0 mm
Interchangeable	No
Zoom Range	1.2x
Throw Ratio	1.36 - 1.64:1
Image Size	30"-300" diagonal
Throw Distance	0.88-10.60m
Throw distance for 100" image	2.93 - 3.53m
Lens Shift	No
KeystoneCorrection	±25° (Vertical)
	±35° (Horizontal)
Panasonic PT-LMW420 Compatibility
Computer Resolutions	UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	4K, UHD, HD, 720p, PAL, SECAM, NTSC

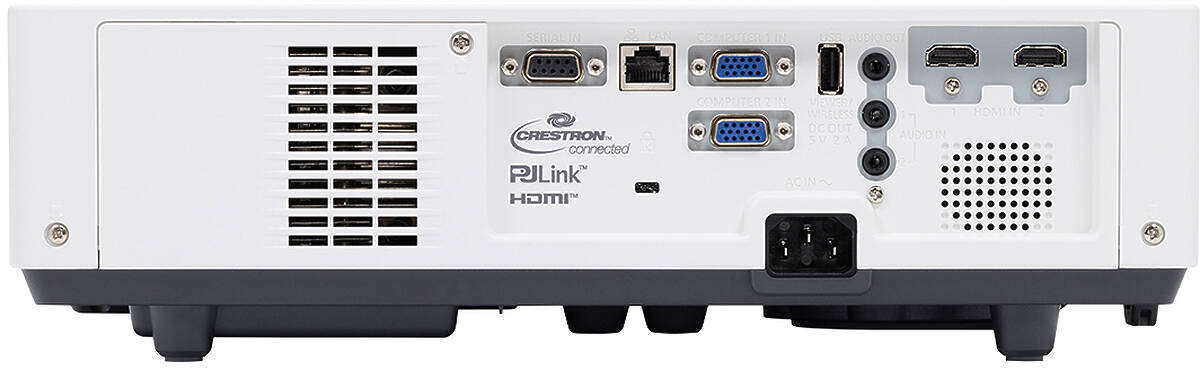

Panasonic PT-LMW420 Terminals
HDMI	2
RGBHV (15-pin HD)	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	1
RS-232	1
Network Ready	Yes
Panasonic PT-LMW420 General
Speakers	10w mono
Remote Control	Panasonic PT-LMW420 only
Noise	35db (23db ECO mode)
Dimensions	349*105*309mm (W*H*D)
Weight	4.20kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	240Watts
Manufacturers Warranty	3 year collect and return
Light Source Warranty	3 year/10,000 hours (whichever first) collect and return

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.

Panasonic PT-LMW420 Accessories

Description	Price	Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg	£133.00	£159.60
