Panasonic PT-LB383 Projector
Panasonic PT-LB383 Key Features
- LCD Display Technology
- 3800 Lumens Colour Light Output
- XGA 1024*768 Native Resolution
- 5,000 hour lamp life (typical)
- 16,000:1 Contrast Ratio
- 2.9kg (6.4lb.)
- Curved Surface Projection
- PC Free Presentations
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Display Via USB to PC Connection
- Monitor Out
- Network Control
Panasonic PT-LB383 Downloads
Panasonic PT-LB383 Specifications
| Categories | PC Free Portable |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-LB383 Optical Features |
|
| System | 3 * 0.63" LCD |
| Resolution | XGA (1024*768) |
| Aspect Ratio | 4:3 |
| Lumens | 3,800 |
| Colour Light Output | 3800 Lumens |
| Contrast | 16,000:1 |
| Lamp | 230W |
| Lamp Life | 5,000hrs. (10,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.2x |
| Throw Ratio | 1.48 - 1.78:1 |
| Image Size | 30"-300" diagonal |
| Throw Distance | 0.90-10.90m |
| Throw distance for 100" image | 3.01 - 3.62m |
| Lens Shift | No |
| Keystone |
±30° (Vertical) |
| ±15° (Horizontal) | |
Panasonic PT-LB383 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080i, 720p |

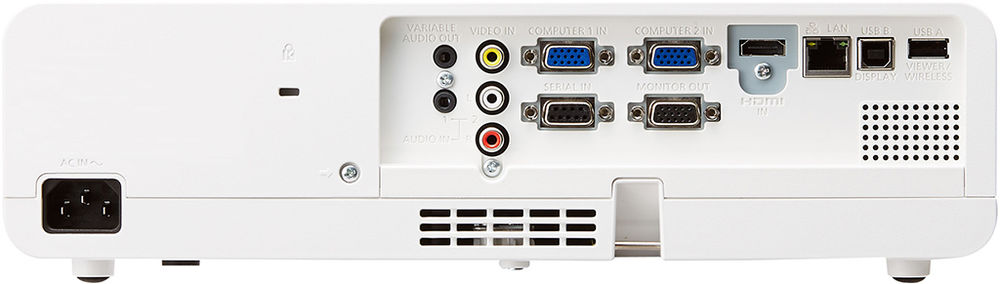

Panasonic PT-LB383 Terminals |
|
| HDMI | 1 |
| RGBHV (15-pin HD) | 2 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-LB383 General |
|
| Speakers | 10w mono |
| Remote Control | Panasonic PT-LB383 only |
| Noise | 37db (28db ECO mode) |
| Dimensions | 355*96*252mm (W*H*D) |
| Weight | 2.90kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 300Watts |
| Manufacturers Warranty | 3 year loan support (if loan unit available) |
| Light Source Warranty | 90 Days/1000 hours (whichever first) |
Panasonic PT-LB383 Package Contents |
|
| Accessories | Wireless remote control unit Power cord (Number and size of cords depends on region) CD-ROM (Instruction manual Multi Monitoring & Control Software *7) Instruction manual (Basic guide) Batteries for remote control (R03/LR03/AAA type battery x 2) RGB signal cable |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-LB383 Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 03 Hard case for projectors weighing up to 3kg | £127.00 | £152.40 |
| Panasonic ET-LAL500 Replacement lamp | £210 | £252.00 |
Panasonic PT-LB383 Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Panasonic PT-LB426 | LCD | 4100 | 2.9 | £629 | £754.80 |
