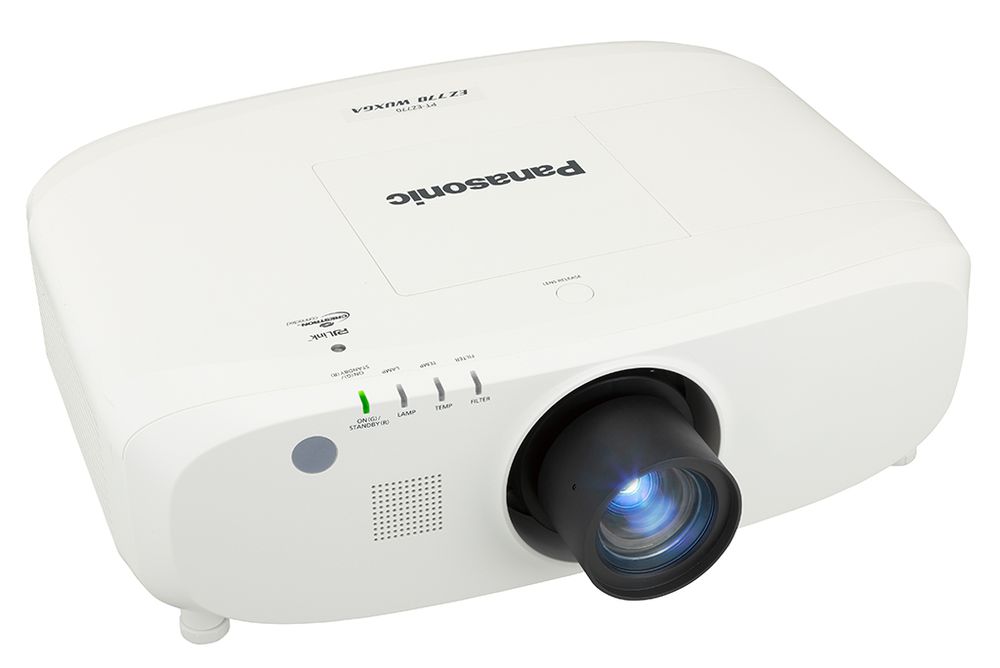

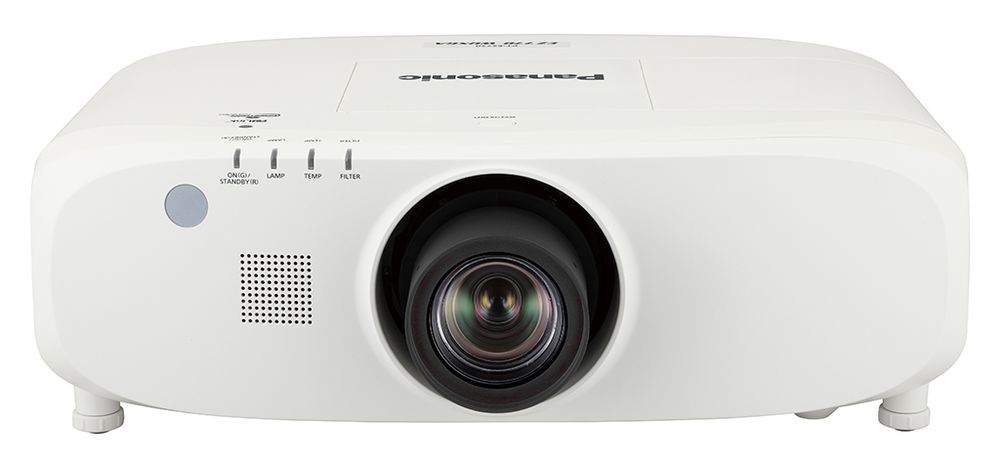

Panasonic PT-EZ770ZLE Projector
Panasonic PT-EZ770ZLE Key Features
- LCD Display Technology
- 6,500 Lumens
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 3,000 hour lamp life (typical)
- 5,000:1 Contrast Ratio
- 10.6kg (23.4lb.)
- Native Widescreen
- HDCP Compliant DVI
- Lens Shift
- Corner Projection
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Mechanical Shutter
- Logo capture and display
- PIN Code Security
- DICOM Simulation Mode
- Motorised Zoom and Focus
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- Medical Imaging
- School Halls
- Theatres
Panasonic PT-EZ770ZLE Specifications
| Categories | Interchangeable Lens Lens Shift Installation HD |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-EZ770ZLE Optical Features |
|
| System | 3 * 0.79" LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 6,500 |
| Contrast | 5,000:1 |
| Lamp | 400W UHM |
| Lamp Life | 3,000hrs. (4,500hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 40"-400" diagonal |
| Lens Shift | Vertical: 60% Horizontal: 50% |
| Keystone |
±40° (Vertical) |
| ±30° (Horizontal) | |
Panasonic PT-EZ770ZLE Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15.75-91kHz |
| Vertical Freq. | 24-120Hz |

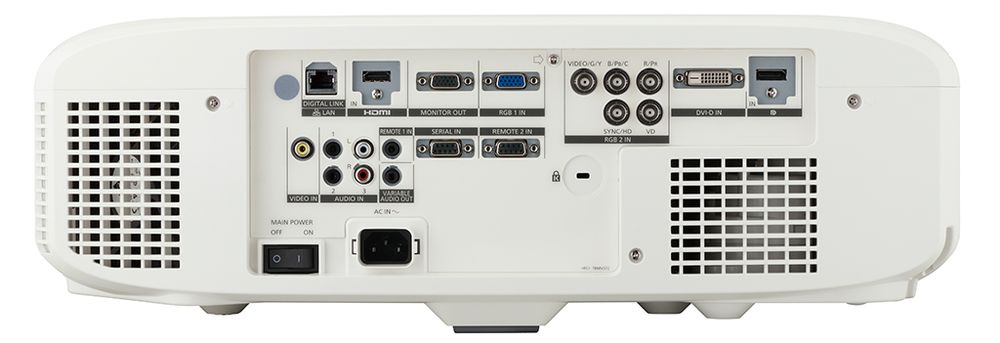

Panasonic PT-EZ770ZLE Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| S-Video | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-EZ770ZLE General |
|
| Speakers | 10W mono |

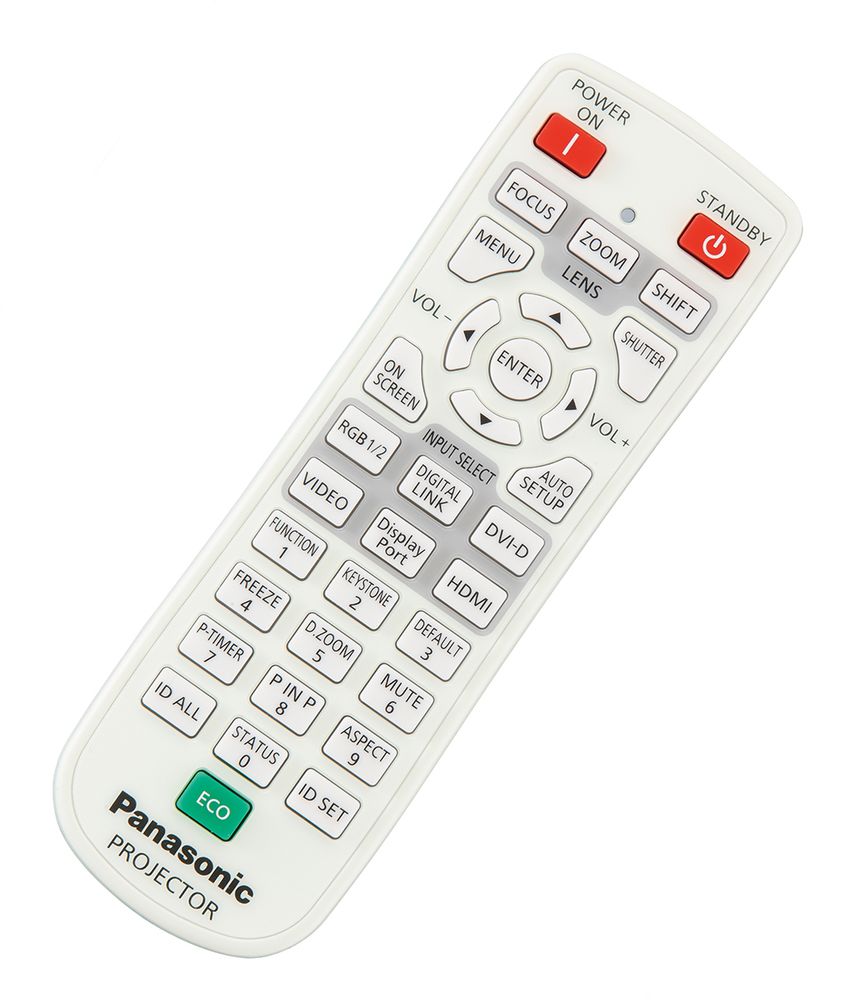

| Remote Control | Panasonic PT-EZ770ZLE only |
| Noise | 37db (29db ECO mode) |
| Dimensions | 530*177*385mm (W*H*D) |
| Weight | 10.60kg |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 575Watts |
| Manufacturers Warranty | 3 year collect/return with loan if available |
| Light Source Warranty | 6 Months/1000 hours (whichever first) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-EZ770ZLE Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELW21 Fixed Short Throw Lens | £1065 | £1278.00 |
| Panasonic ET-ELW20 Short Throw Zoom Lens | £1065 | £1278.00 |
| Panasonic ET-ELT20 Semi-long throw zoom Lens | Discontinued | |
| Panasonic ET-ELT21 Long Throw Zoom Lens | Discontinued | |
Panasonic PT-EZ770ZLE Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Panasonic PT-EZ770ZLE Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC P627UL | LCD | 6200 | 9.7 | £1943 | £2331.60 |
| NEC PV710UL BL | LCD | 7100 | 11.2 | £2648 | £3177.60 |
| NEC PV710UL WH | LCD | 7100 | 11.2 | £2648 | £3177.60 |
| Epson EB-L690SE | LCD | 6000 | 9.3 | £3349 | £4018.80 |
| Epson EB-L690SU | LCD | 6200 | 9.3 | £2678 | £3213.60 |
| Epson EB-L695SE | LCD | 6000 | 9.3 | £3349 | £4018.80 |
| Epson EB-L770U | LCD | 7000 | 8.5 | £3539 | £4246.80 |
| Epson EB-L775U | LCD | 7000 | 8.5 | £3523 | £4227.60 |
| Epson EB-L790SU | LCD | 7000 | 9.3 | £3038 | £3645.60 |
| BenQ LU785 | DLP | 6000 | 11.3 | £2757 | £3308.40 |
