Epson EB-L690U Projector

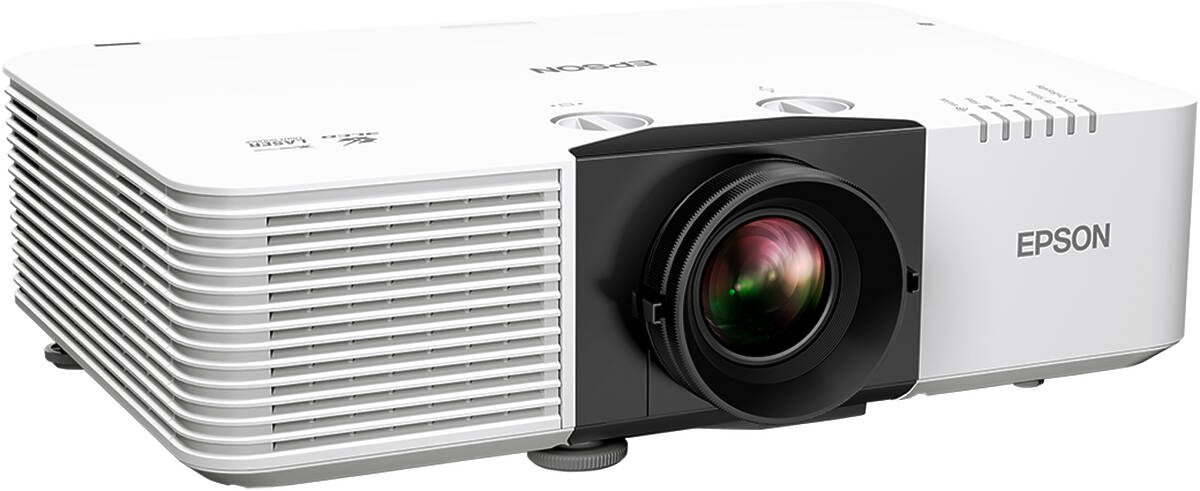

Epson EB-L690U 6500 Lumens WUXGA projector product image. Click to enlarge.

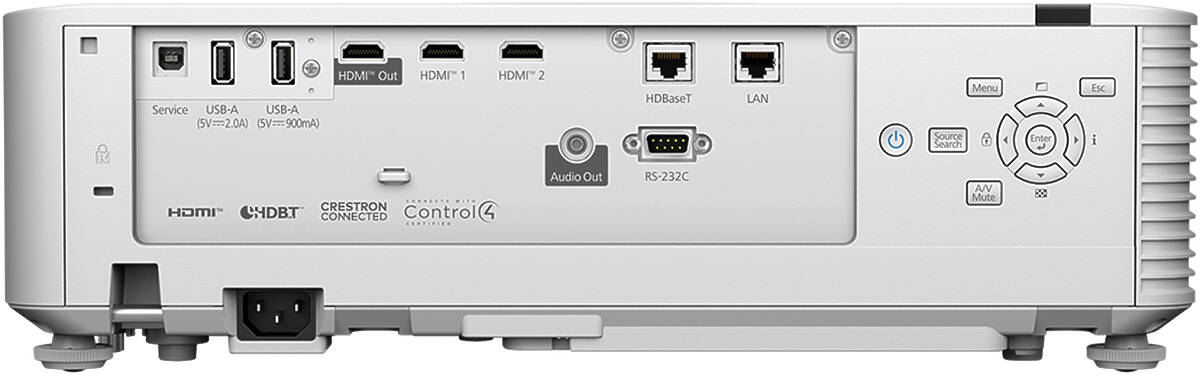

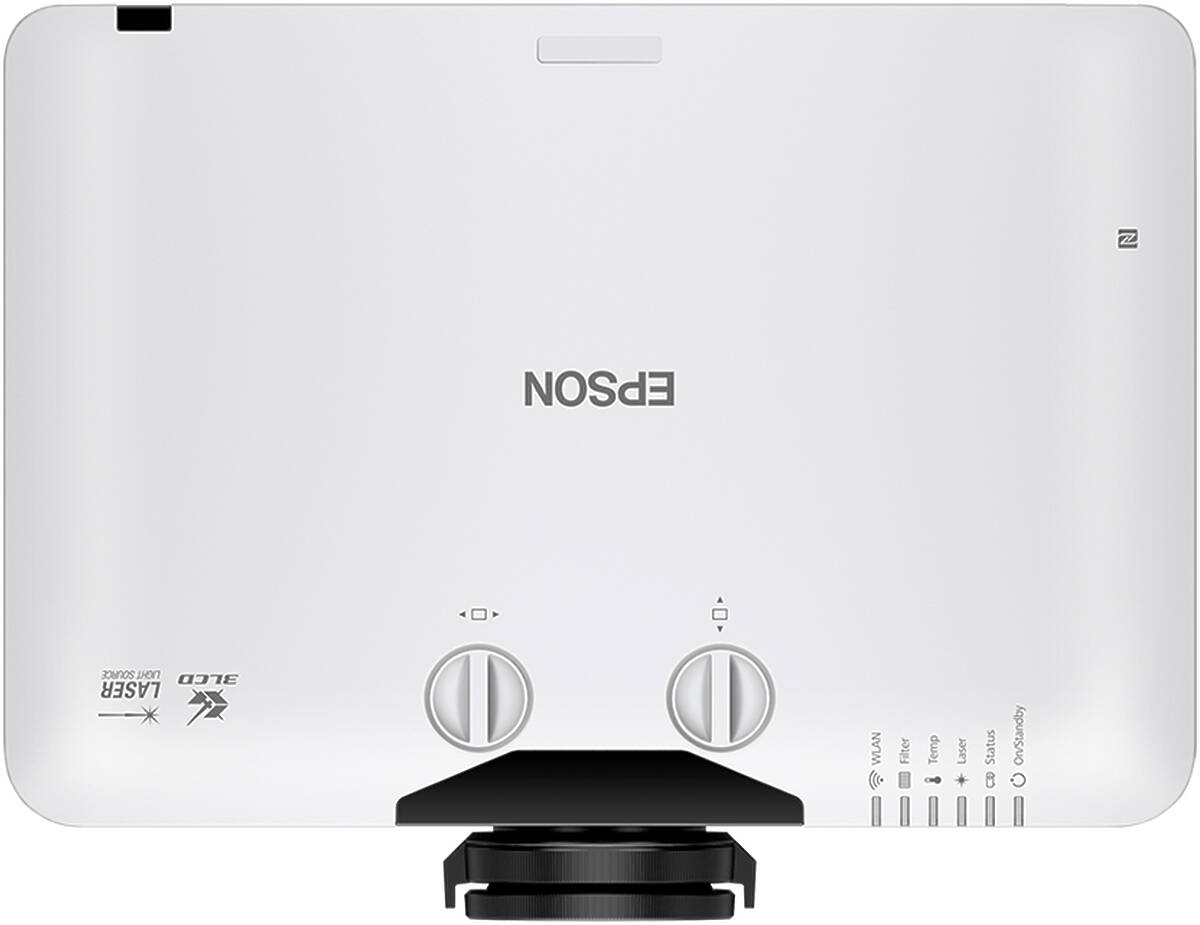

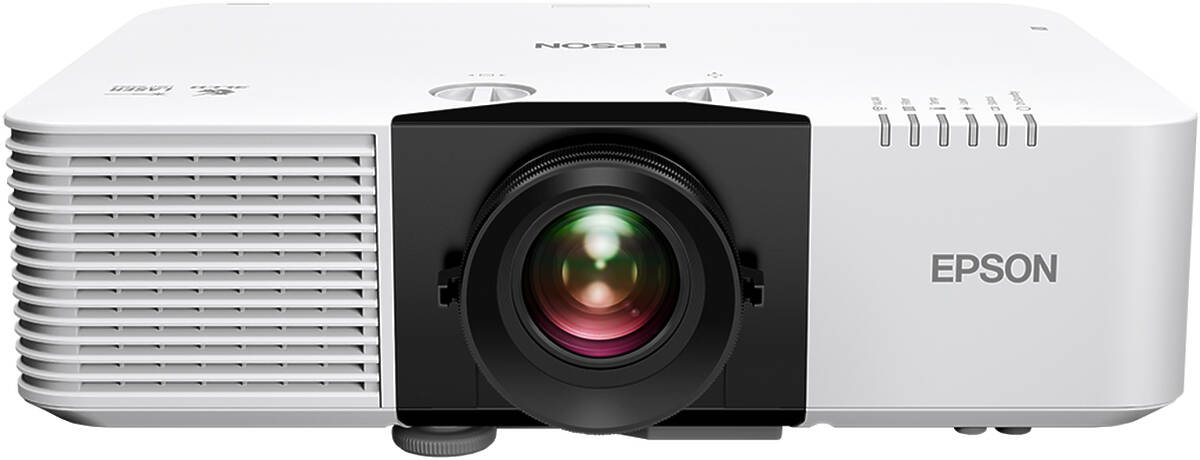

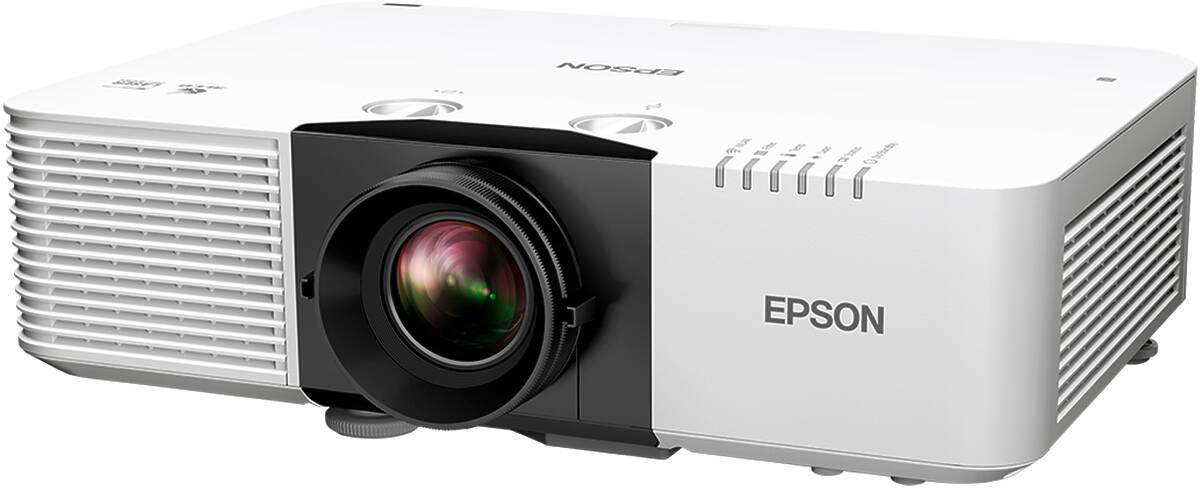

Epson EB-L690U 6500 Lumens WUXGA projector connectivity (terminals) product image Epson EB-L690U 6500 Lumens WUXGA projector Front View product image Epson EB-L690U 6500 Lumens WUXGA projector Front View product image Epson EB-L690U 6500 Lumens WUXGA projector Top View product image
£1899 (£2278.80 inc. VAT)
Availability: In stock

Epson EB-L690U Key Features

  • LCD Display Technology
  • 6500 Lumens Colour Light Output
  • WUXGA 1920×1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 5,000,000:1 Contrast Ratio
  • Built-in wireless networking
  • 8.5kg (18.7lb.)
  • Finished In White
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Lens Shift
  • Wireless Network
  • Direct Power On
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • iOS App Compatible
  • HDBaseT
  • Miracast
  • Picture-and-Picture
  • Lens-centred Design
  • Logo capture and display
  • PIN Code Security
  • Warrantied for 24/7 use
  • High Dynamic Range (HDR) Ready
  • Edge Blending
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control
  • Apple AirPlay

Epson EB-L690U Downloads



Epson EB-L690U Throw Chart (Click for details)

Epson EB-L690U throw distance chart

Epson EB-L690U Specifications

Categories HDBaseT
Installation HD
Lens Shift
PC Free
Wireless
LED/Laser HD
Manufacturer Epson (Click for rest of range)

Epson EB-L690U Optical Features
System 3×0.67″ LCD with C2 Fine
Resolution WUXGA (1920×1200)
Aspect Ratio 16:10
Lumens 6,500
ECO Mode Lumens 4,550
Colour Light Output 6500 Lumens
Eco Mode CLO 4550 Lumens
Contrast 5,000,000:1
Lamp Laser
Lamp Life 20,000hrs. (30,000hrs. ECO mode)
Lens 1.6× Manual Zoom and Focus
Interchangeable No
Zoom Range 1.6x
Throw Ratio 1.35 – 2.2:1
Suggested Max Size (60ft.lamberts) 136.82 * 85.51 in. (161 in. diagonal)
(348 * 217cm)
Image Size 50" – 500" diagonal
Throw Distance 1.44 – 23.84m
Throw distance for 100" image 2.91 – 4.74m
Lens Shift Vertical ± 50%, Horizontal ± 20%
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Epson EB-L690U Compatibility
Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

Epson EB-L690U Connectivity
HDMI 2
RGBHV (15-pin HD) 1
Monitor Out Yes
USB 3
RS-232 1
HDBaseT 1
Wireless Network No
Network Ready Yes

Epson EB-L690U General
Speakers 10 Watt
Remote Control Epson EB-L690U only
Noise 38db (27db ECO mode)
Dimensions 440×122×304mm (W×H×D)
Weight 8.50kg
Power Supply AC 100 V – 240 V, 50 Hz – 60 Hz
Power Consumption 336Watts
Manufacturers Warranty 3 years/12,000 hours (whichever first) RTB
Light Source Warranty 3 years/12,000 hours (whichever first) RTB

Epson EB-L690U Package Contents
Accessories Main unit
Power cable
Quick Start Guide
Remote control incl. batteries
User guide
Warranty document

Additional Specs
Colour Video Processing 10 Bits
Colour Reproduction Up to 1.07 billion colours
Video Colour Modes Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Lens F1.5–1.7, f=20mm–31.8mm
Focus Manual
Security Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features 21:9 aspect ratio support, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App
Projector control via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Supported Temperature Storage -10° C – +60° C
Supported Humidity Operation 20%–80%, Storage 10%–90%
Included Software Epson Projector Management
Positioning Ceiling Mounted, Desktop
