Maxell MP-WU5503 Projector
Maxell MP-WU5503 Key Features
- LCD Display Technology
- 5000 Lumens Colour Light Output
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 1,500,000:1 Contrast Ratio
- 8.2kg (18.1lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- Picture-In-Picture
- Picture-and-Picture
- Can Be Installed Vertically
- Lens-centred Design
- PIN Code Security
- Quick Power On
- DICOM Simulation Mode
- Monitor Out
- Network Control
Maxell MP-WU5503 Downloads
- Boardroom Projectors
- CAD, engineering and precision presentations
- Conference rooms (20 - 50 people)
- Home cinema and business dual use
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
Maxell MP-WU5503 Specifications
Categories | HDBaseT Installation HD LED/Laser HD |
Manufacturer | Maxell (Click for rest of range) |
Maxell MP-WU5503 Optical Features |
|
System | 3 * LCD |
Resolution | WUXGA (1920*1200) |
Aspect Ratio | 16:10 |
Lumens | 5,000 |
ECO Mode Lumens | 2,500 |
Colour Light Output | 5000 Lumens |
Eco Mode CLO | 2500 Lumens |
Contrast | 1,500,000:1 |
Lamp | Laser Diode |
Lamp Life | 20,000hrs. (50,000hrs. ECO mode) |
Interchangeable | No |
Zoom Range | 1.7x |
Throw Ratio | 1.4 - 2.4:1 |
Image Size | 30"-300" diagonal |
Throw Distance | 0.78-15.72m |
Throw distance for 100" image | 3.02 - 5.17m |
Maxell MP-WU5503 Compatibility |
|
Computer Resolutions | WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
Horizontal Freq. | 15-106kHz |
Vertical Freq. | 50-120Hz |

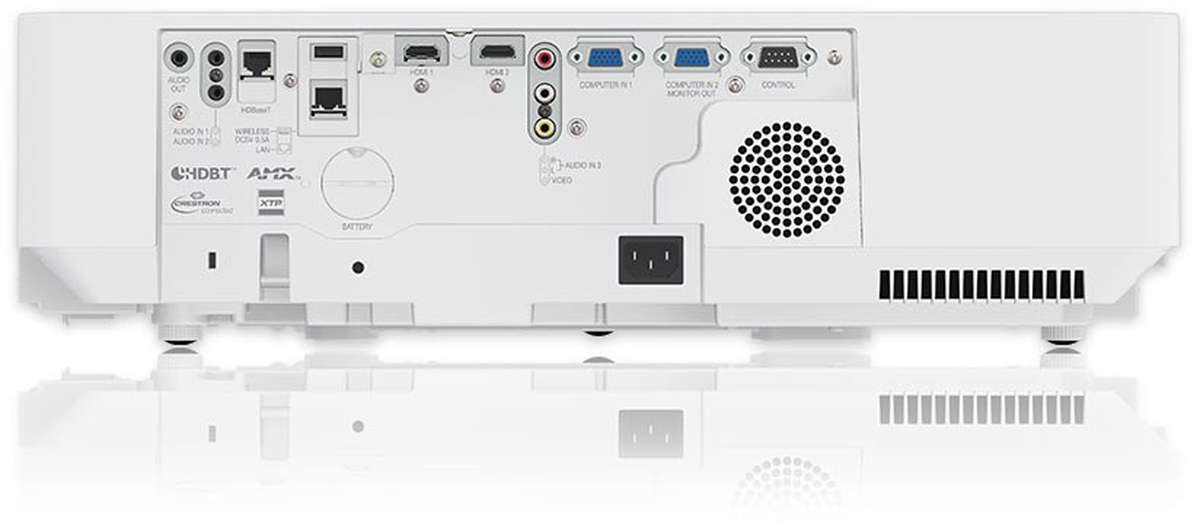

Maxell MP-WU5503 Terminals |
|
HDMI | 2 |
RGBHV (15-pin HD) | 2 |
Composite | 1 |
Monitor Out | Yes |
Audio In | 3 |
Audio Out | 1 |
USB | 2 |
RS-232 | 1 |
HDBaseT | 1 |
Network Ready | Yes |
Maxell MP-WU5503 General |
|
Speakers | 16w Mono |
Remote Control | Maxell MP-WU5503 only |
Noise | 36db (27db ECO mode) |
Dimensions | 512*424*154mm (W*H*D) |
Weight | 8.20kg |
Power Supply | 100-240V AC; 50-60Hz |
Power Consumption | 400Watts |
Manufacturers Warranty | 5 year return to base |
Light Source Warranty | 5 year/20,000 hours (whichever first) |
Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
Maxell MP-WU5503 Alternatives
Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
NEC P547UL | LCD | 5400 | 9.7 | £1777 | £2132.40 |
NEC PE506UL | LCD | 5200 | 7.95 | £1443 | £1731.60 |
Epson EB-L520U | LCD | 5200 | 7.7 | £1760 | £2112.00 |
Epson EB-L530U | LCD | 5200 | 8.2 | £2000 | £2400.00 |
Epson EB-L570U | LCD | 5200 | 8.3 | £2129 | £2554.80 |
BenQ LU935ST | DLP | 5500 | 7 | £2889 | £3466.80 |
Panasonic PT-CMZ50BEJ | LCD | 5200 | 9.5 | £3087 | £3704.40 |
Panasonic PT-CMZ50EJ | LCD | 5200 | 9.5 | £3087 | £3704.40 |
Panasonic PT-EZ57EJ | LCD | 5000 | 7.9 | £1527 | £1832.40 |
Panasonic PT-VMZ51EJ | LCD | 5200 | 7.2 | £2154 | £2584.80 |
