Epson EB-L520U Projector

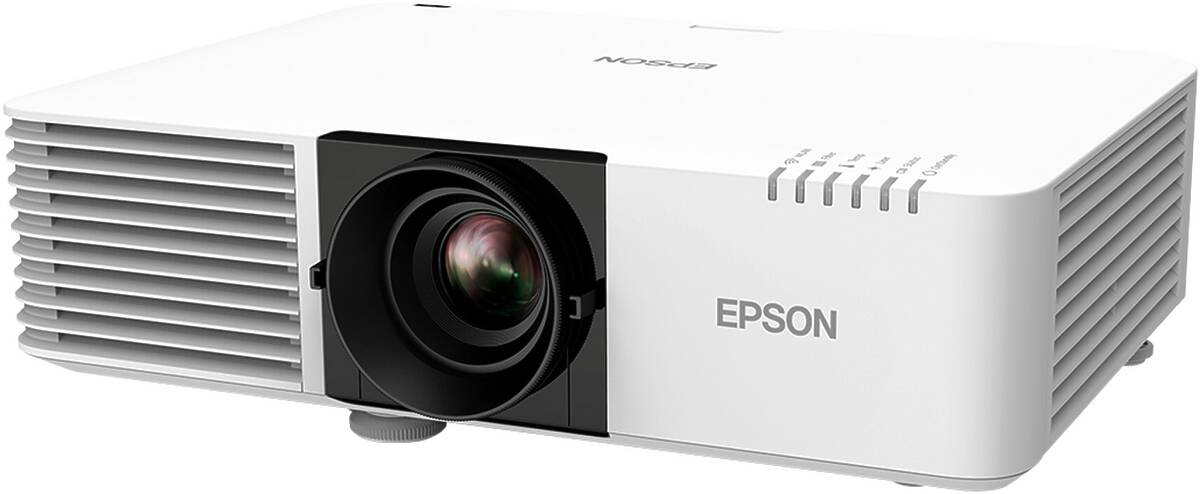

Epson EB-L520U 5200 Lumens WUXGA projector product image. Click to enlarge.

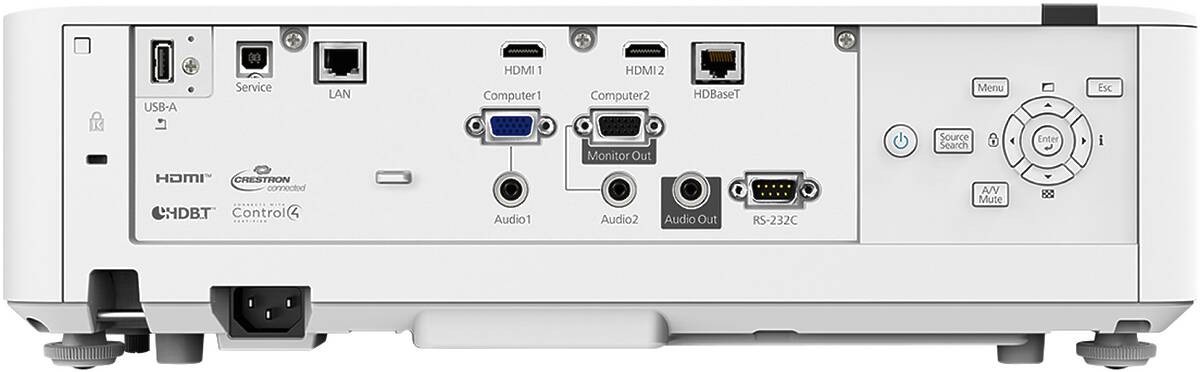

Epson EB-L520U 5200 Lumens WUXGA projector connectivity (terminals) product image Epson EB-L520U 5200 Lumens WUXGA projector product image
£1683 (£2019.60 inc. VAT)
Availability: In stock

Epson EB-L520U Key Features

  • FREE Delivery on this item
  • LCD Display Technology
  • 5200 Lumens Colour Light Output
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 2,500,000:1 Contrast Ratio
  • Built-in wireless networking
  • 7.7kg (17.0lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Wireless Network
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • HDBaseT
  • Miracast
  • Lens-centred Design
  • PIN Code Security
  • DICOM Simulation Mode
  • sRGB Colour Mode
  • Network Control

Epson EB-L520U Downloads



Epson EB-L520U Throw Chart (Click for details)

Epson EB-L520U throw distance chart

Epson EB-L520U Specifications

Categories HDBaseT
Installation HD
PC Free
Wireless
LED/Laser HD
Manufacturer Epson (Click for rest of range)

Epson EB-L520U Optical Features
System 3 * 0.67" LCD with C2 Fine
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 5,200
ECO Mode Lumens 3,640
Colour Light Output 5200 Lumens
Eco Mode CLO 3640 Lumens
Contrast 2,500,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (30,000hrs. ECO mode)
Lens 1.6× Manual Zoom and Focus
Interchangeable No
Zoom Range 1.6x
Throw Ratio 1.35 - 2.2:1
Image Size 50"-500" diagonal
Throw Distance 1.44-23.85m
Throw distance for 100" image 2.91 - 4.74m
Lens Shift No
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Epson EB-L520U Compatibility
Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

Epson EB-L520U Terminals
HDMI 2
RGBHV (15-pin HD) 2
Audio In 2
Audio Out 1
USB 3
RS-232 1
HDBaseT 1
Network Ready Yes
Wireless Network No

Epson EB-L520U General
Speakers 10w Mono
Remote Control Epson EB-L520U only
Noise 31db (23db ECO mode)
Dimensions 440*122*304mm (W*H*D)
Weight 7.70kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 293Watts
Manufacturers Warranty 3 year Return To Base
Light Source Warranty 3 year Return To Base

Epson EB-L520U Package Contents
Accessories Cable cover
Main unit
Power cable
Remote control incl. batteries
User guide
Warranty Documents

Additional
Security Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
2D Colour Modes Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features Arc Correction, Built-in speaker, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Ultra-wide display (16:6), iProjection App
Video Color Modes Cinema, Dynamic, Presentation, sRGB, DICOM SIM
Projector control Via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.

Epson EB-L520U Accessories

Description Price Inc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg £153.00 £183.60
Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

Epson EB-L520U Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
NEC PE506UL LCD 5200 7.95 £1432 £1718.40
Epson EB-L530U LCD 5200 8.2 £1913 £2295.60
Epson EB-L570U LCD 5200 8.3 £2129 £2554.80
BenQ LU930 DLP 5000 6.3 £1703 £2043.60
BenQ LU935ST DLP 5500 7 £2889 £3466.80
Panasonic PT-EZ57EJ LCD 5000 7.9 £1527 £1832.40
Panasonic PT-VMZ51EJ LCD 5200 7.2 £2154 £2584.80
Panasonic PT-VMZ51SEJ LCD 5200 7.2 £2021 £2425.20
Vivitek DU3661Z DLP 5000 7 £1520 £1824.00
Vivitek DU775Z-UST DLP 5000 8.9 £1823 £2187.60
