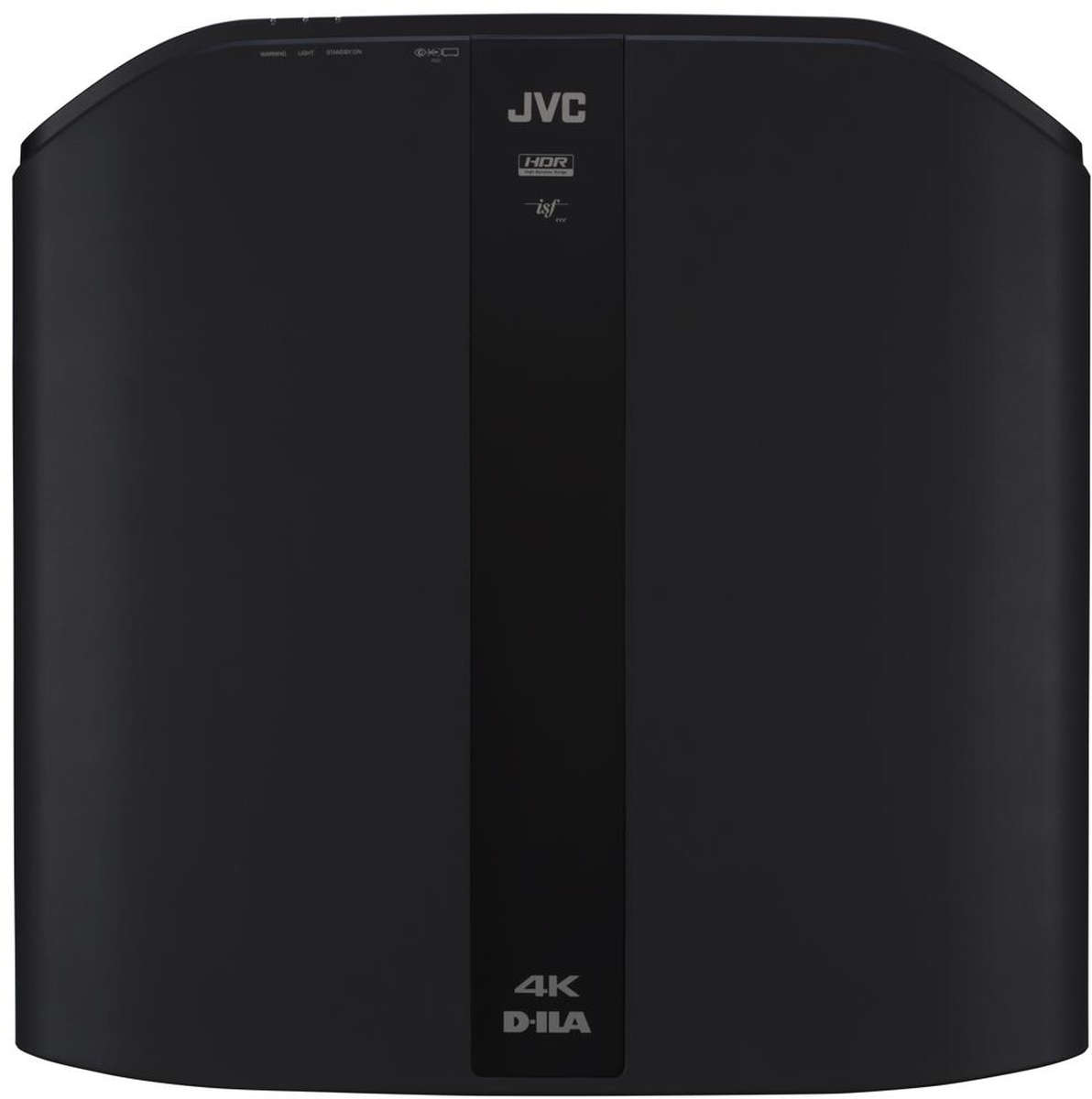

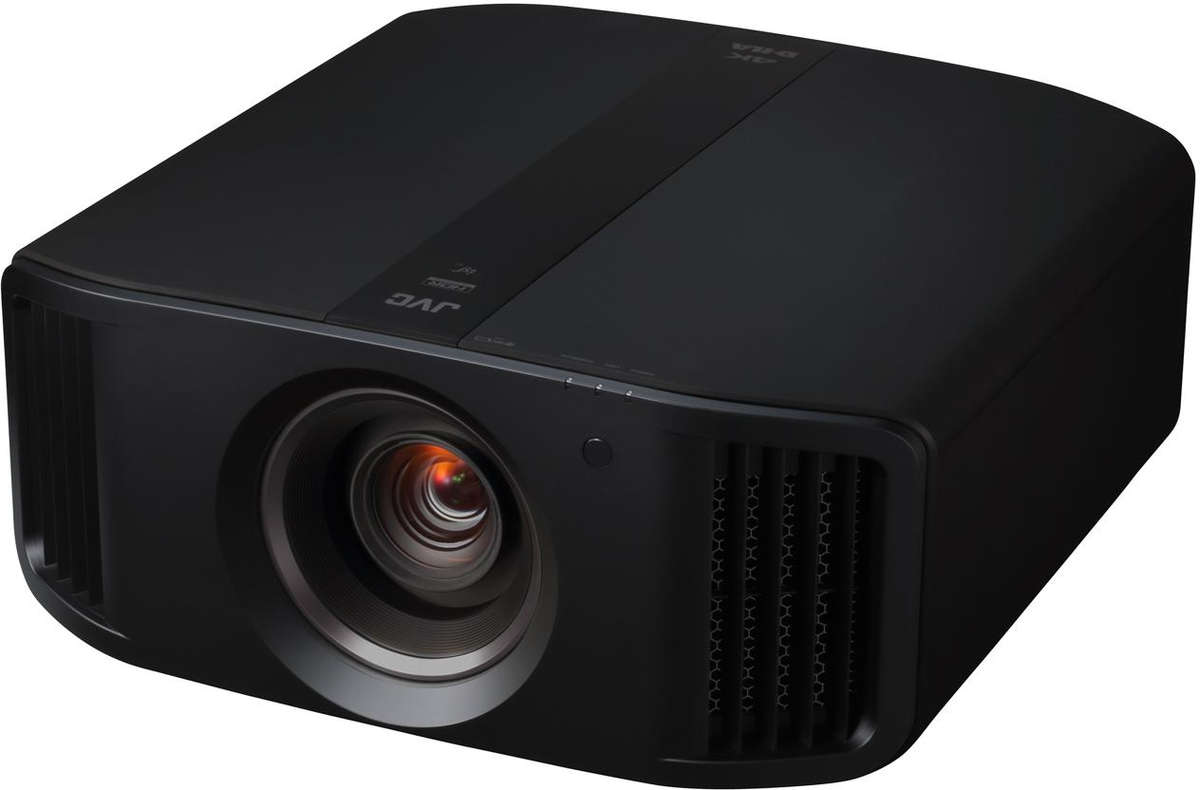

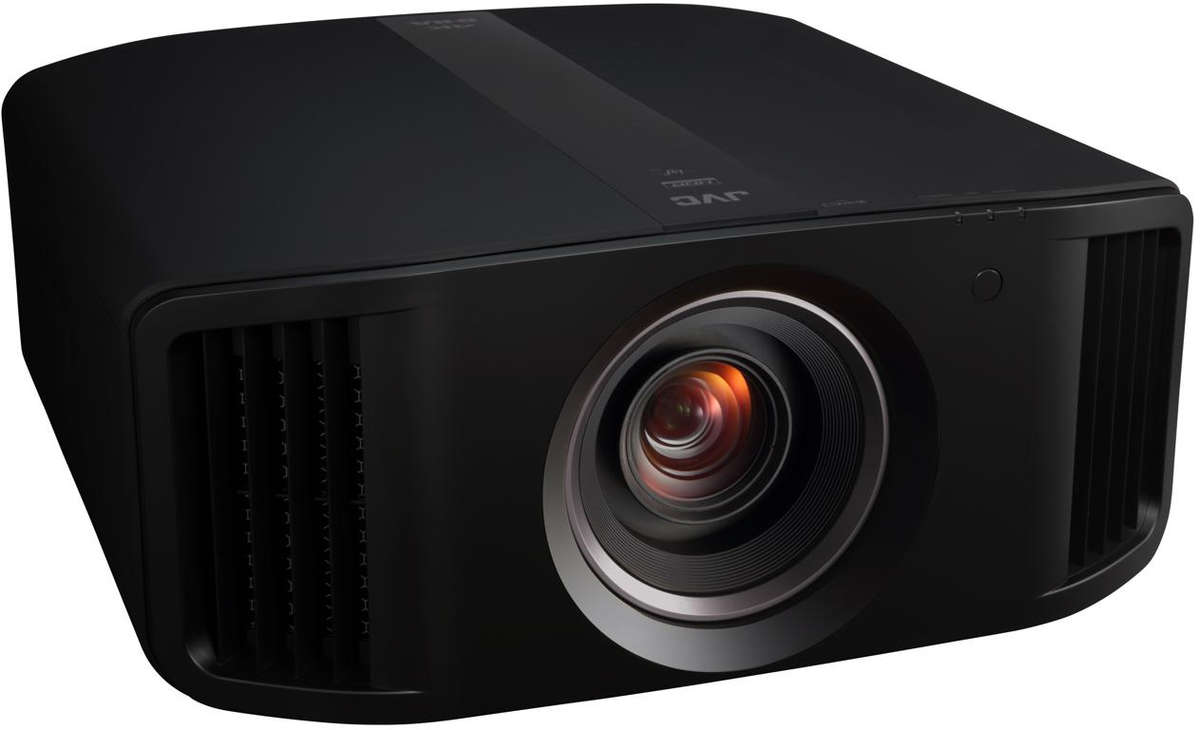

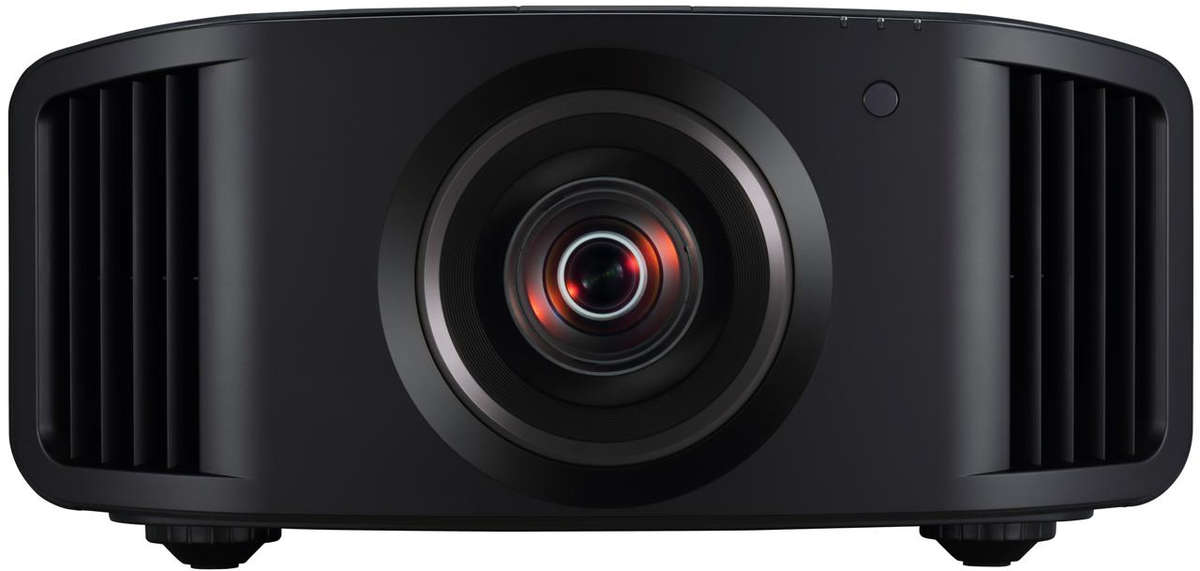

JVC DLA-NX9B Projector

No Longer Available

Click for Current JVC range

JVC DLA-NX9B Key Features

  • FREE Delivery on this item
  • D-ILA Display Technology
  • 1900 Lumens Colour Light Output
  • 4K 4096*2160 Native Resolution
  • 2,000 hour lamp life (typical)
  • 800,000:1 Contrast Ratio
  • 19.8kg (43.7lb.)
  • Clear Motion Drive supporting 4K60P (4:4:4)
  • 8K eShift Mode
  • Wide zoom range for flexible placement
  • Home Cinema
  • Native Widescreen
  • Lens Shift
  • 12v Trigger
  • Lens-centred Design
  • High Dynamic Range (HDR) Ready
  • 3D Projection Ready
  • Motorised Zoom and Focus
  • Network Control

JVC DLA-NX9B Downloads


JVC DLA-NX9B Specifications

Categories Home Cinema / Video
Lens Shift
Installation HD
Manufacturer JVC (Click for rest of range)

JVC DLA-NX9B Optical Features

System 3 * 0.69" 4K D-ILA
Resolution 4K (4096*2160)
Aspect Ratio Digital Cinema
Lumens 1,900
Colour Light Output 1900 Lumens
Contrast 800,000:1
Lamp NSH 265 W
Lamp Life 2,000hrs. (4,500hrs. ECO mode)
Interchangeable No
Zoom Range 2x
Throw Ratio 1.33 - 2.71:1
Image Size 60"-280" diagonal
Throw Distance 1.75-17.14m
Throw distance for 100" image 2.99 - 6.09m
Lens Shift Vertical: ±80%
Horizontal: ±34%

JVC DLA-NX9B Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WSXGA+
Video Resolutions PAL, SECAM, NTSC, 4K, UHD, 1080p, 1080i, 720p

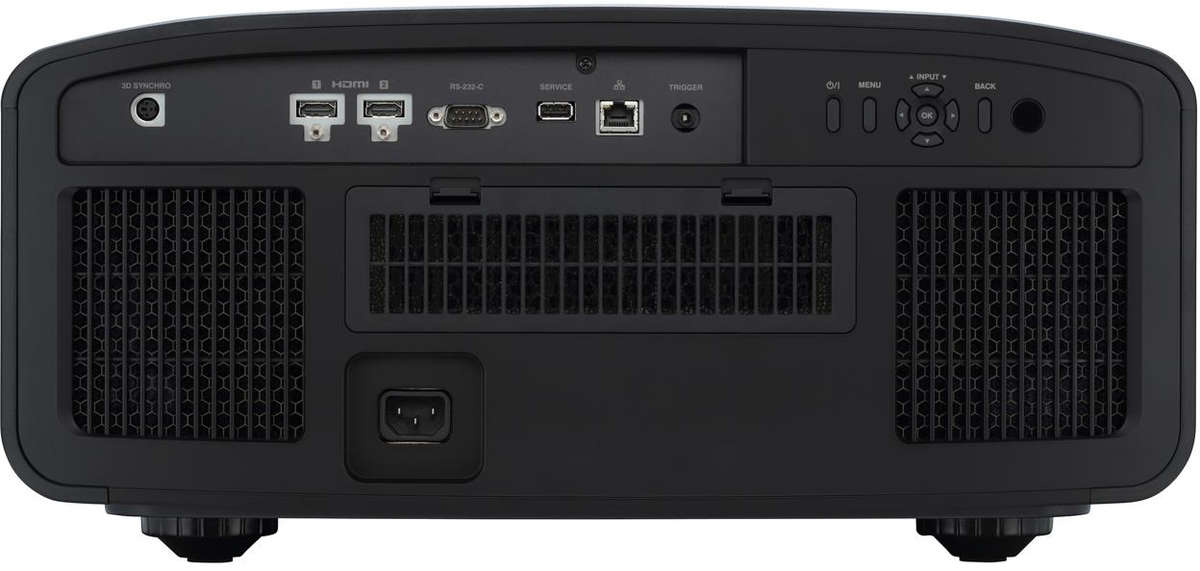

JVC DLA-NX9B Terminals

HDMI 2
RGBHV (15-pin HD) 1
USB 1
RS-232 1
12v Trigger Yes
Network Ready Yes

JVC DLA-NX9B General

Speakers No
Remote Control JVC DLA-NX9B only
Noise Not Quoted
Dimensions 500*234*495mm (W*H*D)
Weight 19.80kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 400Watts
Manufacturers Warranty 3 year return to base
Light Source Warranty 1 year/1000 hours (whichever first)

JVC DLA-NX9B Package Contents

Accessories Lens Cover

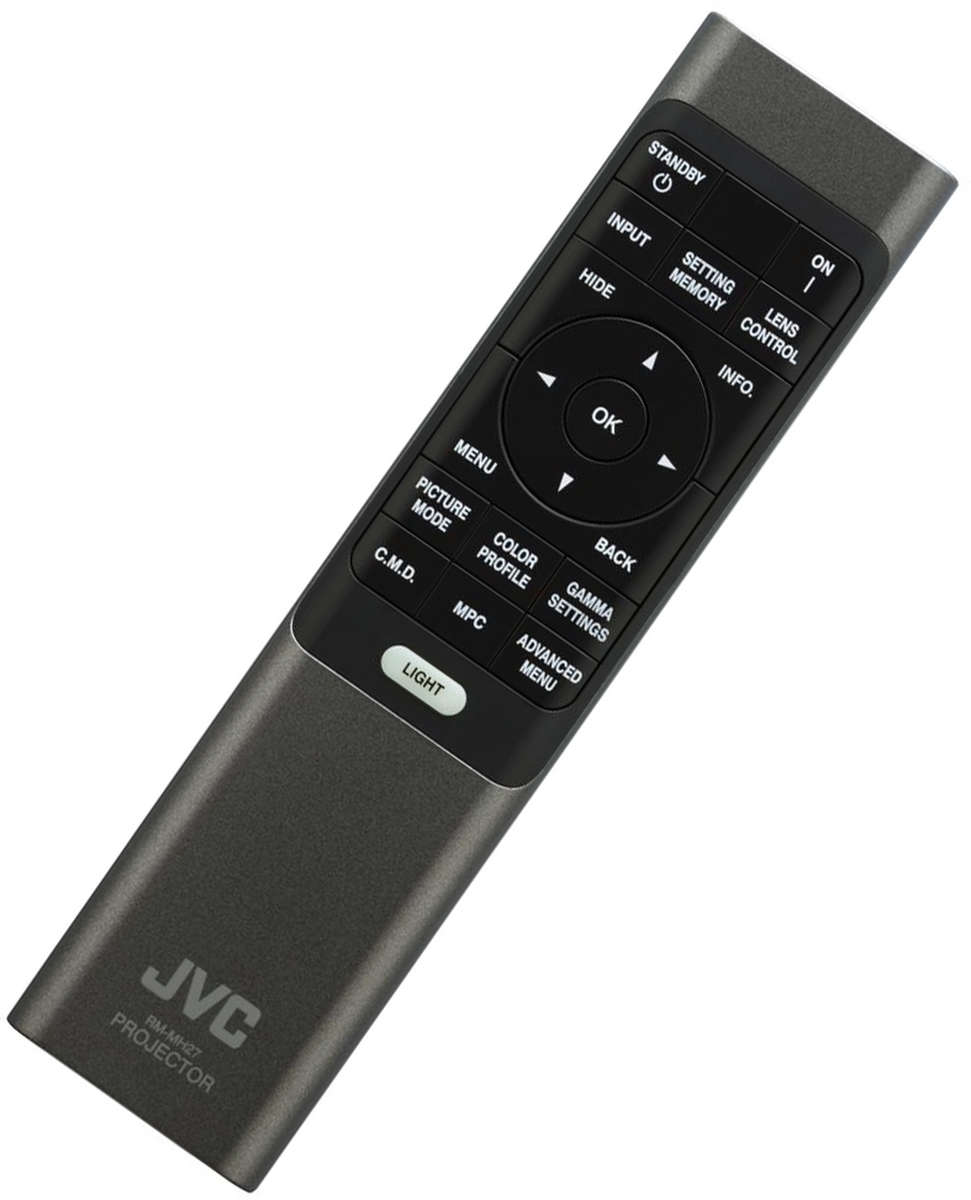

Remote Control + Batteries
Power Cord
Quick User Guide
Warranty Card

Ivojo Multimedia are approved JVC dealers and supply only UK products with full UK warranties.

JVC DLA-NX9B Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
JVC DLA-NP5W D-ILA 1900 19.2 £5409 £6490.80
JVC DLA-RS1100E D-ILA 1900 19.2 £5455 £6546.00
