JVC DLA-NP5W Projector

£6241 (£7489.20 inc. VAT)
Availability: Please Call

JVC DLA-NP5W Key Features

  • FREE Delivery on this item
  • D-ILA Display Technology
  • 1900 ANSI Lumens
  • 4K 4096*2160 Native Resolution
  • 3500 hour lamp life (typical)
  • 40000:1 Contrast Ratio
  • 3 year return to base warranty
  • 19.2kg (42.3lb.)
  • 17-element, 15-group all-glass 65mm diameter high-quality lens
  • Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimizer
  • As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
  • Theater Optimizer** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
  • The projector automatically reproduces HDR10+ content based on the metadata of the producers intentions for each scene.
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
  • 10 Installation Modes centrally manages various settings related to installation to enjoy video best suited for each environment
  • Settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
  • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • Colour Management System with 6-axis Matrix
  • Auto-Calibration Function using an optical sensor*** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
  • ISF C3 (Certified Calibration Controls) mode**** to reproduce excellent picture quality optimized for specific environments.
  • Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
  • Wide zoom range for flexible placement
  • Home Cinema
  • Native Widescreen
  • Lens Shift
  • 12v Trigger
  • Lens-centred Design
  • High Dynamic Range (HDR) Ready
  • Digital (HDMI/DVI/DisplayPort) Input
  • 3D Projection Ready
  • Motorised Zoom and Focus
  • Network Control


JVC DLA-NP5W Throw Chart (Click for details)

JVC DLA-NP5W Specifications

Categories 3D Ready
Home Cinema / Video
Lens Shift
Installation HD
Manufacturer JVC (Click for rest of range)

JVC DLA-NP5W Optical Features

System 3 * 0.69" 4K D-ILA
Resolution 4K (4096*2160)
Aspect Ratio Digital Cinema
ANSI Lumens 1900
Contrast 40000:1

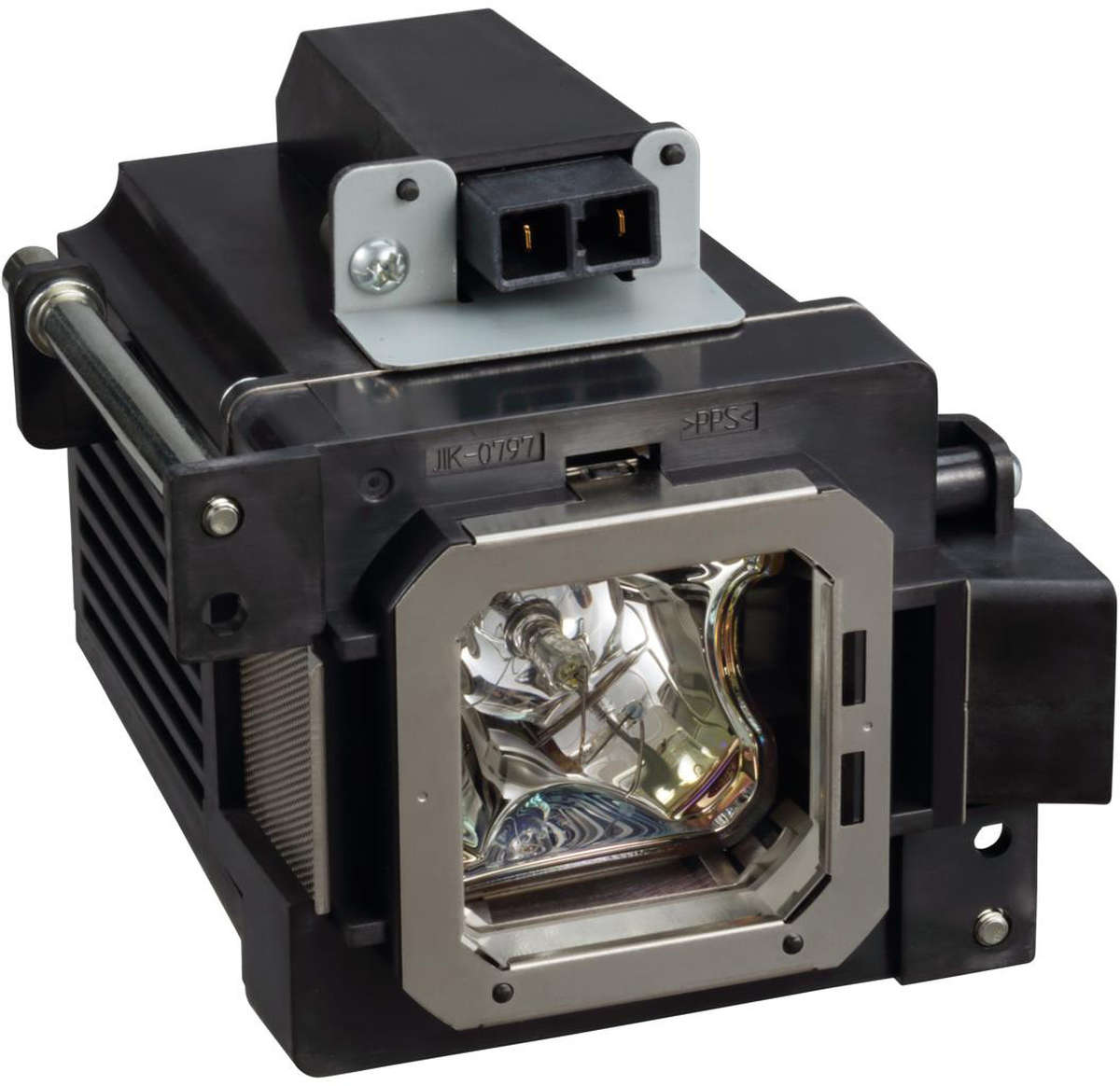

Lamp 265W NSH
Lamp Life 3500hrs. (4500hrs. ECO mode)
Lens 2x Motorised Zoom and Focus
Interchangeable No
Zoom Range 2x
Throw Ratio 1.43 - 2.92:1
Image Size 60"-200" diagonal
Throw Distance 1.88-12.95m
Throw distance for 100" image 3.21 - 6.56m
Lens Shift Vertical: +/-80%
Horizontal: +/-34%

JVC DLA-NP5W Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WSXGA+
Video Resolutions 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24

JVC DLA-NP5W Terminals

HDMI 2
RGBHV (15-pin HD) 1
USB 1
RS-232 1
12v Trigger Yes
Network Ready Yes

JVC DLA-NP5W General

Speakers No
Remote Control JVC DLA-NP5W only
Noise 28db (24db ECO mode)
Dimensions 500*234*495mm (W*H*D)
Weight 19.20kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 420Watts
Manufacturers Warranty 3 year return to base
Light Source Warranty 1 year/1000 hours (whichever first)

JVC DLA-NP5W Package Contents

Accessories Remote Control (RM-MH27)
User Manual
Power Cord
2 × AAA-size batteries

Additional

3D format Frame packing: 720p 60/50, 1080p 24
Side-by-side: 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & bottom: 720p 60/50, 1080p/24

Ivojo Multimedia are approved JVC dealers and supply only UK products with full UK warranties.



JVC DLA-NP5W Accessories

Description Price Inc. VAT
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg £220 £264.00
