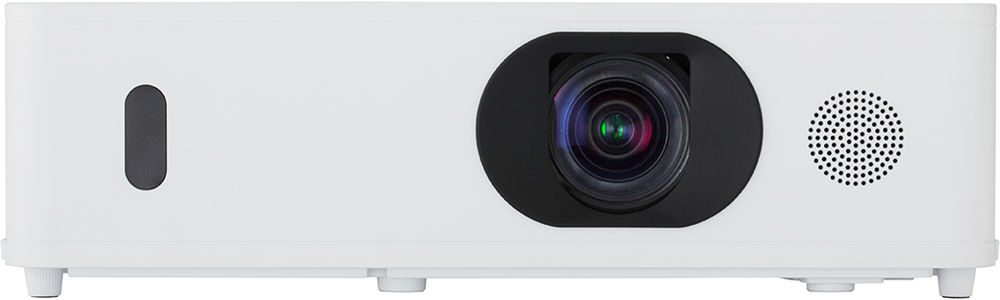

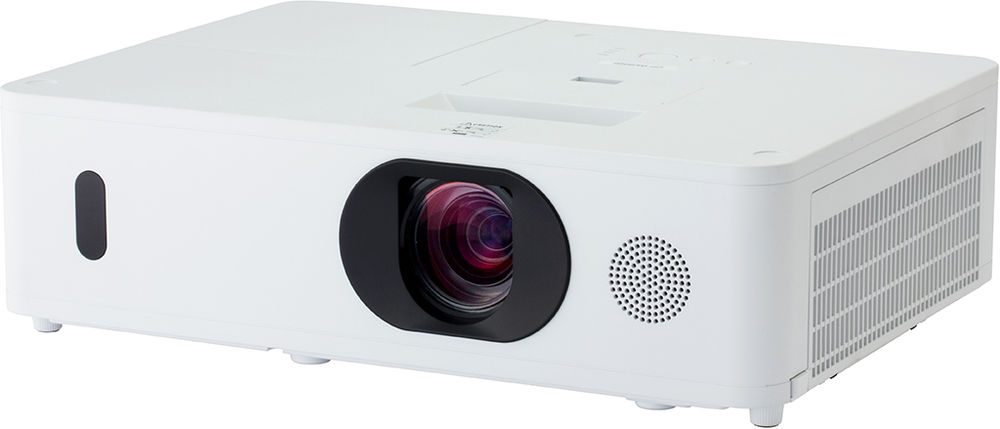

Hitachi CP-WU5506 Projector

No Longer Available

Click for Current Projector range

Hitachi CP-WU5506 Key Features

• LCD Display Technology
• 5200 Lumens Colour Light Output
• WUXGA 1920*1200 Native Resolution
• 4,000 hour lamp life (typical)
• 10,000:1 Contrast Ratio
• Built-in wireless networking
• 7.2kg (15.9lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• Wireless Network
• HDBaseT
• Miracast
• DICOM Simulation Mode
• Monitor Out
• Network Control

• Boardroom Projectors
• CAD, engineering and precision presentations
• Conference rooms (20 - 50 people)
• Medical Imaging
• Museums
• Wireless Presentation Projectors

Hitachi CP-WU5506 Specifications

Categories	HDBaseT Lens Shift Wireless Installation HD
Manufacturer	Hitachi (Click for rest of range)
Hitachi CP-WU5506 Optical Features
System	3 * 0.67" LCD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	5,200
ECO Mode Lumens	3,640
Colour Light Output	5200 Lumens
Eco Mode CLO	3640 Lumens
Contrast	10,000:1
Lamp	300W
Lamp Life	4,000hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.4 - 2.3:1
Image Size	30"-300" diagonal
Throw Distance	0.80-15.20m
Throw distance for 100" image	3.02 - 4.95m
Lens Shift	Vertical: 0-50% Horizontal: 4.4%
Hitachi CP-WU5506 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

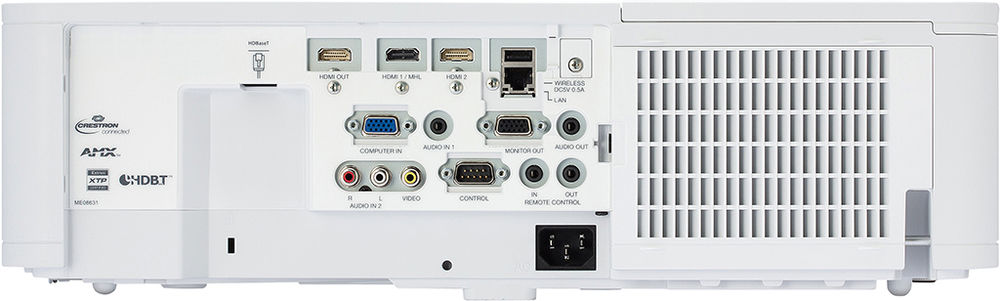

Hitachi CP-WU5506 Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
USB	1
RS-232	1
HDBaseT	1
Network Ready	Yes
Wireless Network	No
Hitachi CP-WU5506 General
Speakers	No
Remote Control	Hitachi CP-WU5506 only
Noise	38db (29db ECO mode)
Dimensions	460*138*334mm (W*H*D)
Weight	7.20kg
Power Supply	AC 100V-120V (50/60Hz) 4.4A, AC 220V-240V (50/60Hz
Power Consumption	440Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	6 months/1000 hours (whichever first)

Ivojo Multimedia are approved Hitachi dealers and supply only UK products with full UK warranties.
