Canon LX-MU500 Projector

No Longer Available

Click for Current Projector range

Canon LX-MU500 Key Features

• DLP Display Technology
• 5000 Lumens Colour Light Output
• WUXGA 1920*1200 Native Resolution
• 2,000 hour lamp life (typical)
• 2,500:1 Contrast Ratio
• 5.4kg (11.9lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• Horizontal & Vertical Keystone Correction
• HDBaseT
• MHL
• Lens-centred Design
• sRGB Colour Mode
• Monitor Out
• Network Control

Canon LX-MU500 Downloads

Brochure

Instruction Manual

• Boardroom Projectors
• CAD, engineering and precision presentations
• Church Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• Museums

Canon LX-MU500 Specifications

Categories	HDBaseT Lens Shift Short Throw Zoom
Manufacturer	Canon (Click for rest of range)
Canon LX-MU500 Optical Features
System	1 * 0.67" DMD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	5,000
ECO Mode Lumens	4,000
Colour Light Output	5000 Lumens
Eco Mode CLO	4000 Lumens
Contrast	2,500:1
Lamp	370W/296W
Lamp Life	2,000hrs. (2,500hrs. ECO mode)
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.07 - 1.71:1
Image Size	60"-240" diagonal
Throw Distance	1.40-8.84m
Throw distance for 100" image	2.30 - 3.68m
Lens Shift	Vertical: 50% - 55%
KeystoneCorrection	±30° (Vertical)
	±30° (Horizontal)
Canon LX-MU500 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

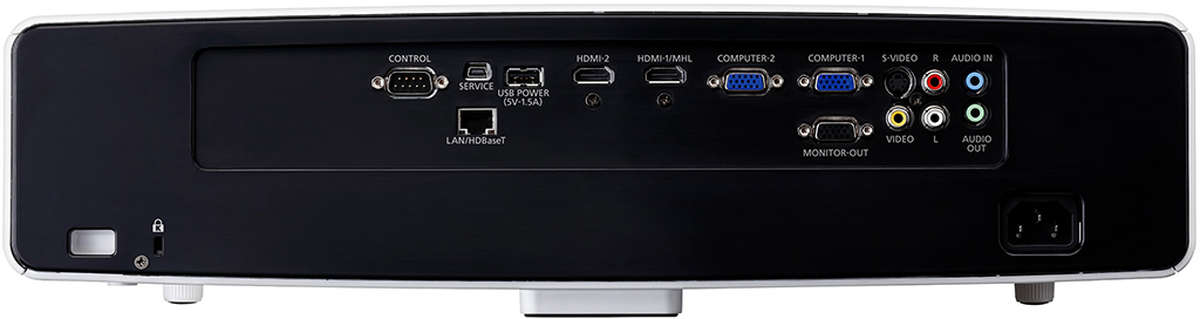

Canon LX-MU500 Terminals
HDMI	2
RGBHV (15-pin HD)	2
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	1
RS-232	1
HDBaseT	1
Network Ready	Yes
Canon LX-MU500 General
Speakers	2 * 10w
Remote Control	Canon LX-MU500 only
Noise	38db (35db ECO mode)
Dimensions	465*112*261mm (W*H*D)
Weight	5.40kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	500Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	90 Days/1000 hours (whichever first)
Canon LX-MU500 Package Contents
Accessories	LV-RC08 remote control VGA cable Power cord

Ivojo Multimedia are approved Canon dealers and supply only UK products with full UK warranties.

Canon LX-MU500 Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
