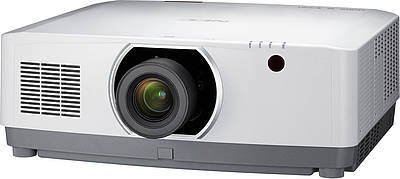

NEC PA703UL/NP41ZL Projector &
NEC NP40ZL Projector Lens

NEC PA703UL/NP41ZL

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 18.2kg (40.1lb.)
  • 3 year loan support warranty
  • NEC PA703UL/NP41ZL
NEC PA703UL/NP41ZL & NEC NP40ZL
NEC NP40ZL Lens Only
£1473 (£1767.60 inc. VAT)
Availability: 3-5 days

Select a Screen

Min. Throw Max Throw Foot Lamberts
1.58m 2.22m 260.13
Throw Chard for NEC PA703UL/NP41ZL fitted with NEC NP40ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.40 0.56 0.14 sq.m. 4624.51
1.00 0.56 1.15 0.79 1.11 0.56 sq.m. 1156.13
1.50 0.84 1.72 1.19 1.67 1.27 sq.m. 513.83
2.00 1.12 2.29 1.58 2.22 2.25 sq.m. 289.03
2.50 1.41 2.87 1.98 2.78 3.52 sq.m. 184.98
3.00 1.69 3.44 2.37 3.33 5.06 sq.m. 128.46
4.00 2.25 4.59 3.16 4.44 9.00 sq.m. 72.26
5.00 2.81 5.74 3.95 5.55 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.90 1.27
2 1.80 2.53
3 2.70 3.80
4 3.60 5.06
5 4.50 6.33
6 5.41 7.59
7 6.31 8.86
8 7.21 10.13

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
