NEC PA703UL/NP41ZL Projector
NEC PA703UL/NP41ZL Key Features
- LCD Display Technology
- 7000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 2,500,000:1 Contrast Ratio
- 18.2kg (40.1lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Seamless Switching
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Edge Blending
- DICOM Simulation Mode
- Stacking Function
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Church Projectors
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Film Societies and Community Cinema
- Lecture Theatres
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- School Halls
NEC PA703UL/NP41ZL Specifications
| Categories | Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift Short Throw Zoom Installation HD LED/Laser HD |
| Manufacturer | NEC (Click for rest of range) |
NEC PA703UL/NP41ZL Optical Features |
|
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 7,000 |
| ECO Mode Lumens | 5,600 |
| Colour Light Output | 7000 Lumens |
| Eco Mode CLO | 5600 Lumens |
| Contrast | 2,500,000:1 |
| Lamp | Laser Light Source |
| Lamp Life | 20,000hrs. (20,000hrs. ECO mode) |
| Interchangeable | Yes |
| Throw Ratio | 1.3 - 3.02:1 |
| Image Size | 50"-500" diagonal |
| Throw Distance | 1.40-32.60m |
| Throw distance for 100" image | 2.80 - 6.50m |
| Lens Shift | Vertical: 20/-0.1 Horizontal: +10/-50 |
| Keystone |
±40° (Vertical) |
| ±40° (Horizontal) | |
NEC PA703UL/NP41ZL Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
| Video Resolutions | PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 15-153Hz |

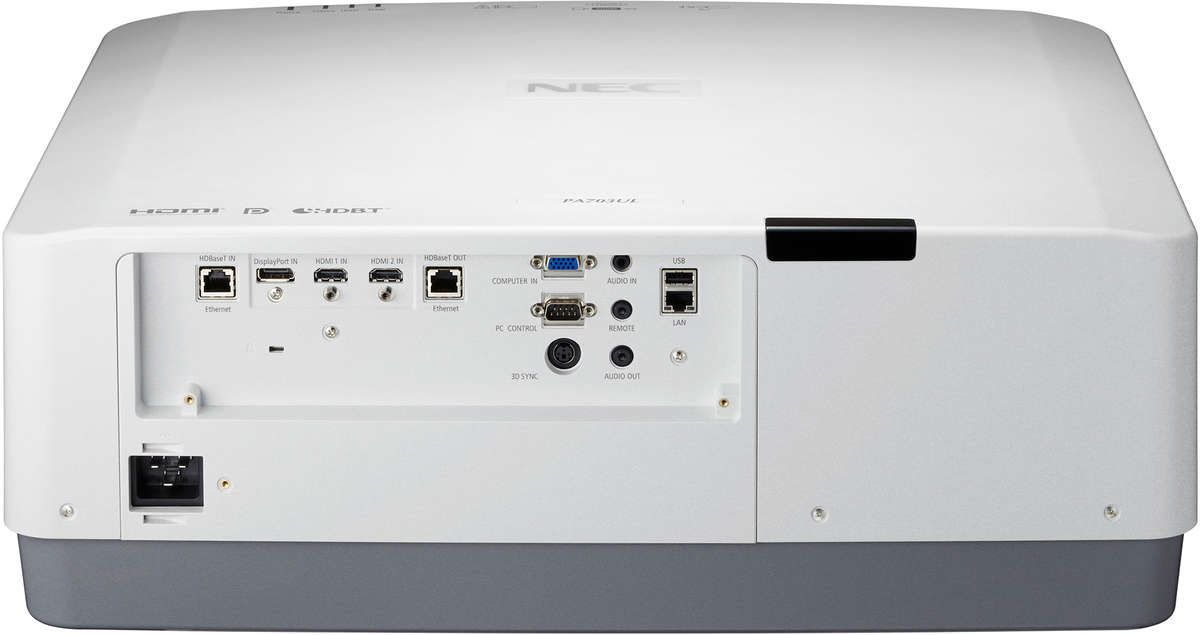

NEC PA703UL/NP41ZL Terminals |
|
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC PA703UL/NP41ZL General |
|
| Speakers | No |
| Remote Control | NEC PA703UL/NP41ZL + Mouse Emulation |
| Noise | 39db (33db ECO mode) |
| Dimensions | 580*208*494mm (W*H*D) |
| Weight | 18.20kg |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 774Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC PA703UL/NP41ZL Package Contents |
|
| Accessories | Cable Cover (NP11CV); IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM; NEC NP41ZL Lens |
Additional Features |
|
| Remote Control | 3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Keystone Correction; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture |
| Special Characteristics | 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control |
Green Features |
|
| Energy Efficiency | ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function |
| Ecological Materials | 100% recyclable packaging; Downloadable manuals |
| Ecological Standards | ErP compliant |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.

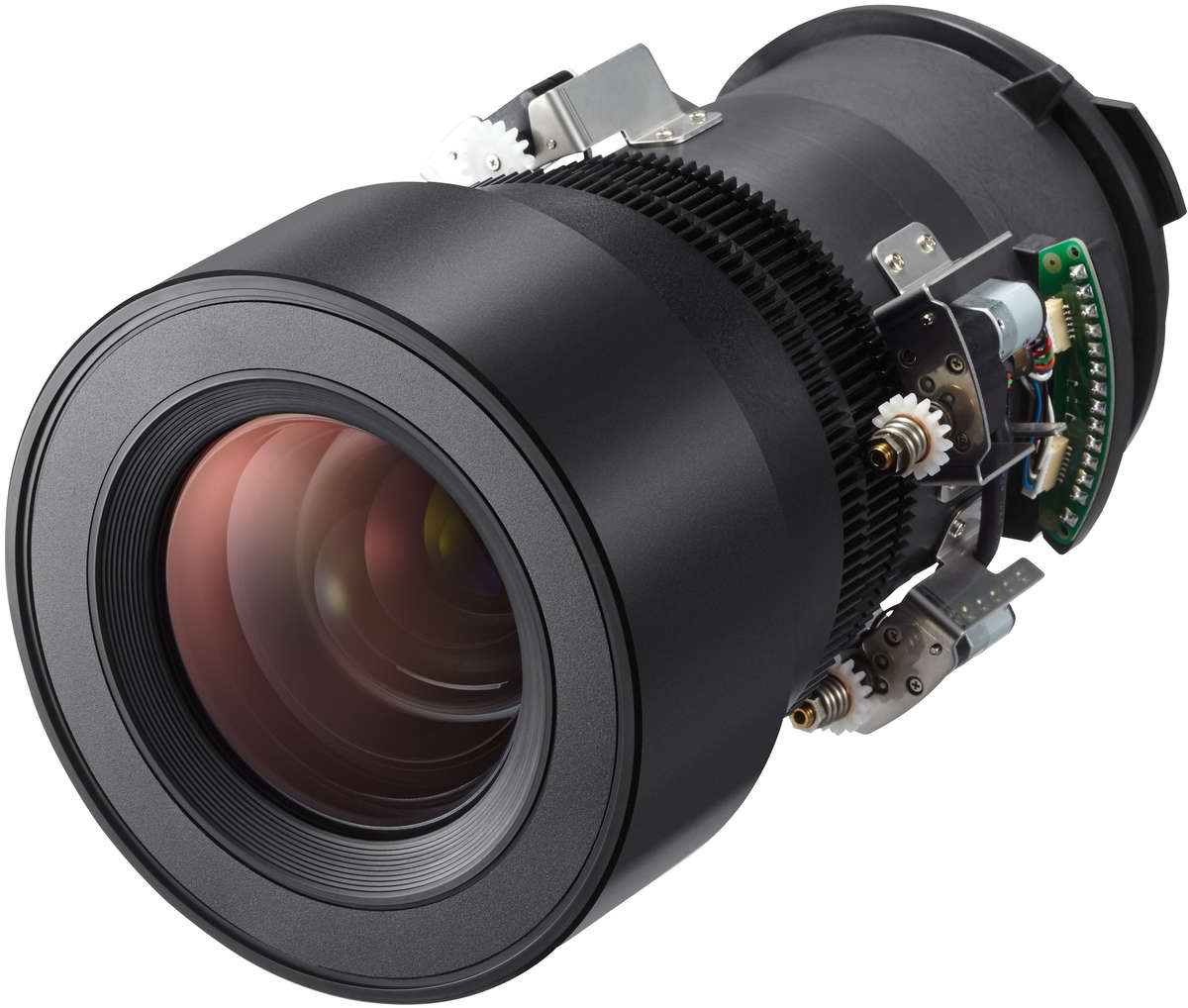

NEC PA703UL/NP41ZL Optional Lenses
| Description | Price | Inc. VAT |
| NEC NP40ZL Motorized Ultra Short Throw Zoom Lens | £974 | £1168.80 |
| NEC NP41ZL Motorized Mid to Semi Long Throw Lens | £401 | £481.20 |
| NEC NP43ZL Motorized Semi Long Throw Zoom Lens | £758 | £909.60 |
NEC PA703UL/NP41ZL Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
NEC PA703UL/NP41ZL Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1007B | LCD | 7000 | 15.4 | £4464 | £5356.80 |
| Epson EB-PU1007W | LCD | 7000 | 15.4 | £4463 | £5355.60 |
| Barco G60-W7 | DLP | 6300 | 16.9 | £6253 | £7503.60 |
| Barco G60-W7-WH | DLP | 6300 | 16.9 | £5211 | £6253.20 |
| Christie DWU630-GS-BK | DLP | 6750 | 15.85 | £4262 | £5114.40 |
| Christie DWU630-GS-WH | DLP | 6750 | 15.85 | £4262 | £5114.40 |
| Panasonic PT-MZ780BEJ | LCD | 7000 | 17.6 | £4765 | £5718.00 |
| Panasonic PT-MZ780WEJ | LCD | 7000 | 17.6 | £3443 | £4131.60 |
| Panasonic PT-MZ880BEJ | LCD | 7000 | 17.6 | £5242 | £6290.40 |
| Panasonic PT-MZ880WEJ | LCD | 7000 | 17.6 | £5242 | £6290.40 |
