Vivitek DU6771 Projector &
Vivitek D88-WZ01 Projector Lens

Vivitek DU6771 projector lens image

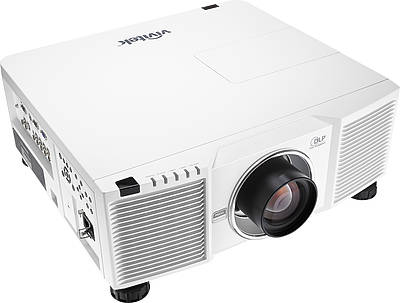

Vivitek DU6771

  • 6500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000:1 Contrast Ratio
  • 4500 hour lamp life (typical)
  • Lens Shift function
  • 18kg (39.7lb.)
  • 5 year Return to base warranty
  • Vivitek DU6771
Vivitek DU6771 & Vivitek D88-WZ01
Vivitek D88-WZ01 projector lens image

Vivitek D88-WZ01
Suitable For

Vivitek D88-WZ01 Lens Only
£1832 (£2198.40 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.50m 3.58m 241.55

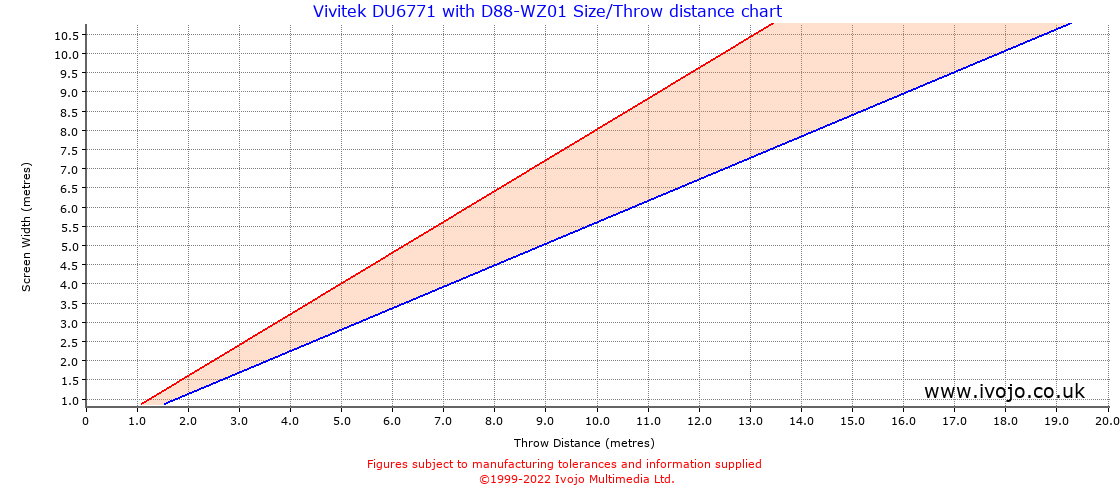

Throw Chard for Vivitek DU6771 fitted with Vivitek D88-WZ01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.62 0.90 0.14 sq.m. 4294.18
1.00 0.56 1.15 1.25 1.79 0.56 sq.m. 1073.55
1.50 0.84 1.72 1.88 2.69 1.27 sq.m. 477.13
2.00 1.12 2.29 2.50 3.58 2.25 sq.m. 268.39
2.50 1.41 2.87 3.12 4.47 3.52 sq.m. 171.77
3.00 1.69 3.44 3.75 5.37 5.06 sq.m. 119.28
4.00 2.25 4.59 5.00 7.16 9.00 sq.m. 67.10
5.00 2.81 5.74 6.25 8.95 14.06 sq.m. 42.94

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.56 0.80
2 1.12 1.60
3 1.68 2.40
4 2.23 3.20
5 2.79 4.00
6 3.35 4.80
7 3.91 5.60
8 4.47 6.40

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
