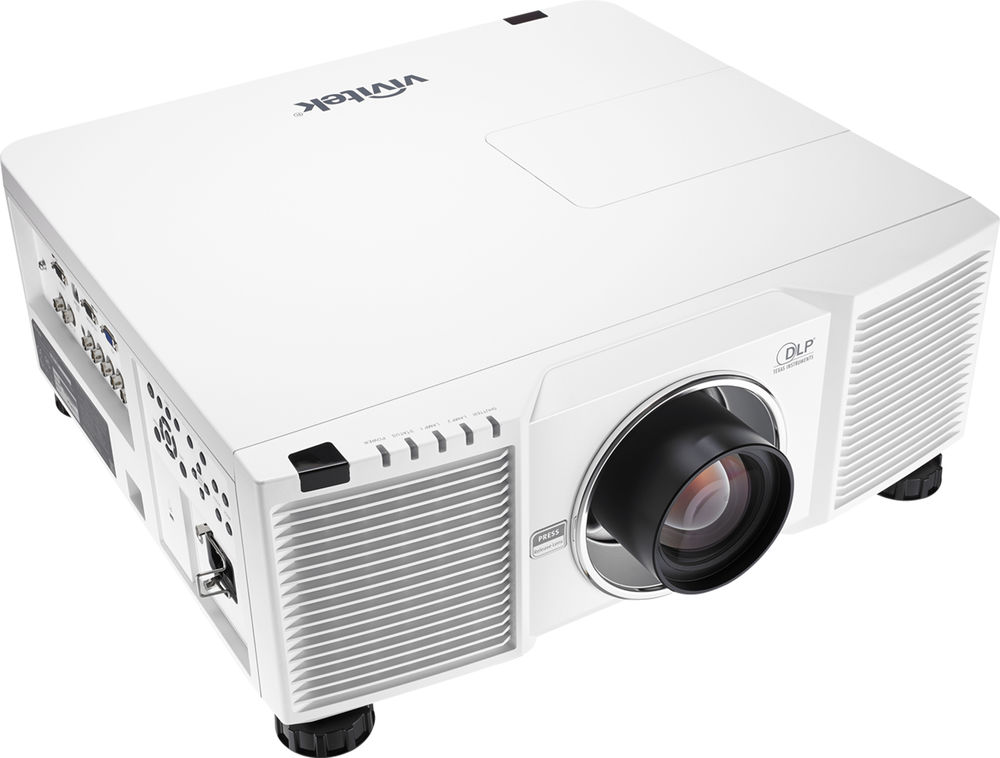

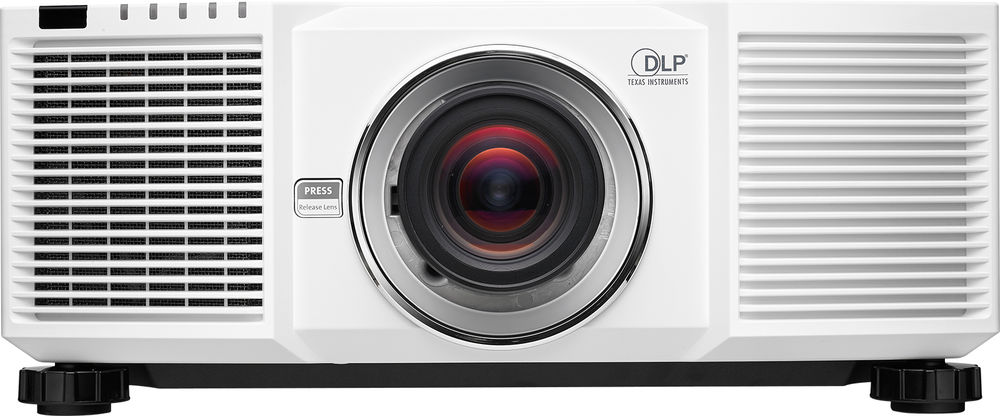

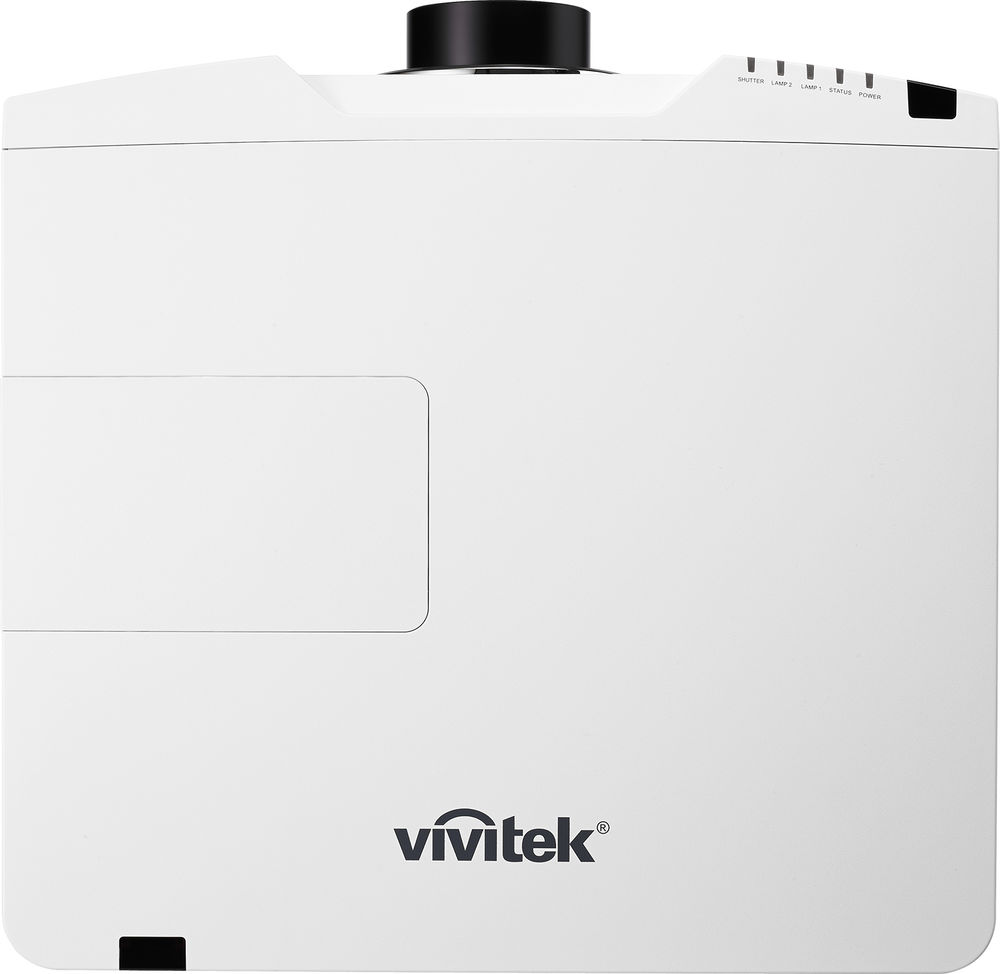

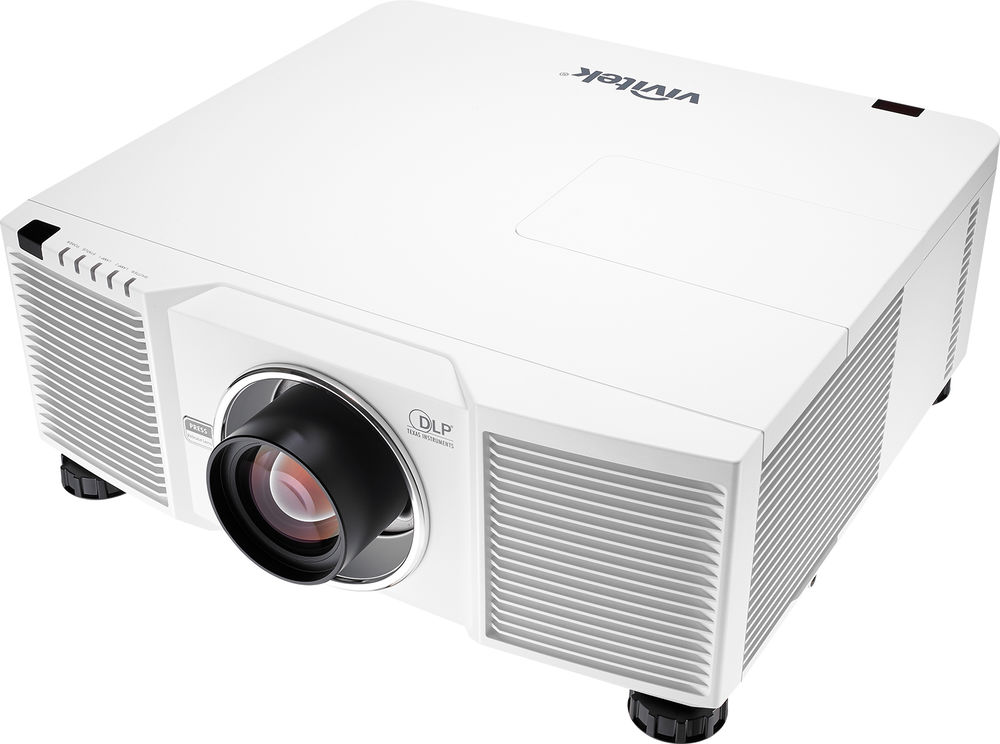

Vivitek DU6771 Projector

No Longer Available

Click for Current Vivitek range

Vivitek DU6771 Key Features

• DLP Display Technology
• 6,500 Lumens
• 0 Optional Lenses (Click Here)
• WUXGA 1920*1200 Native Resolution
• 4,500 hour lamp life (typical)
• 3,000:1 Contrast Ratio
• 18kg (39.7lb.)
• Available in black or white
• Native Widescreen
• Lens Shift
• 12v Trigger
• Horizontal & Vertical Keystone Correction
• HDBaseT
• Interchangeable Lens System
• Can Be Installed Vertically
• Lens-centred Design
• PIN Code Security
• 3D Projection Ready
• Network Control

Vivitek DU6771
Brochure

Instruction Manual

• Conference rooms (50 - 150 people)
• Exhibitions and large venues
• Horizontal Surface Projection
• Lecture Theatres
• School Halls

Vivitek DU6771 Specifications

Categories	HDBaseT Interchangeable Lens Lens Shift Installation HD
Manufacturer	Vivitek (Click for rest of range)
Vivitek DU6771 Optical Features
System	1 * 0.67" DMD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	6,500
Contrast	3,000:1
Lamp	2 * 300W
Lamp Life	4,500hrs. (5,000hrs. ECO mode)
Interchangeable	Yes
Image Size	30"-300" diagonal
Lens Shift	Vertical: +64 -33% Horizontal: +14% -24%
KeystoneCorrection	±30° (Vertical)
	±30° (Horizontal)
Vivitek DU6771 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

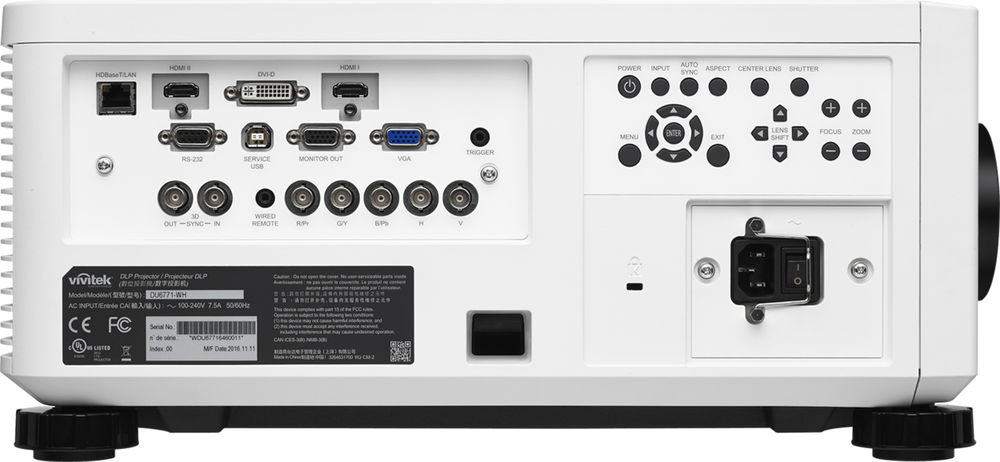

Vivitek DU6771 Terminals
DVI	1
HDMI	2
RGBHV (15-pin HD)	1
RGBHV (BNC/RCA)	1
S-Video	1
Composite	1
USB	2
RS-232	1
HDBaseT	1
12v Trigger	Yes
Network Ready	Yes
Vivitek DU6771 General
Speakers	No
Remote Control	Vivitek DU6771 only
Noise	35db (30db ECO mode)
Dimensions	510*210*470mm (W*H*D)
Weight	18.00kg
Power Supply	100-240V AC; 50-60Hz
Manufacturers Warranty	5 year Return to base
Light Source Warranty	1 year/1000 hours (whichever first)
Vivitek DU6771 Package Contents
Accessories	VGA Cable User Manual (CD) Warranty Card (by region) Remote Controller (with battery) AC Power Cord

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DU6771 Optional Lenses

Description	Price	Inc. VAT
Vivitek D88-UST01B Ultra Short Throw Mirror Lens	£4253	£5103.60
Vivitek D88-UWZ01 Ultra Short Throw Zoom Lens	£2207	£2648.40
Vivitek D88-WF18501 Short Throw Fixed Lens	£1832	£2198.40
Vivitek D88-WZ01 Short Throw Zoom Lens	£1832	£2198.40
Vivitek D88-ST001 Standard Zoom Lens	£690	£828.00
Vivitek D88-SMLZ01 Semi Long Zoom Lens	£1832	£2198.40
Vivitek D88-LOZ101 Long Throw Zoom Lens	£1832	£2198.40
Vivitek D88-LOZ201 Long Throw Zoom Lens	£1832	£2198.40
