Panasonic PT-MZ11KLWEJ Projector &
Panasonic ET-EMS650 Projector Lens

Panasonic PT-MZ11KLWEJ

  • 11000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 22.5kg (49.6lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-MZ11KLWEJ
Panasonic PT-MZ11KLWEJ & Panasonic ET-EMS650
£11826 (£14191.20 inc. VAT)
Availability: Please Call
Panasonic ET-EMS650 Lens Only
£1773 (£2127.60 inc. VAT)
Availability: 3-5 days

Select a Screen

Min. Throw Max Throw Foot Lamberts
2.70m 4.20m 408.77

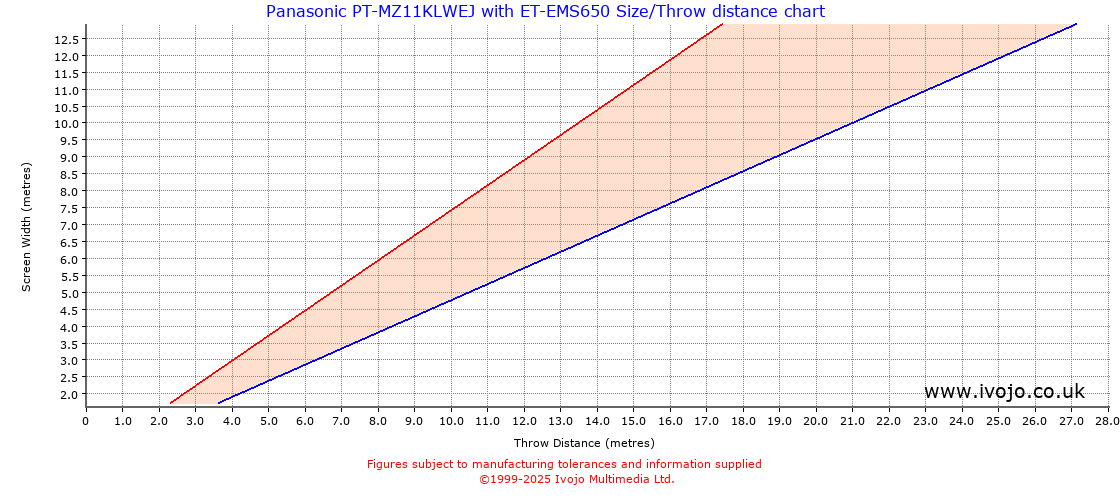

Throw Chard for Panasonic PT-MZ11KLWEJ fitted with Panasonic ET-EMS650

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.68 1.05 0.14 sq.m. 7267.08
1.00 0.56 1.15 1.35 2.10 0.56 sq.m. 1816.77
1.50 0.84 1.72 2.03 3.15 1.27 sq.m. 807.45
2.00 1.12 2.29 2.70 4.20 2.25 sq.m. 454.19
2.50 1.41 2.87 3.38 5.25 3.52 sq.m. 290.68
3.00 1.69 3.44 4.05 6.30 5.06 sq.m. 201.86
4.00 2.25 4.59 5.40 8.40 9.00 sq.m. 113.55
5.00 2.81 5.74 6.75 10.50 14.06 sq.m. 72.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.48 0.74
2 0.95 1.48
3 1.43 2.22
4 1.90 2.96
5 2.38 3.70
6 2.86 4.44
7 3.33 5.19
8 3.81 5.93

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
