Panasonic PT-MZ680WEJ Projector &
Panasonic ET-ELW20 Projector Lens

Panasonic PT-MZ680WEJ projector lens image

Panasonic PT-MZ680WEJ

  • 6000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 year return to base warranty
  • Panasonic PT-MZ680WEJ
Panasonic PT-MZ680WEJ & Panasonic ET-ELW20
£5440 (£6528.00 inc. VAT)
Availability: Please Call
Panasonic ET-ELW20 projector lens image

Panasonic ET-ELW20
Suitable For

Panasonic ET-ELW20 Lens Only
£1286 (£1543.20 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.42m 3.32m 222.97

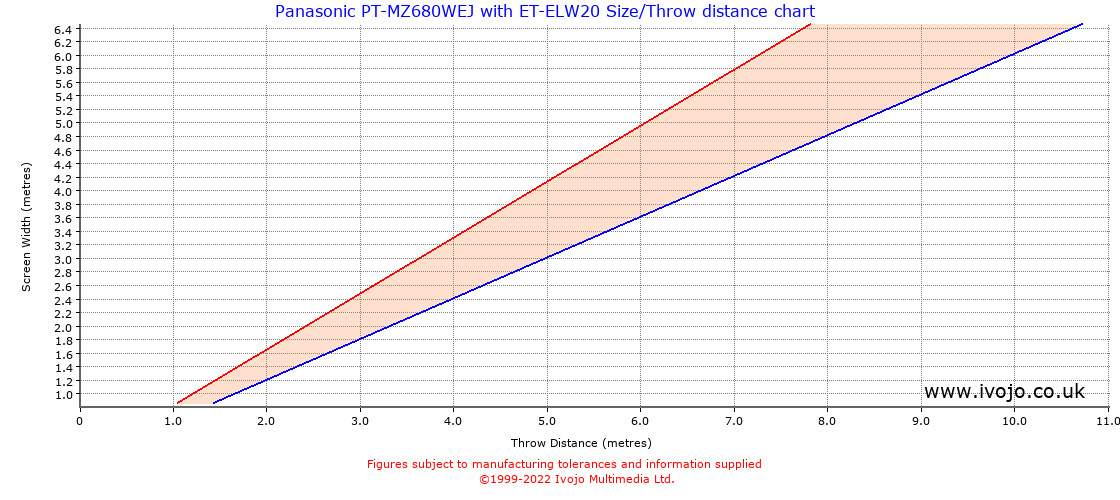

Throw Chard for Panasonic PT-MZ680WEJ fitted with Panasonic ET-ELW20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.60 0.83 0.14 sq.m. 3963.86
1.00 0.56 1.15 1.21 1.66 0.56 sq.m. 990.97
1.50 0.84 1.72 1.81 2.49 1.27 sq.m. 440.43
2.00 1.12 2.29 2.42 3.32 2.25 sq.m. 247.74
2.50 1.41 2.87 3.02 4.15 3.52 sq.m. 158.55
3.00 1.69 3.44 3.63 4.98 5.06 sq.m. 110.11
4.00 2.25 4.59 4.84 6.64 9.00 sq.m. 61.94
5.00 2.81 5.74 6.05 8.30 14.06 sq.m. 39.64

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.60 0.83
2 1.20 1.65
3 1.81 2.48
4 2.41 3.31
5 3.01 4.13
6 3.61 4.96
7 4.22 5.79
8 4.82 6.61

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
