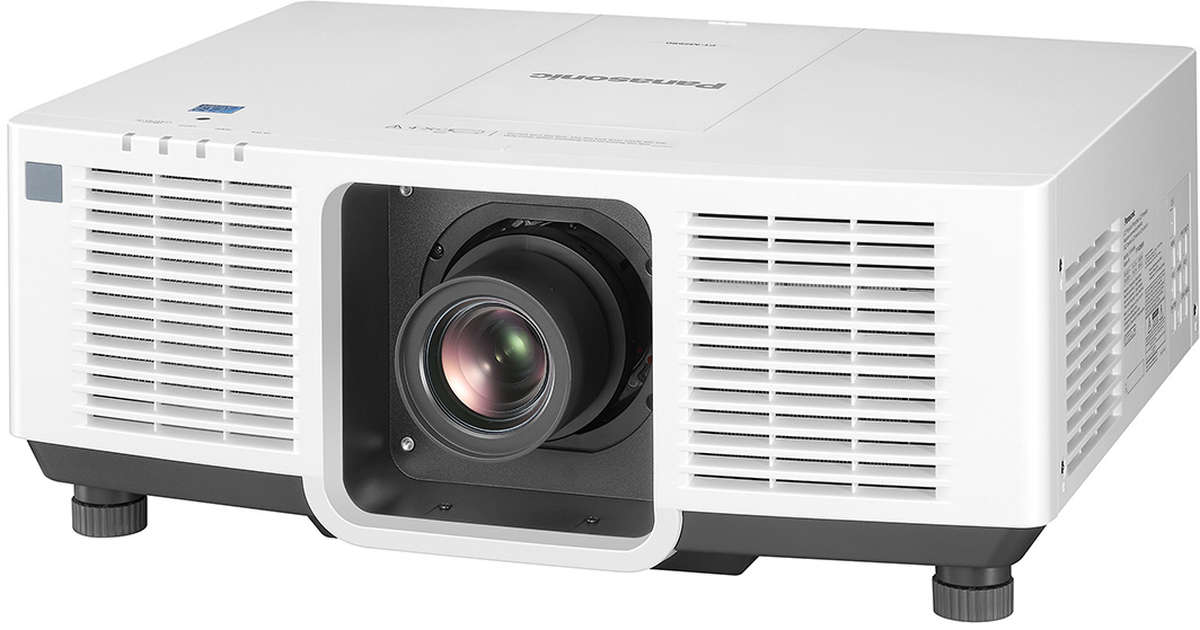

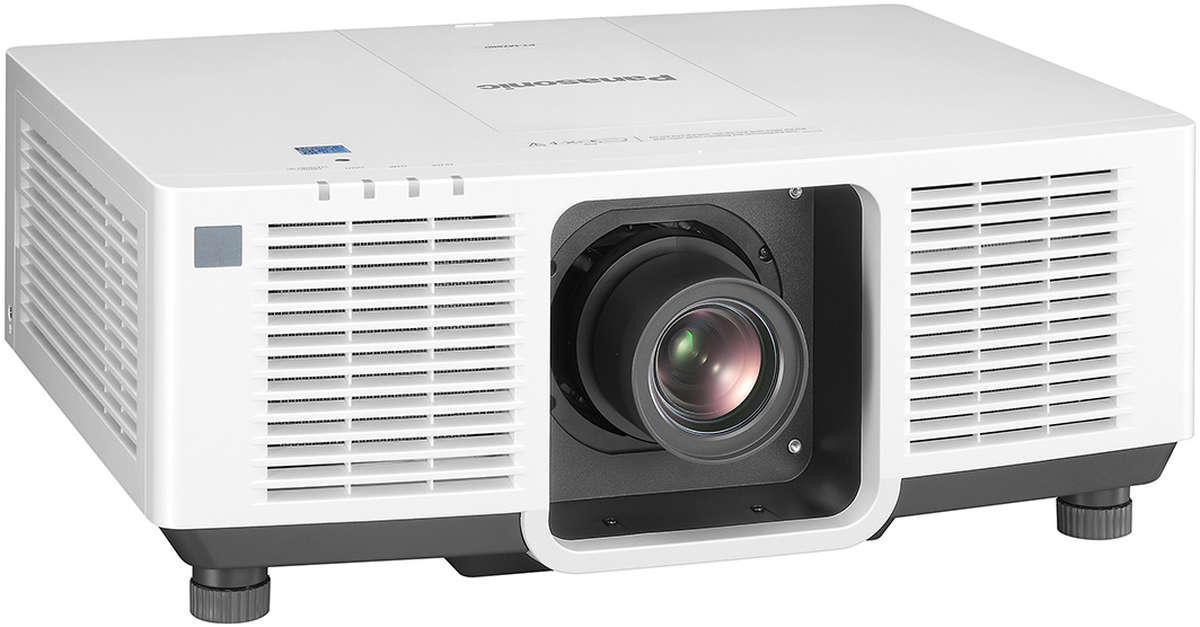

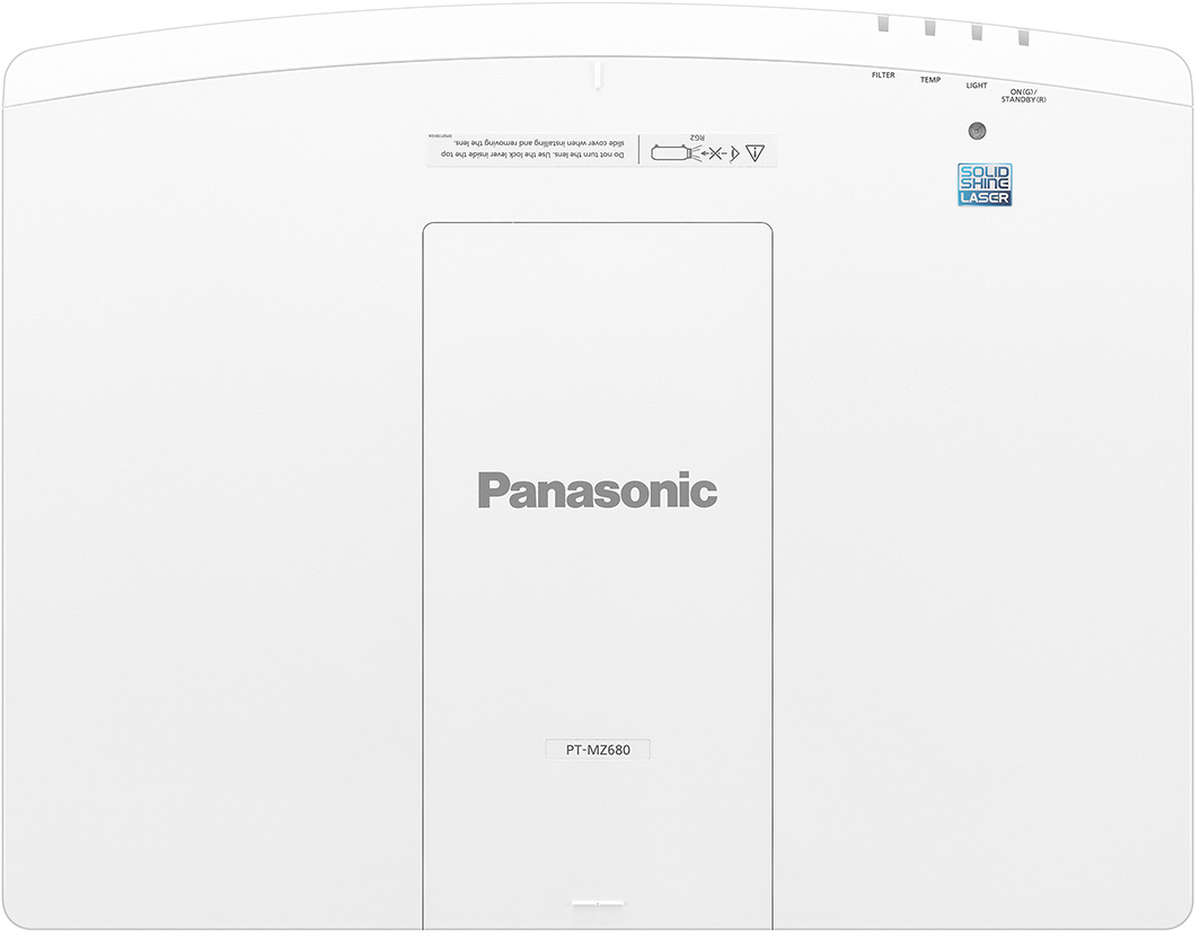

Panasonic PT-MZ680WEJ Projector
£4154 (£4984.80 inc. VAT)
Availability: Please Call
Availability: Please Call
Panasonic PT-MZ680WEJ Key Features
- LCD Display Technology
- 6000 Lumens Colour Light Output
- 5 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 3,000,000:1 Contrast Ratio
- 17.6kg (38.8lb.)
- Finished in White
- Wide zoom range for flexible placement
- 360° Installation
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Portrait Mode
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Quick Power On
- Quick Power Off
- Edge Blending
- Video Wall Function
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Exhibitions and large venues
- Horizontal Surface Projection
- Lecture Theatres
- LED/Laser
- Museums
- Portrait Mode Applications
- School Halls
Panasonic PT-MZ680WEJ Throw Chart (Click for details)
Panasonic PT-MZ680WEJ Specifications
| Categories | Installation HD Interchangeable Lens Lens Shift LED/Laser HD |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-MZ680WEJ Optical Features |
|
| System | 3 * 0.76 LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 6,000 |
| Colour Light Output | 6000 Lumens |
| Contrast | 3,000,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20,000hrs. (24,000hrs. ECO mode) |
| Lens | 1.7 x Powered Zoom and Focus |
| Interchangeable | Yes |
| Throw Ratio | 1.61 - 2.76:1 |
| Image Size | 40"-400" diagonal |
| Throw Distance | 1.36-23.97m |
| Throw distance for 100" image | 3.47 - 5.94m |
| Lens Shift | Vertical: ±67% Horizontal: ±35 % |
| Keystone |
±25° (Vertical) |
| ±30° (Horizontal) | |
Panasonic PT-MZ680WEJ Compatibility |
|
| Computer Resolutions | UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 4K, UHD, HD, 720p, PAL, SECAM, NTSC |

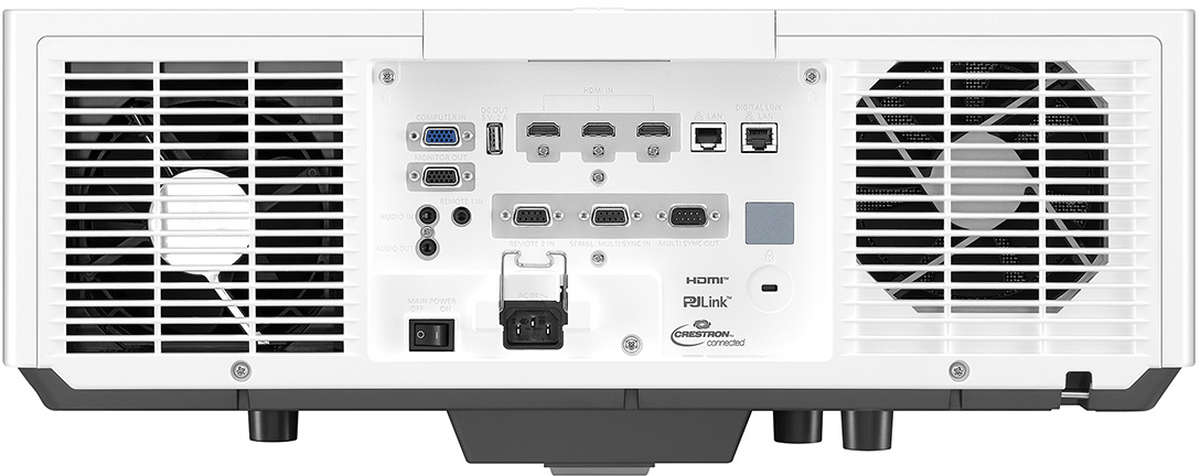

Panasonic PT-MZ680WEJ Terminals |
|
| HDMI | 3 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| Audio In | 1 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 3 |
| Network Ready | Yes |
Panasonic PT-MZ680WEJ General |
|
| Speakers | No |
| Remote Control | Panasonic PT-MZ680WEJ only |
| Noise | 32db (26db ECO mode) |
| Dimensions | 561*224*439mm (W*H*D) |
| Weight | 17.60kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 360Watts |
| Manufacturers Warranty | 3 year return to base |
| Light Source Warranty | 3 years/20000 hours (whichever first) |
Panasonic PT-MZ680WEJ Package Contents |
|
| Accessories | Wireless Remote Control + batteries 3m Power Cord Lens Cover |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-MZ680WEJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELU20 Ultra Short Throw Fixed Lens | £7424 | £8908.80 |
| Panasonic ET-ELW21 Fixed Short Throw Lens | £1286 | £1543.20 |
| Panasonic ET-ELW22 Ultra Short Throw Zoom Lens | Discontinued | |
| Panasonic ET-ELW20 Short Throw Zoom Lens | £1286 | £1543.20 |
| Panasonic ET-ELT22 Semi -Long Throw Zoom Lens | £1286 | £1543.20 |
| Panasonic ET-ELT23 Long Throw Zoom Lens | £1286 | £1543.20 |
Panasonic PT-MZ680WEJ Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Panasonic PT-MZ680WEJ Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1006W | LCD | 6000 | 15.4 | £3663 | £4395.60 |
| Barco G60-W7 | DLP | 6300 | 16.9 | £6253 | £7503.60 |
| Barco G60-W7-WH | DLP | 6300 | 16.9 | £5211 | £6253.20 |
| Fujifilm FP-Z6000-B | DLP | 6000 | 17.5 | £10642 | £12770.40 |
| Panasonic PT-FRZ60BEJ | DLP | 6000 | 16 | £4289 | £5146.80 |
| Panasonic PT-FRZ60WEJ | DLP | 6000 | 16 | £4289 | £5146.80 |
| Panasonic PT-MZ680BEJ | LCD | 6000 | 17.6 | £4154 | £4984.80 |
