Panasonic PT-DZ870EK Projector &
Panasonic ET-DLE250 Projector Lens

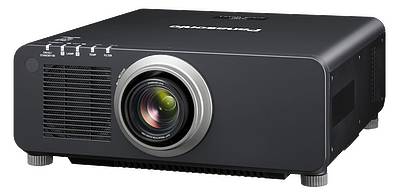

Panasonic PT-DZ870EK projector lens image

Panasonic PT-DZ870EK

  • 8500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 18.3kg (40.3lb.)
  • 1 year return to base warranty
  • Panasonic PT-DZ870EK
Panasonic PT-DZ870EK & Panasonic ET-DLE250
Panasonic ET-DLE250 projector lens image

Panasonic ET-DLE250
Suitable For

Panasonic ET-DLE250 Lens Only
£2499 (£2998.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.60m 7.20m 315.87
images/throw-chart/large/panasonic/panasonic-pt-dz870ek-et-dle250

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.15 1.80 0.14 sq.m. 5615.47
1.00 0.56 1.15 2.30 3.60 0.56 sq.m. 1403.87
1.50 0.84 1.72 3.45 5.40 1.27 sq.m. 623.94
2.00 1.12 2.29 4.60 7.20 2.25 sq.m. 350.97
2.50 1.41 2.87 5.75 9.00 3.52 sq.m. 224.62
3.00 1.69 3.44 6.90 10.80 5.06 sq.m. 155.99
4.00 2.25 4.59 9.20 14.40 9.00 sq.m. 87.74
5.00 2.81 5.74 11.50 18.00 14.06 sq.m. 56.15

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.28 0.43
2 0.56 0.87
3 0.83 1.30
4 1.11 1.74
5 1.39 2.17
6 1.67 2.61
7 1.94 3.04
8 2.22 3.48

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
