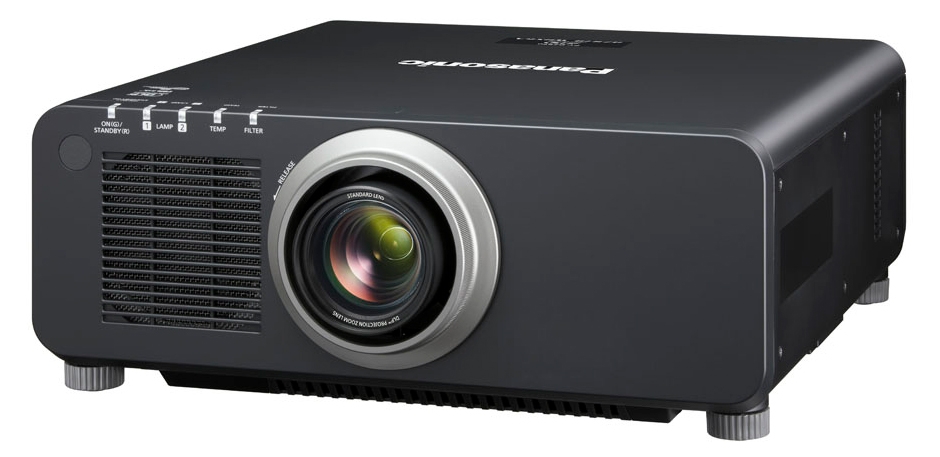

Panasonic PT-DZ870EK Projector

£10626 (£12751.20 inc. VAT)
Availability: Please Call

Panasonic PT-DZ870EK Key Features

  • DLP Display Technology
  • 8500 ANSI Lumens
  • 6 Optional Lenses (Click Here)
  • WUXGA 1920*1200 Native Resolution
  • 3000 hour lamp life (typical)
  • 10000:1 Contrast Ratio
  • 1 year return to base warranty
  • 18.3kg (40.3lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • HDCP Compliant DVI
  • Lens Shift
  • Curved Surface Projection
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Portrait Mode
  • Picture-In-Picture

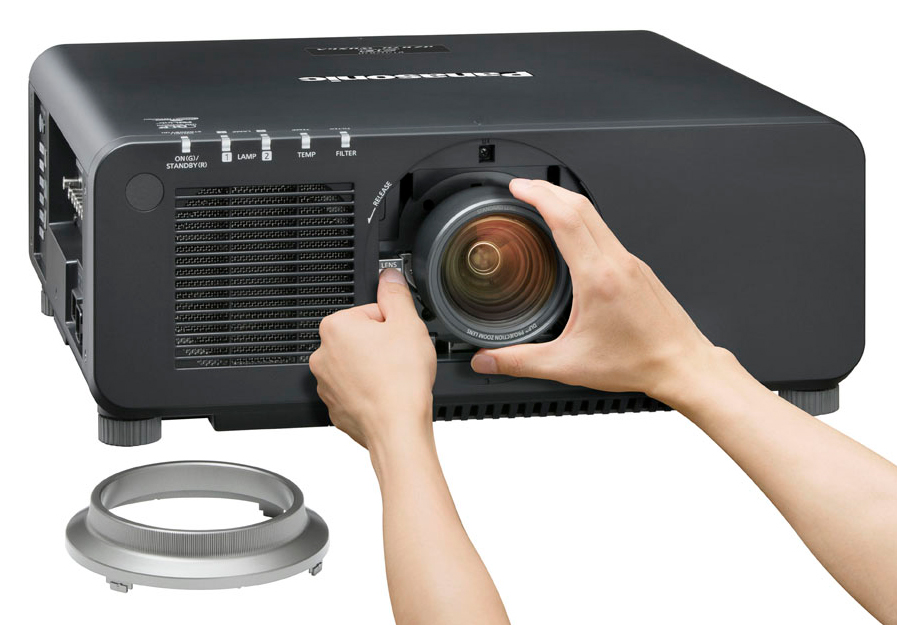

  • Interchangeable Lens System
  • 1080p/24FPS compatible
  • Can Be Installed Vertically
  • Lens-centred Design
  • Mechanical Shutter
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • Edge Blending
  • Video Wall Function
  • DICOM Simulation Mode
  • 3D Projection Ready
  • Motorised Zoom and Focus
  • sRGB Colour Mode
  • Network Control


Panasonic PT-DZ870EK Throw Chart (Click for details)

Panasonic PT-DZ870EK Specifications

Categories 3D Ready
Conference / Large Venue
Interchangeable Lens
Lens Shift
Wireless
Manufacturer Panasonic (Click for rest of range)

Panasonic PT-DZ870EK Optical Features

System 1 * 0.67" DMD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
ANSI Lumens 8500
Contrast 10000:1
Lamp 2x420W UHM
Lamp Life 3000hrs. (4000hrs. ECO mode)
Lens Motorised zoom, focus and shift
Interchageable Yes
Throw Ratio 1.7 - 2.4:1
Image Size 50"-600" diagonal
Throw Distance 1.82-31.65m
Throw distance for 100" image 3.66 - 5.17m
Lens Shift Ver.50%; Hor.10%
Keystone Correction ±40° (Vertical)
±15° (Horizontal)

Panasonic PT-DZ870EK Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. 15-100kHz
Vertical Freq. 24-162Hz

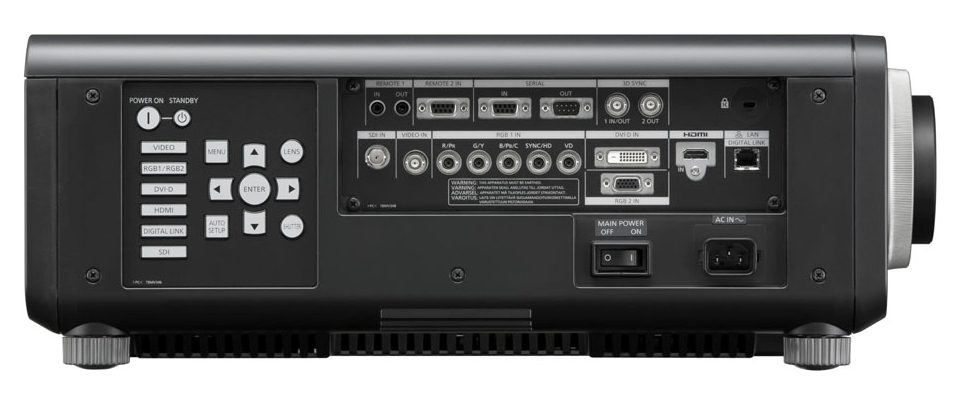

Panasonic PT-DZ870EK Terminals

DVI 1 (HDCP Compliant)
HDMI 1
RGBHV (15-pin HD) 1
RGBHV (BNC/RCA) 1
Composite 1
HD-SDI 1
RS-232 2
Network Ready Yes

Panasonic PT-DZ870EK General

Speakers No

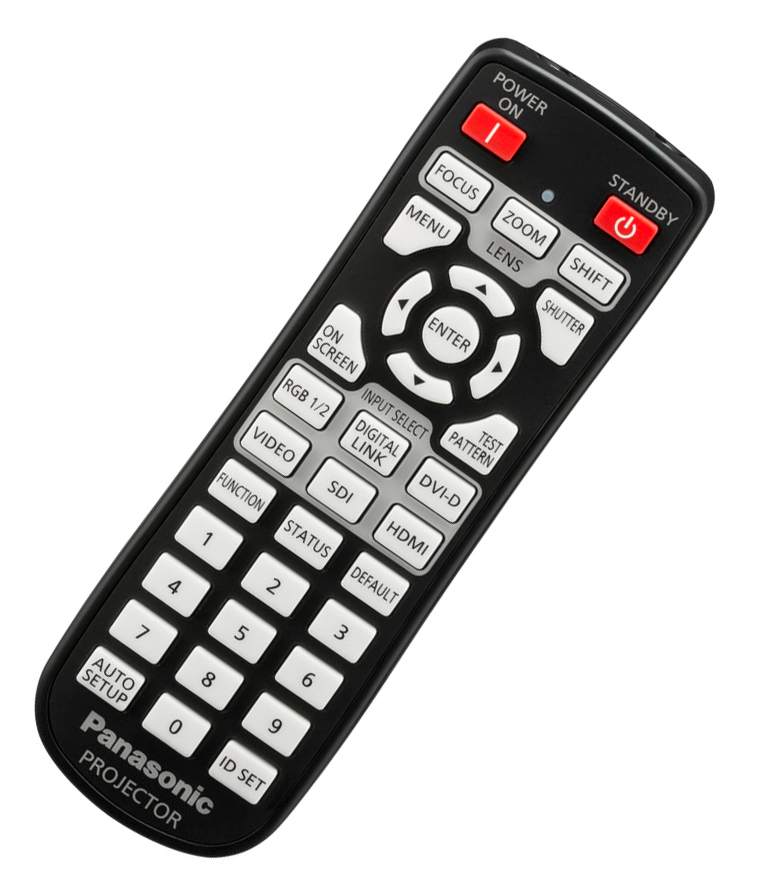

Remote Control Panasonic PT-DZ870EK only
Noise 40db (35db ECO mode)
Dimensions 498*200*556mm (W*H*D)
Weight 18.30kg
Power Supply 120-240 V AC, 10-5.2 A, 50/60 Hz
Power Consumption 1030Watts
Manufacturers Warranty 1 year return to base
Light Source Warranty 6 months/1000 hours (whichever first)

Panasonic PT-DZ870EK Package Contents

Accessories Power cord with secure lock
wireless/wired remote control unit
batteries (R03/AAA type x 2)
software CD-ROM (Logo Transfer Software
Multi Projector Monitoring & Control Software)

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.



Panasonic PT-DZ870EK Optional Lenses

Projector lens
Description Price Inc. VAT
Panasonic ET-DLE030 Ultra short throw mirror Lens Discontinued
Panasonic ET-DLE055 Ultra short throw fixed Lens £3920 £4704.00
Panasonic ET-DLE085 Ultra short throw zoom Lens £2417 £2900.40
Panasonic ET-DLE150 Short throw zoom Lens £1532 £1838.40
Panasonic ET-DLE250 Mid-range zoom Lens £1601 £1921.20
Panasonic ET-DLE350 Semi-long throw zoom Lens £1601 £1921.20
Panasonic ET-DLE450 Long throw zoom Lens £3239 £3886.80

Back To Top




Panasonic PT-DZ870EK Accessories

Description Price Inc. VAT
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg £220 £264.00



Panasonic PT-DZ870EK Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Optoma ZU860 DLP 8500 17.6 £8330 £9996.00
NEC PA803UL LCD 8000 18.2 £6478 £7773.60
Epson EB-L1300U LCD 8000 21 £6349 £7618.80
Hitachi CP-WU9410 DLP 8500 16.6 £7528 £9033.60
Maxell MP-WU8801B LCD 8000 18.2 £4999 £5998.80
Maxell MP-WU8801W LCD 8000 18.2 £4576 £5491.20
Panasonic PT-DZ870ELK DLP 8500 18.3 £10377 £12452.40
Panasonic PT-MZ770EJ LCD 8000 17.1 £6151 £7381.20
Panasonic PT-MZ770LBEJ LCD 8000 17.1 £6151 £7381.20
Panasonic PT-MZ770LEJ LCD 8000 17.1 £6151 £7381.20
