NEC PA703UL/NP41ZL Projector &
NEC NP43ZL Projector Lens

NEC PA703UL/NP41ZL projector lens image

NEC PA703UL/NP41ZL

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 18.2kg (40.1lb.)
  • 3 year loan support warranty
  • NEC PA703UL/NP41ZL
NEC PA703UL/NP41ZL & NEC NP43ZL
NEC NP43ZL projector lens image

NEC NP43ZL
Suitable For

NEC NP43ZL Lens Only
£758 (£909.60 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
5.90m 11.80m 260.13

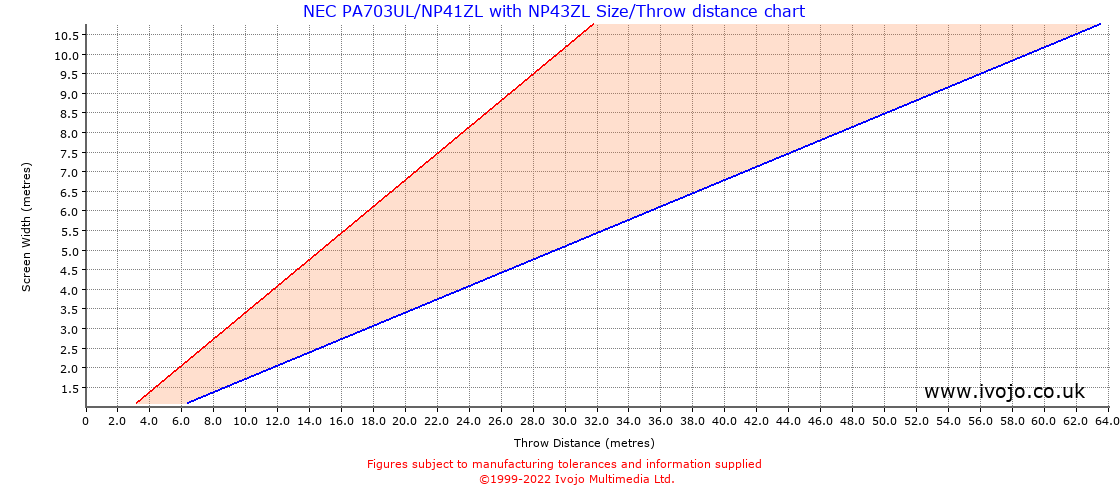

Throw Chard for NEC PA703UL/NP41ZL fitted with NEC NP43ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.48 2.95 0.14 sq.m. 4624.51
1.00 0.56 1.15 2.95 5.90 0.56 sq.m. 1156.13
1.50 0.84 1.72 4.43 8.85 1.27 sq.m. 513.83
2.00 1.12 2.29 5.90 11.80 2.25 sq.m. 289.03
2.50 1.41 2.87 7.38 14.75 3.52 sq.m. 184.98
3.00 1.69 3.44 8.85 17.70 5.06 sq.m. 128.46
4.00 2.25 4.59 11.80 23.60 9.00 sq.m. 72.26
5.00 2.81 5.74 14.75 29.50 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.17 0.34
2 0.34 0.68
3 0.51 1.02
4 0.68 1.36
5 0.85 1.69
6 1.02 2.03
7 1.19 2.37
8 1.36 2.71

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
