NEC PA703UL Projector &
NEC NP40ZL Projector Lens

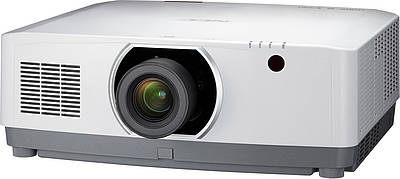

NEC PA703UL
- 7000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 2500000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 18.2kg (40.1lb.)
- 3 year loan support warranty
- NEC PA703UL
NEC PA703UL & NEC NP40ZL
NEC NP40ZL Lens Only
£974 (£1168.80 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
1.58m | 2.22m | 260.13 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.40 | 0.56 | 0.14 sq.m. | 4624.51 |
| 1.00 | 0.56 | 1.15 | 0.79 | 1.11 | 0.56 sq.m. | 1156.13 |
| 1.50 | 0.84 | 1.72 | 1.19 | 1.67 | 1.27 sq.m. | 513.83 |
| 2.00 | 1.12 | 2.29 | 1.58 | 2.22 | 2.25 sq.m. | 289.03 |
| 2.50 | 1.41 | 2.87 | 1.98 | 2.78 | 3.52 sq.m. | 184.98 |
| 3.00 | 1.69 | 3.44 | 2.37 | 3.33 | 5.06 sq.m. | 128.46 |
| 4.00 | 2.25 | 4.59 | 3.16 | 4.44 | 9.00 sq.m. | 72.26 |
| 5.00 | 2.81 | 5.74 | 3.95 | 5.55 | 14.06 sq.m. | 46.25 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

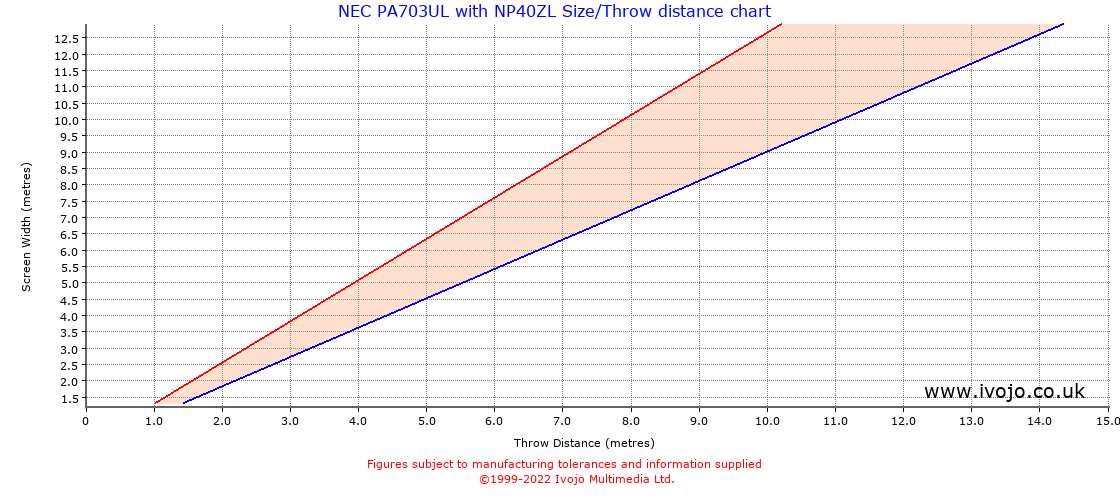

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.90 | 1.27 |
| 2 | 1.80 | 2.53 |
| 3 | 2.70 | 3.80 |
| 4 | 3.60 | 5.06 |
| 5 | 4.50 | 6.33 |
| 6 | 5.41 | 7.59 |
| 7 | 6.31 | 8.86 |
| 8 | 7.21 | 10.13 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
