NEC PA703UL Projector

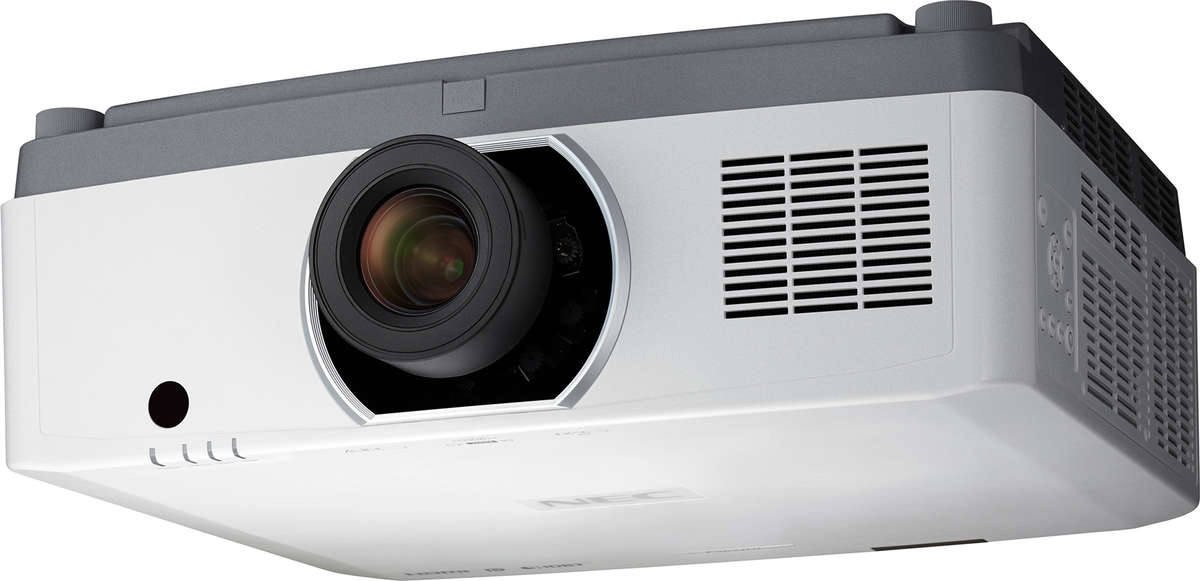

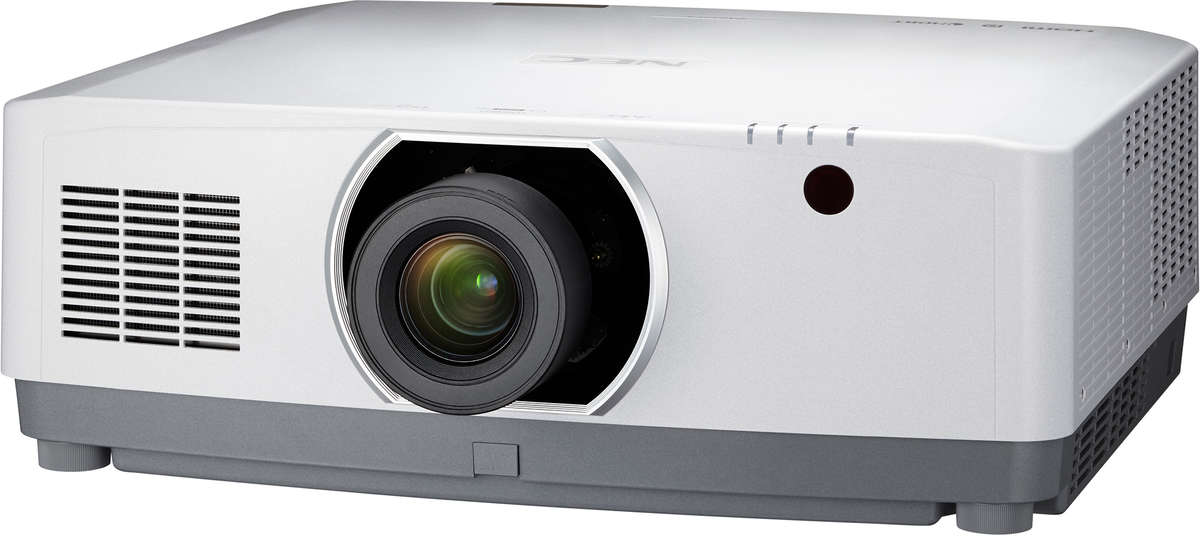

NEC PA703UL 7000 Lumens WUXGA projector product image. Click to enlarge.

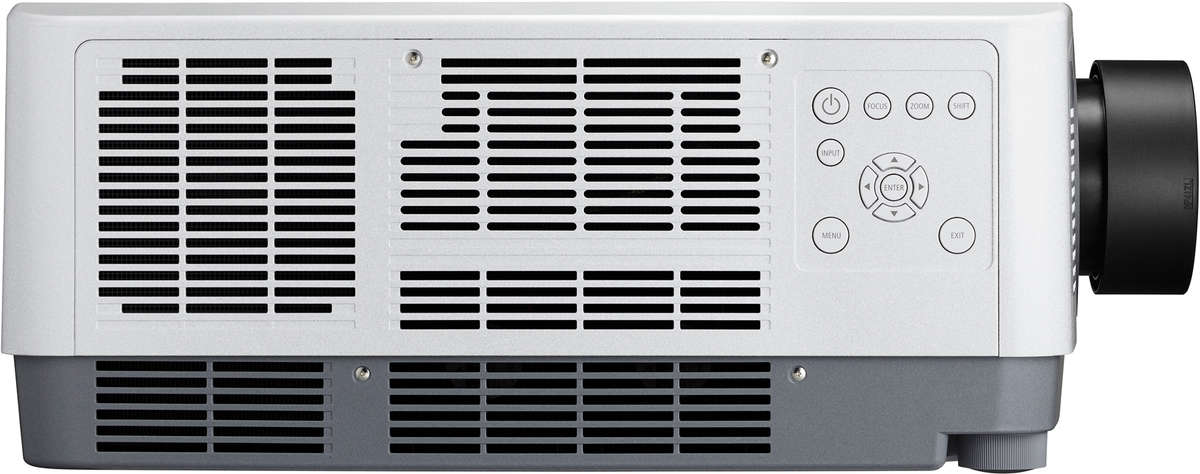

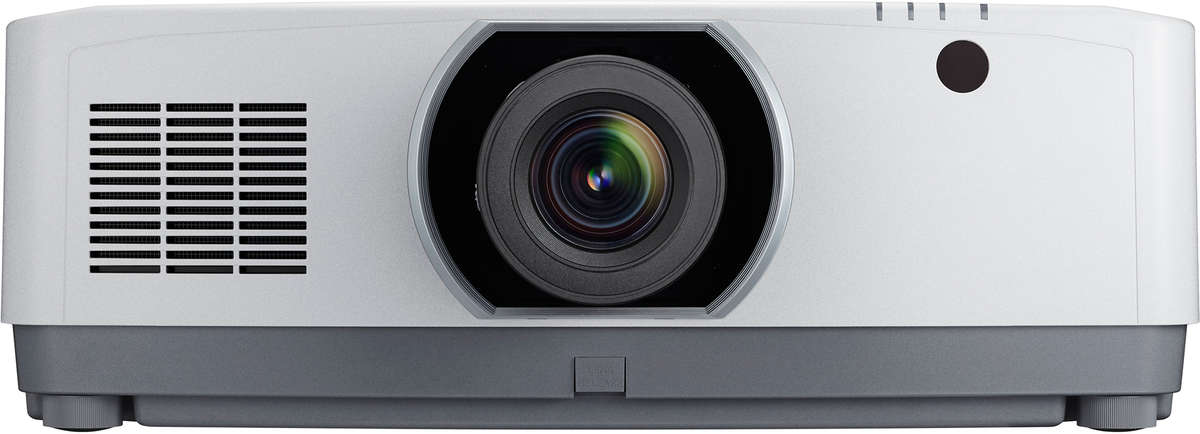

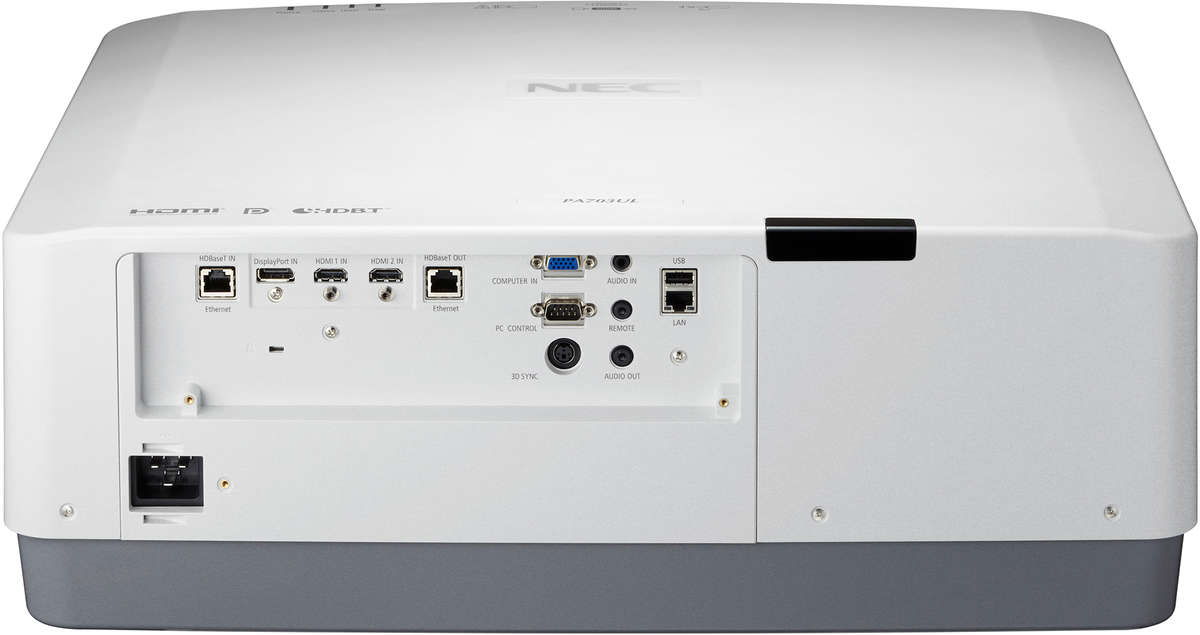

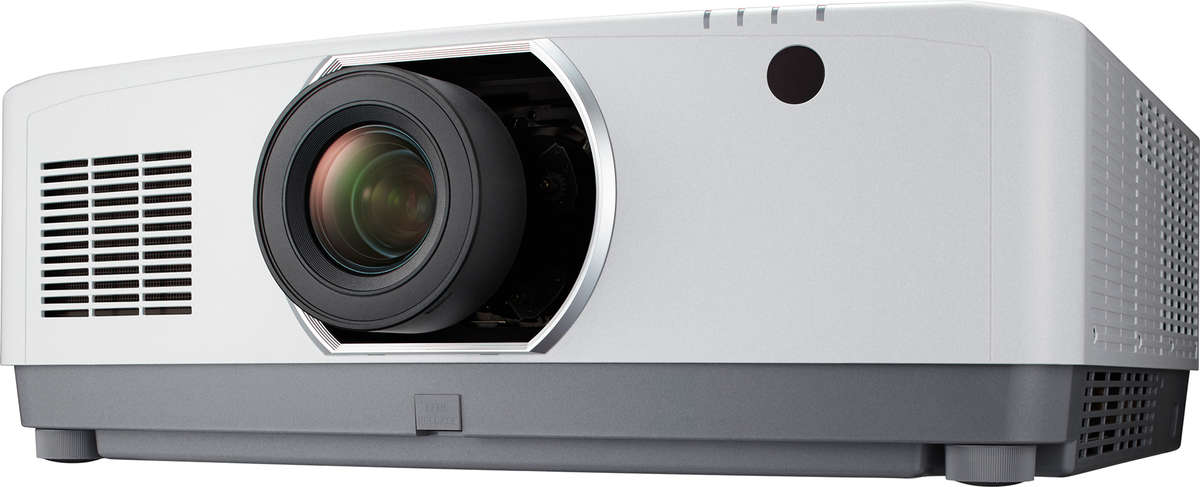

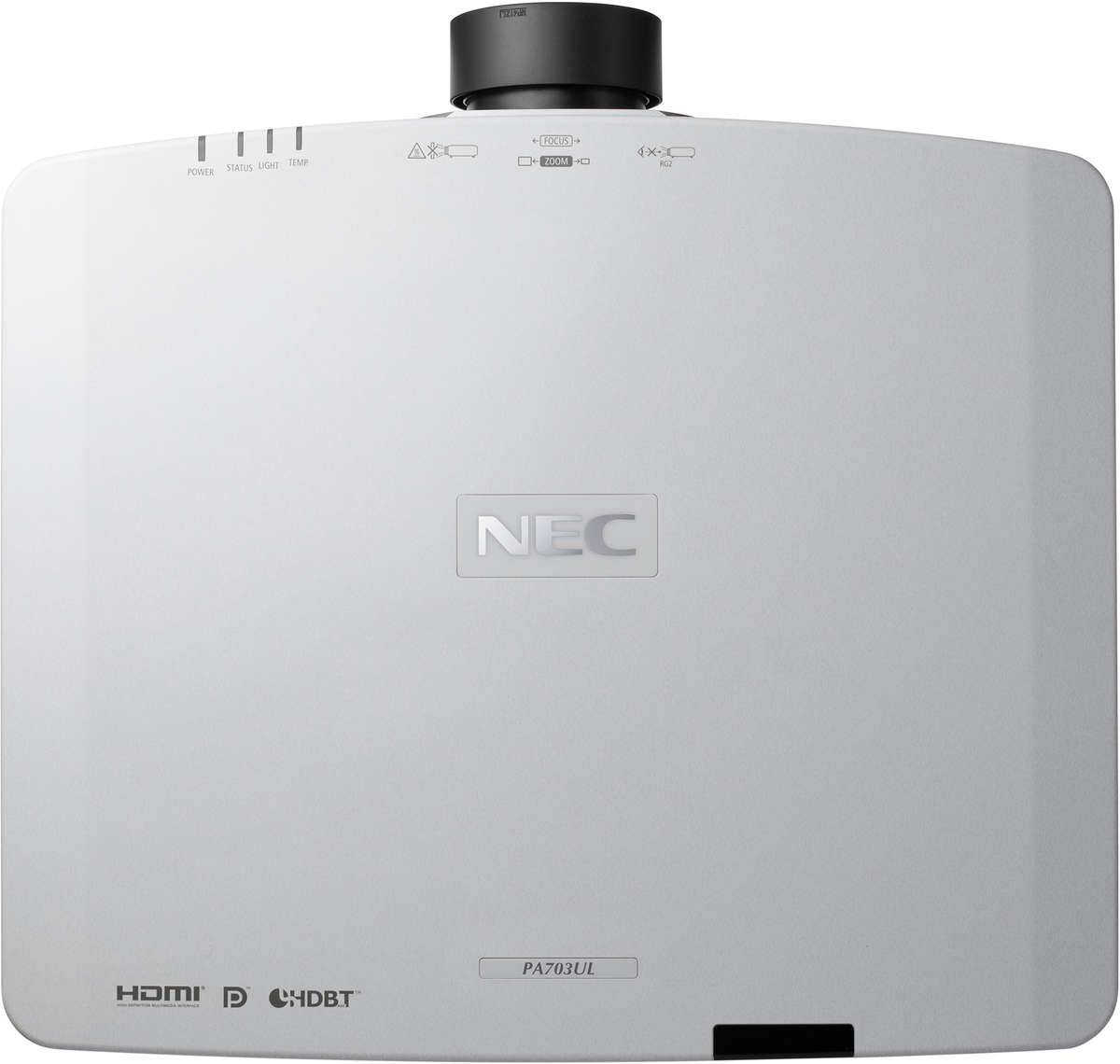

NEC PA703UL 7000 Lumens WUXGA projector product image NEC PA703UL 7000 Lumens WUXGA projector product image NEC PA703UL 7000 Lumens WUXGA projector connectivity (terminals) product image NEC PA703UL 7000 Lumens WUXGA projector product image NEC PA703UL 7000 Lumens WUXGA projector product image NEC PA703UL 7000 Lumens WUXGA projector product image NEC PA703UL 7000 Lumens WUXGA projector product image
No Longer Available

Click for Current NEC range

NEC PA703UL Key Features

  • LCD Display Technology
  • 7000 Lumens Colour Light Output
  • 0 Optional Lenses (Click Here)
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 2,500,000:1 Contrast Ratio
  • 18.2kg (40.1lb.)
  • Native Widescreen
  • Lens Shift
  • Seamless Switching
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Mouse Emulation Remote
  • Portrait Mode
  • HDBaseT
  • Picture-In-Picture
  • Picture-and-Picture
  • Interchangeable Lens System
  • Lens-centred Design
  • Logo capture and display
  • PIN Code Security
  • Edge Blending
  • Video Wall Function
  • DICOM Simulation Mode
  • 3D Projection Ready
  • Stacking Function
  • Monitor Out
  • Network Control

NEC PA703UL Downloads


NEC PA703UL Specifications

Categories 3D Ready
Conference / Large Venue
HDBaseT
Interchangeable Lens
Lens Shift
Installation HD
LED/Laser HD
Manufacturer NEC (Click for rest of range)

NEC PA703UL Optical Features
System 3 * LCD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 7,000
ECO Mode Lumens 5,600
Colour Light Output 7000 Lumens
Eco Mode CLO 5600 Lumens
Contrast 2,500,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (20,000hrs. ECO mode)
Interchangeable Yes
Image Size 30"-300" diagonal
Lens Shift Vertical: 20/-0.1
Horizontal: +10/-50
KeystoneCorrection ±40° (Vertical)
±40° (Horizontal)

NEC PA703UL Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k
Video Resolutions PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p
Horizontal Freq. 15-100kHz
Vertical Freq. 15-153Hz

NEC PA703UL Terminals
HDMI 2
DisplayPort 1
RGBHV (15-pin HD) 1
Monitor Out Yes
Audio In 2
Audio Out 1
USB 1
RS-232 1
HDBaseT 1
Network Ready Yes

NEC PA703UL General
Speakers No
Remote Control NEC PA703UL + Mouse Emulation
Noise 39db (33db ECO mode)
Dimensions 580*208*494mm (W*H*D)
Weight 18.20kg
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption 774Watts
Manufacturers Warranty 3 year loan support
Light Source Warranty 6 months/1000 hours (whichever first)

NEC PA703UL Package Contents
Accessories Cable Cover (NP11CV); IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

Additional Features
Remote Control 3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Keystone Correction; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture
Special Characteristics 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; Digital 3D Reform; Free Tilt; Geometric Correction; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; LAN control; Lens Memory; Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OSD with 27 languages; PJ LINK; Rec2020 to Rec709 colour conversion; Seamless Switching; Test Pattern; Timer-Function; UHD player support; Virtual Remote for direct PC control

Green Features
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant

Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.

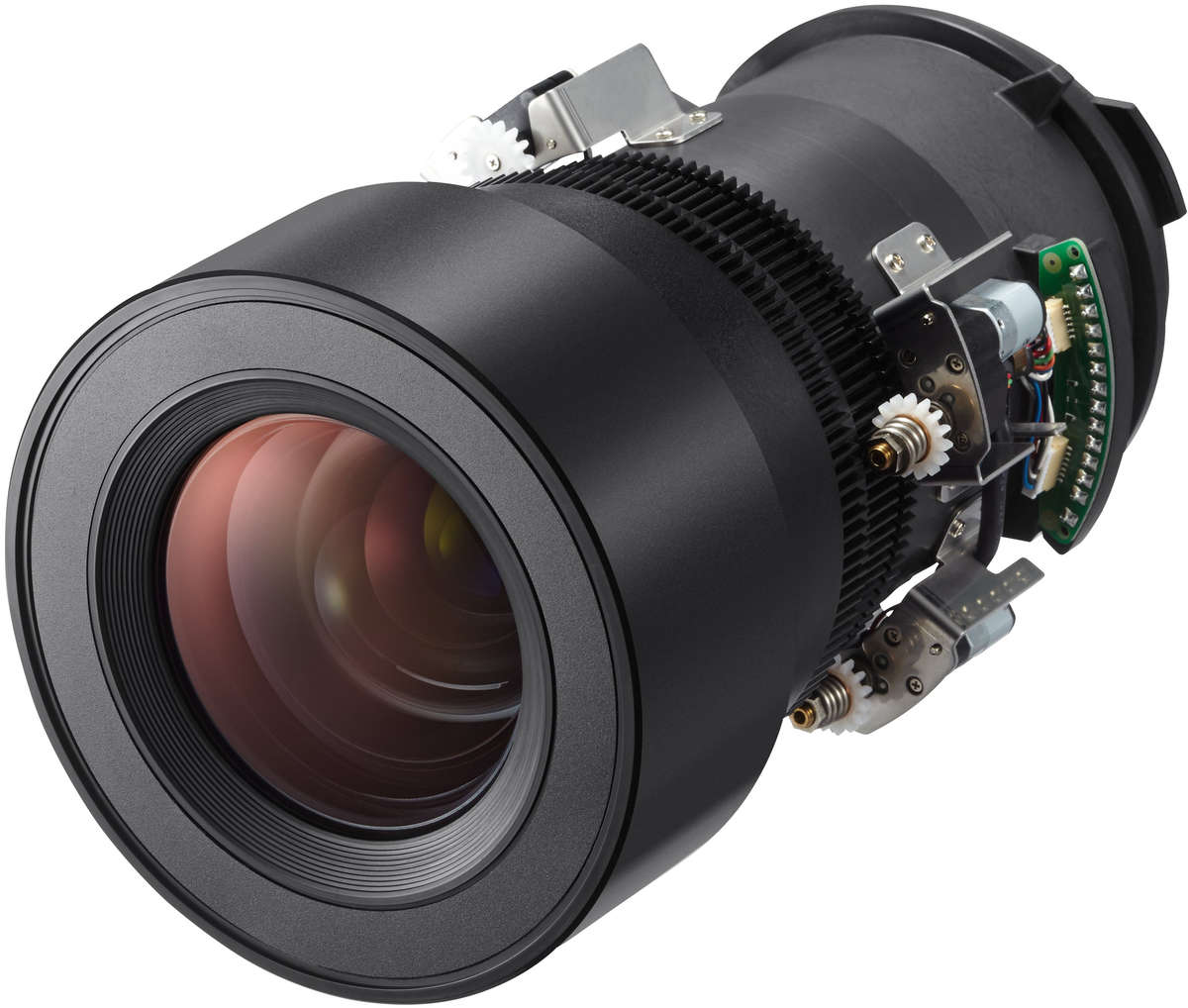

NEC PA703UL Optional Lenses

Projector lens
Description Price Inc. VAT
NEC NP40ZL Motorized Ultra Short Throw Zoom Lens £921 £1105.20
NEC NP41ZL Motorized Mid to Semi Long Throw Lens £393 £471.60
NEC NP43ZL Motorized Semi Long Throw Zoom Lens £743 £891.60
NEC NP42ZL Mid to Long Throw Zoom Lens Discontinued

Back To Top

NEC PA703UL Accessories

Description Price Inc. VAT
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg £167.00 £200.40
Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

NEC PA703UL Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Epson EB-PU1007B LCD 7000 15.4 £4367 £5240.40
Epson EB-PU1007W LCD 7000 15.4 £4366 £5239.20
Christie DWU630-GS-BK DLP 6750 15.85 £4243 £5091.60
Christie DWU630-GS-WH DLP 6750 15.85 £4243 £5091.60
Panasonic PT-RZ790BEJ DLP 7000 21.3 £8647 £10376.40
Panasonic PT-RZ790WEJ DLP 7000 21.3 £8647 £10376.40
