NEC PA703W Projector &
NEC NP12ZL Projector Lens
NEC PA703W
- 7000 ANSI Lumens
- WXGA 1280*800 Native Resolution
- 8000:1 Contrast Ratio
- 4000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 year loan support warranty
- NEC PA703W
NEC PA703W & NEC NP12ZL
NEC NP12ZL Lens Only
£815 (£978.00 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
2.32m | 3.04m | 260.13 |

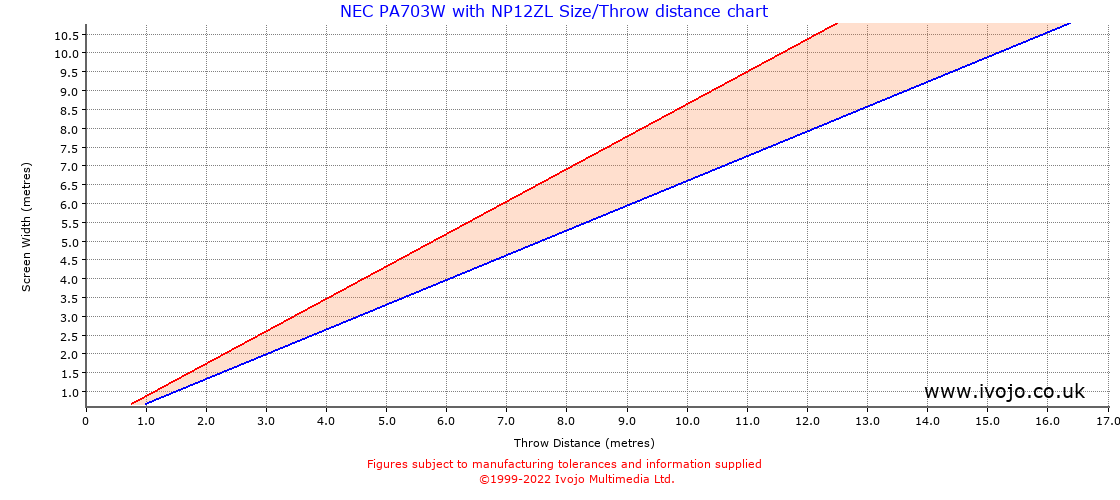

![Throw Chard for NEC PA703W fitted with NEC NP12ZL](images/throw-chart/large/nec/nec-pa703w-np12zl.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 0.58 | 0.76 | 0.14 sq.m. | 4624.51 |
1.00 | 0.56 | 1.15 | 1.16 | 1.52 | 0.56 sq.m. | 1156.13 |
1.50 | 0.84 | 1.72 | 1.74 | 2.28 | 1.27 sq.m. | 513.83 |
2.00 | 1.12 | 2.29 | 2.32 | 3.04 | 2.25 sq.m. | 289.03 |
2.50 | 1.41 | 2.87 | 2.90 | 3.80 | 3.52 sq.m. | 184.98 |
3.00 | 1.69 | 3.44 | 3.48 | 4.56 | 5.06 sq.m. | 128.46 |
4.00 | 2.25 | 4.59 | 4.64 | 6.08 | 9.00 sq.m. | 72.26 |
5.00 | 2.81 | 5.74 | 5.80 | 7.60 | 14.06 sq.m. | 46.25 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 0.66 | 0.86 |
2 | 1.32 | 1.72 |
3 | 1.97 | 2.59 |
4 | 2.63 | 3.45 |
5 | 3.29 | 4.31 |
6 | 3.95 | 5.17 |
7 | 4.61 | 6.03 |
8 | 5.26 | 6.90 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
